Discover GASBOX – OPABOX
Autopower
The analysis chambers for diesel and petrol engines

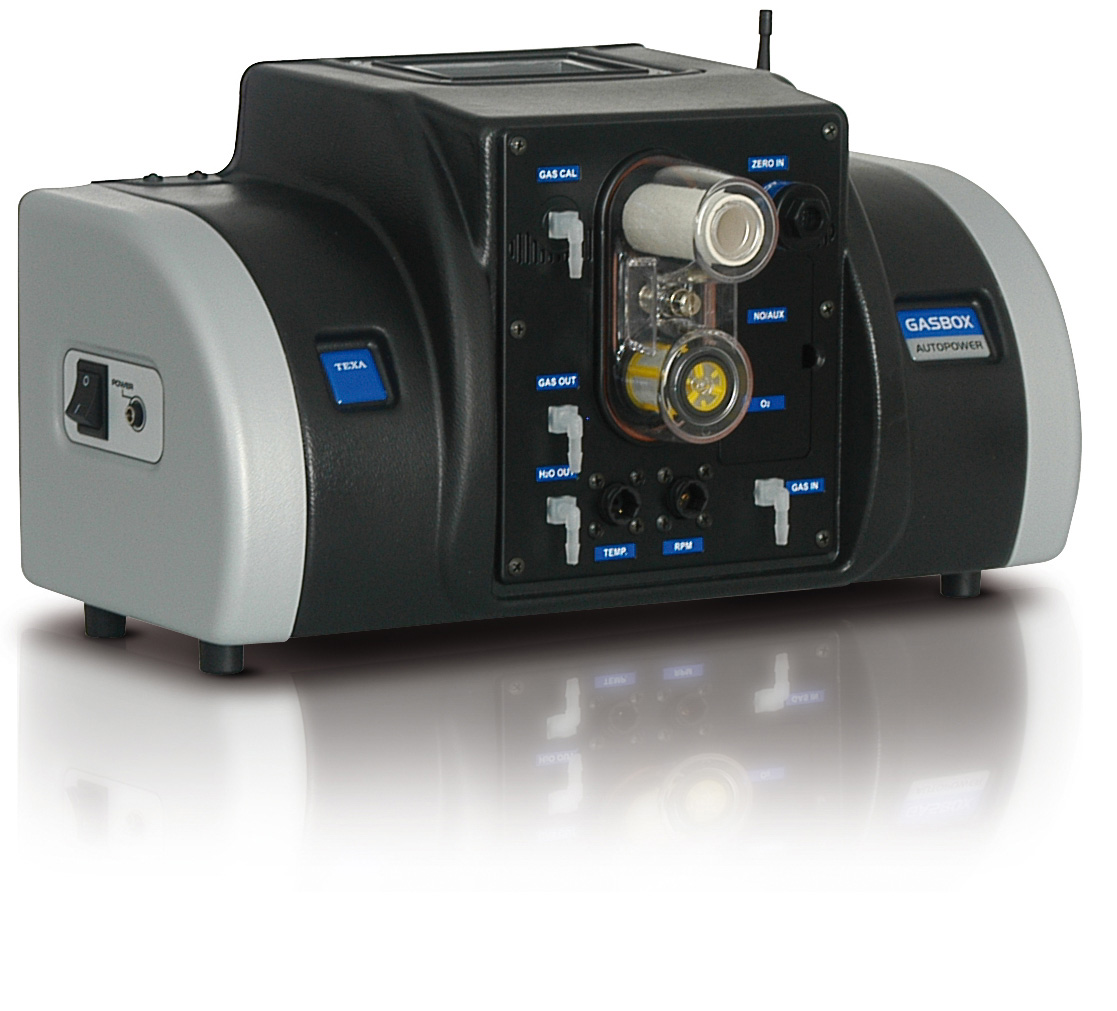

GASBOX Autopower
GASBOX Autopower is an exhaust gas analyser for petrol, LPG, and methane fuelled engines. It incorporates TEXA’s own analysis chamber and comes with a practical trolley for easy movement around the workshop.
To make it even more flexible, as well as being plugged into any standard mains power socket, GASBOX can also be used with Power Pack, a practical battery module that can be removed and recharged separately. This clever solution means that you can always have one or more batteries charged and ready for use.

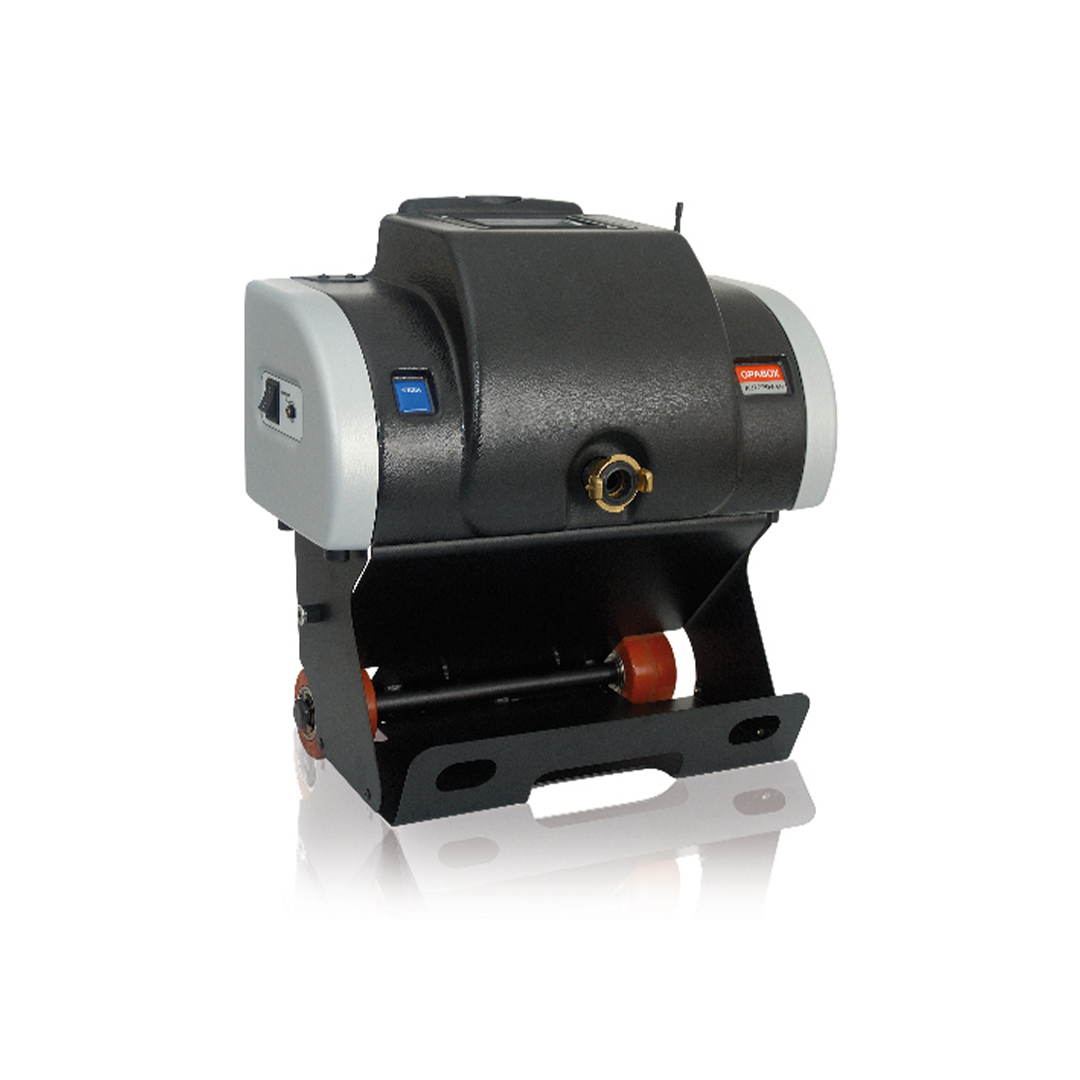

OPABOX Autopower
OPABOX Autopower is a partial flow opacity meter for diesel engines. It incorporates a latest generation exhaust gas analysis chamber developed to conform to international standards.
Thanks to Power Pack and Bluetooth technology, TEXA exhaust gas analysis solutions eliminate all those awkward cables trailing around the workshop, between the analysers and the display units, and between the analysers and the mains power supply too.
OPABOX Autopower is designed to be practical and versatile, and meets the full range of requirements of mechanics in the field of exhaust gas analysis.

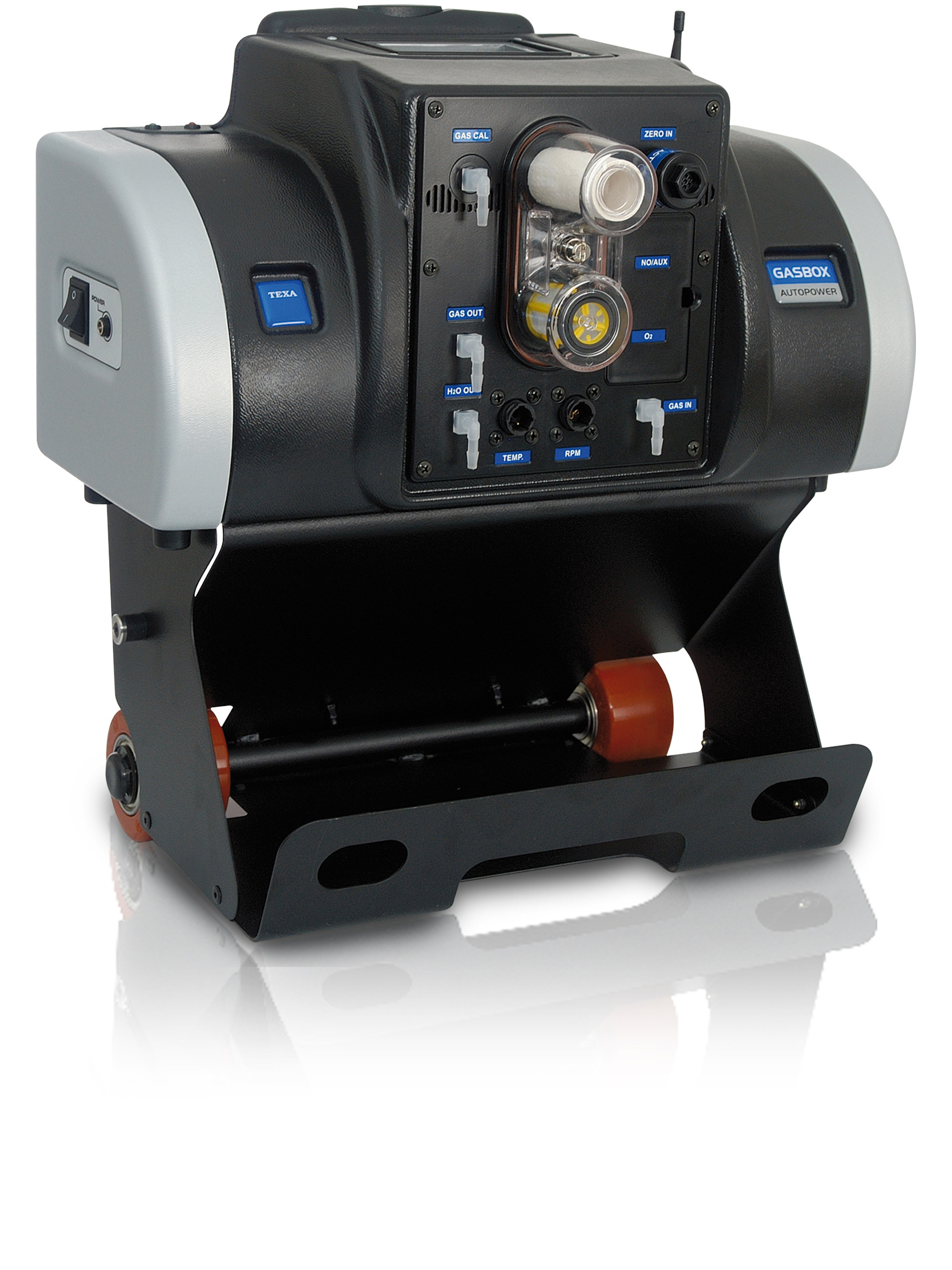

The analysis chamber is incorporated in a practical trolley mounted on wheels with ball bearings. The analyser can therefore be moved effortlessly to the vehicle waiting to be tested.
Customer Service
Team and technology at your service
* Verify the availability of SERVICER in your own country.
Technical Specifications
DIMENSIONS
460 x 200 x 250 mm
WEIGHT
6,5 Kg (with trolley 15 kg)
EXTERNAL POWER SUPPLY
2 x 12 V 7 A/h lead batteries; Maximum consumption: 80 W
SERIAL PORT
RS232 standard
WIRELESS OUTPUT
Bluetooth
SOFTWARE
ETS or IDC5
RESET AND CALIBRATION
electronic and automatic
TECHNOLOGY
NDIR
CONDENSATE DRAINAGE
continuous and automatic
RESPONSE TIME
< 10 seconds
HEATING TIME
Max. 60 seconds
DIMENSIONS
460 x 200 x 250 mm
WEIGHT
6,5 Kg (with trolley 15 kg)
EXTERNAL POWER SUPPLY
2 x 12 V 7 A/h lead batteries; Maximum consumption: 80 W
SERIAL PORT
RS232 standard
WIRELESS OUTPUT
Bluetooth
SOFTWARE
ETS o IDC5
RESET AND CALIBRATION
electronic and automatic
TECHNOLOGY
Green Led diode
HEATING TIME
maximum 5 minutes
CHAMBER LENGTH
200 mm
TEMPERATURE
75°C
