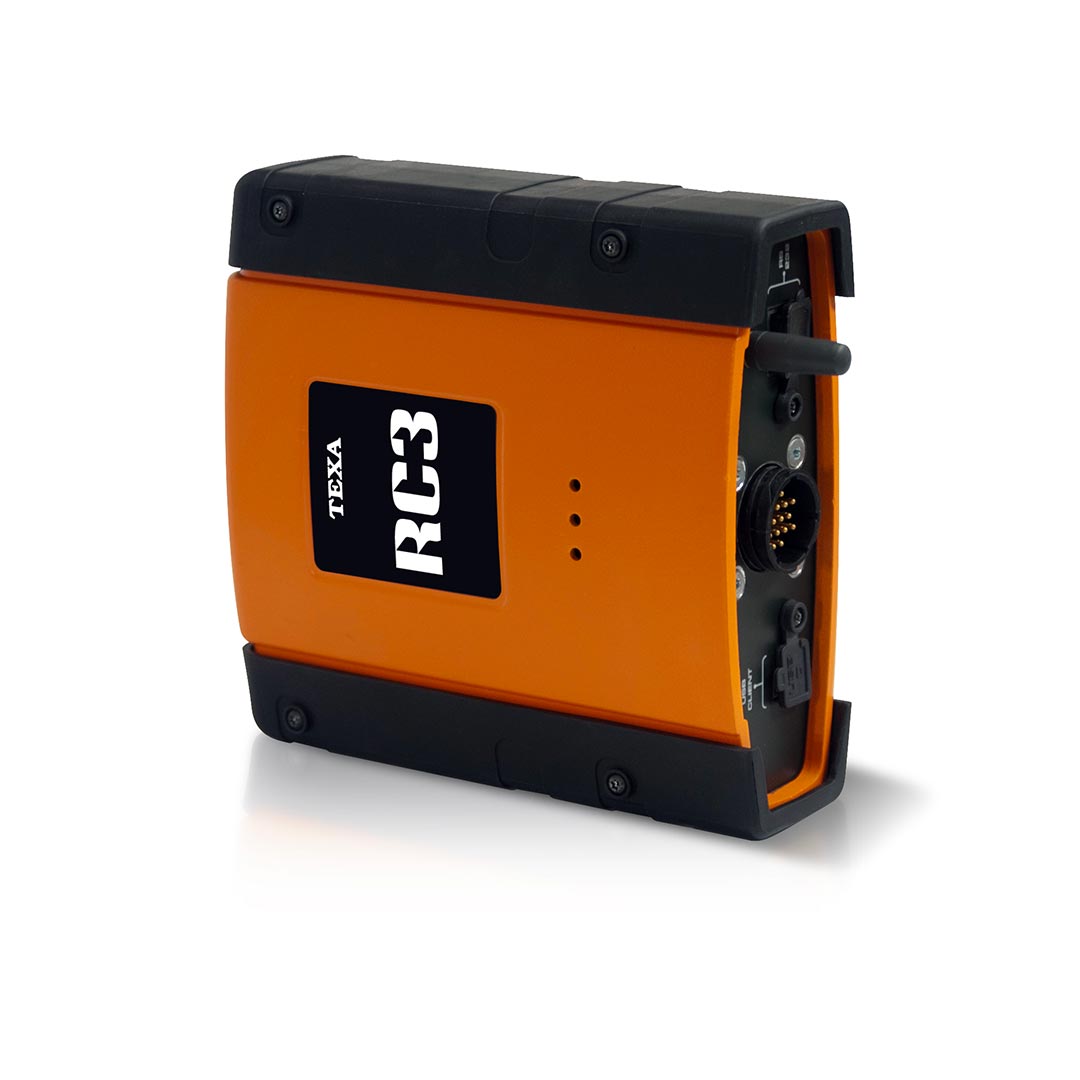

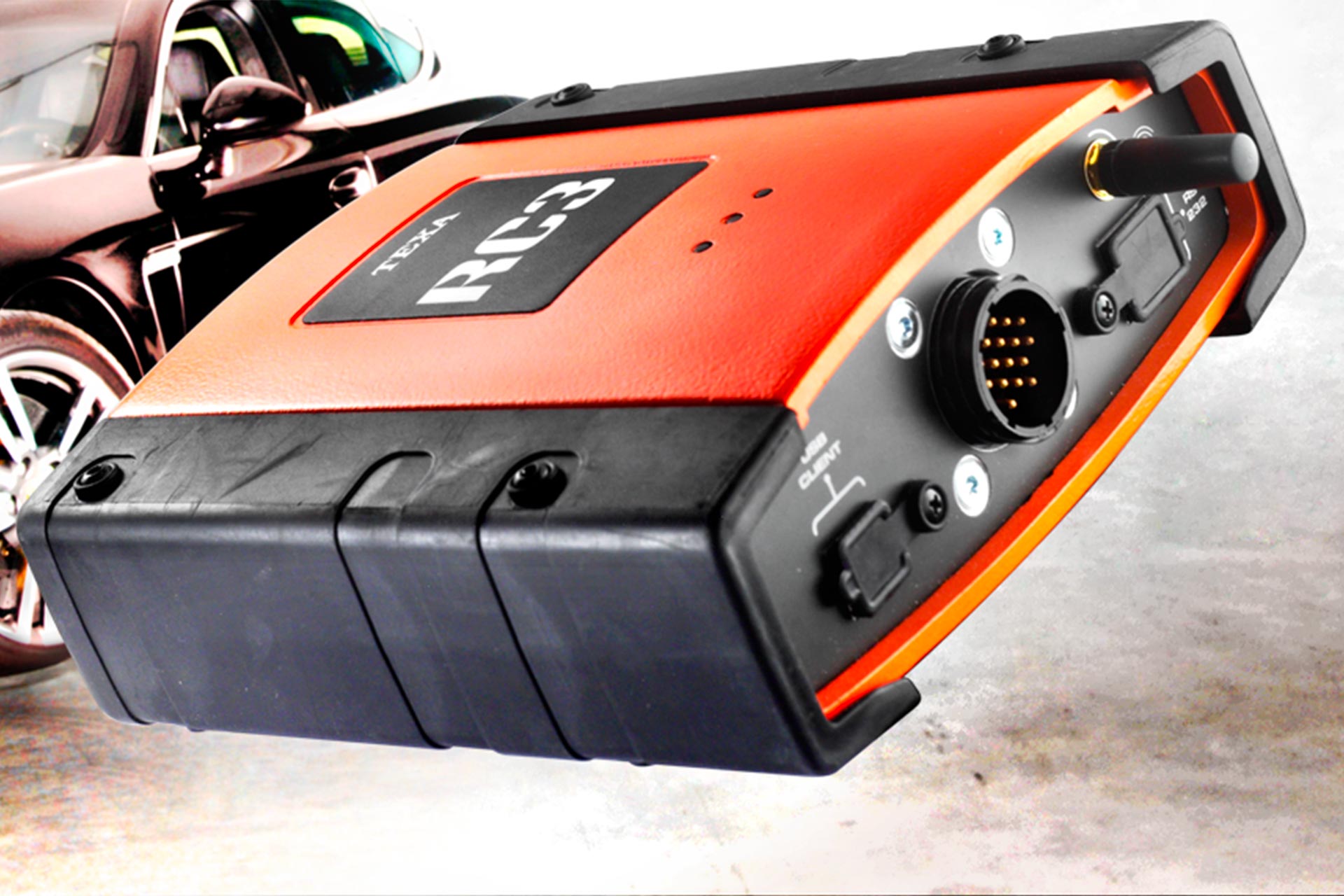

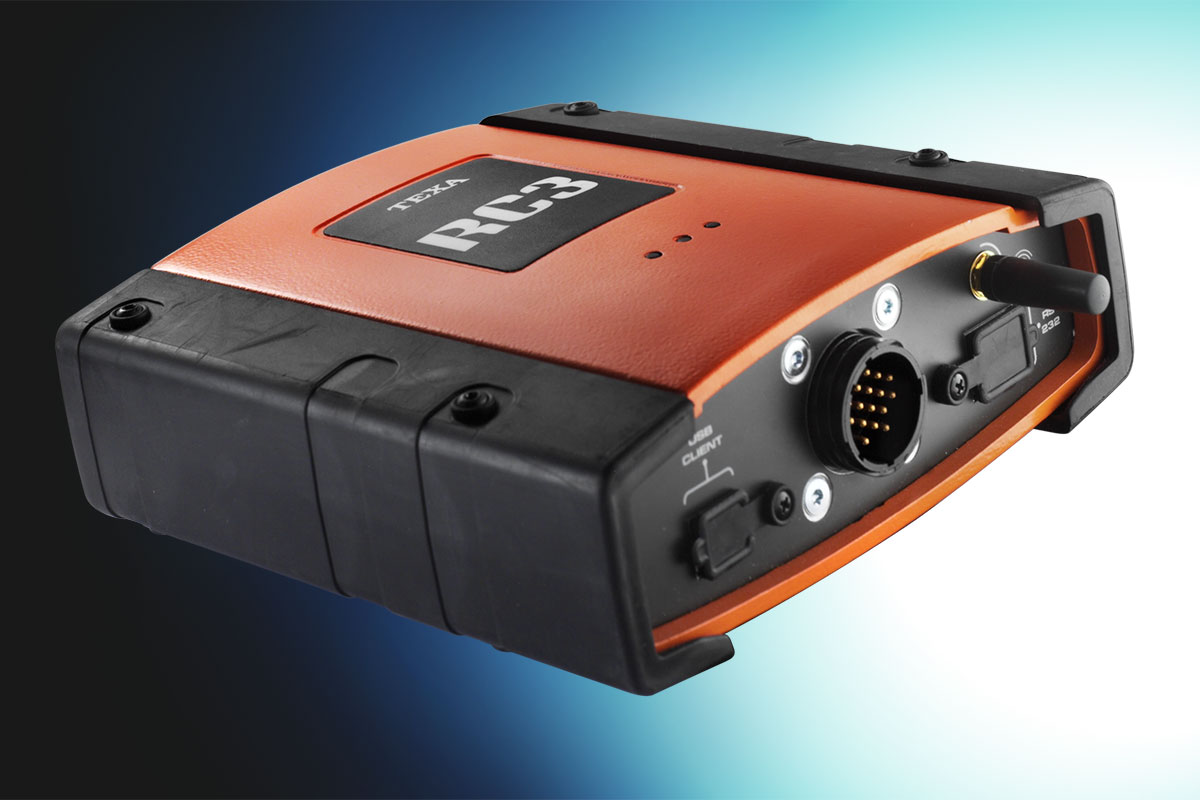

RC3

Rev counter and scan tool

RC3

TEXA’s revolutionary RC3 not only keeps engine RPM and temperature under constant control but also serves as an ECU scanning tool. It therefore allows mechanics to perform two types of test using just the one tool.

The RC3 (Revolution Counter 3) interface can read data in three different ways: using an induction clamp with piezoelectric sensors, using a microphone with the residual battery signal, or directly from the OBD socket (on vehicles with the necessary protocol).


When plugged into the OBD socket to measure engine RPM and temperature, RC3 reads data directly using EOBD protocol, so there is not even any need to open the bonnet.


RC3 can also be used in scan-tool mode; connected to the EOBD socket, it can read the parameters defined by this standard in accordance with new emission control procedures.

Customer Service

Team and technology at your service

Exclusive services that allow you to make the most of its potentiality and receive continuous support by the TEXA Call Center’s team* of specialists.

This way your workshop can always keep up with the latest automotive technologies.

An extra ally for the daily work of vehicle repairers.

* Verify the availability of SERVICER in your own country.

Technical Specifications

PROCESSOR SYSTEM
MB90F591 16MHz

SERIAL RESOURCES
1 1.1 USB Connection
1 RS232 standard connection

EXTERNAL POWER SUPPLY
8 ÷ 32 Volt

WIRELESS CONNECTION
1.2 Bluetooth technology

PETROL AND DIESEL DETECTION FROM VEHICLE BATTERY
12VDC and 24VDC Systems management

PETROL ANALOGUE DETECTION
Induction pincers

DIESEL ANALOGUE DETECTION
Piezoelectric sensor

EOBD DETECTION
ISO9141-2; ISO14230; SAE J1850 PWM; SAE J1850 VPW; CAN ISO11898

ENVIRONMENTAL
Operating temperature: -5°C ÷ +40°C
Operating moisture: 10% ÷ 80% without condensation
Storage temperature: -20°C ÷ +60°C

DIMENSIONS
155x162x63 mm

WEIGHT
800 g

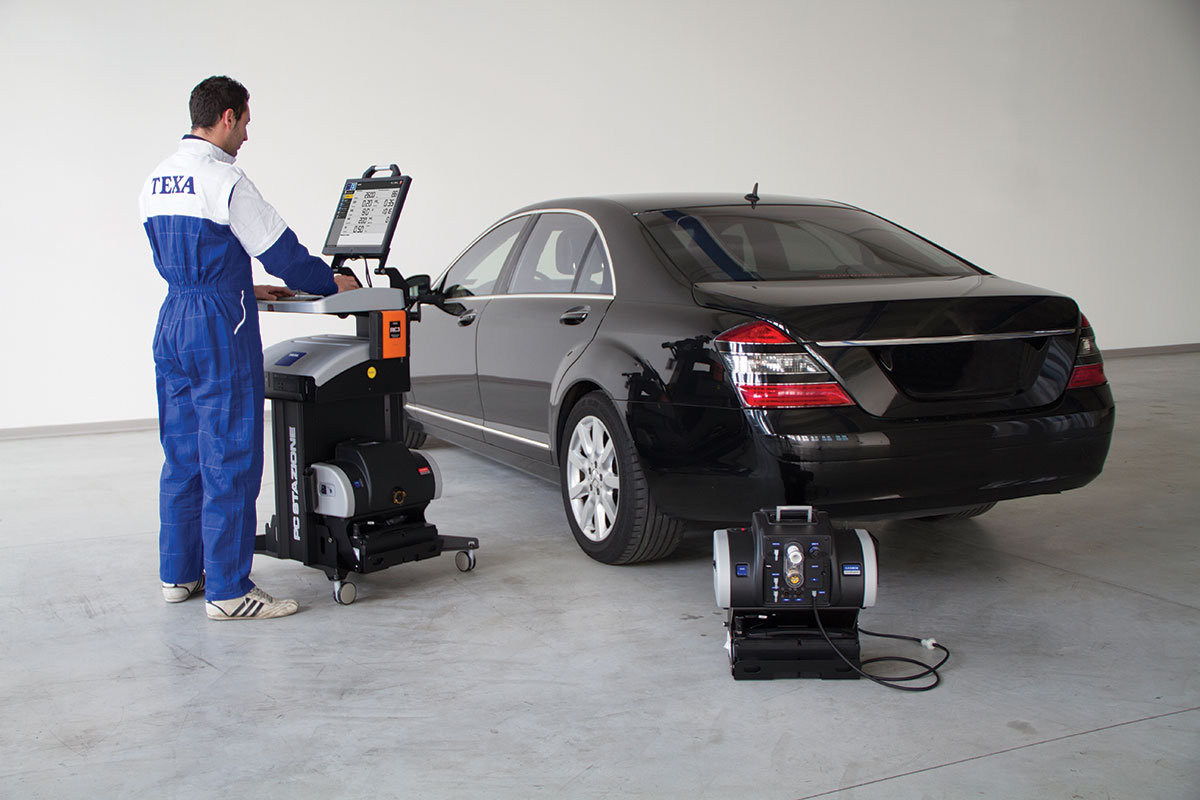

Gallery
