TTC

Motorcycle cam belt tension tester

TTC

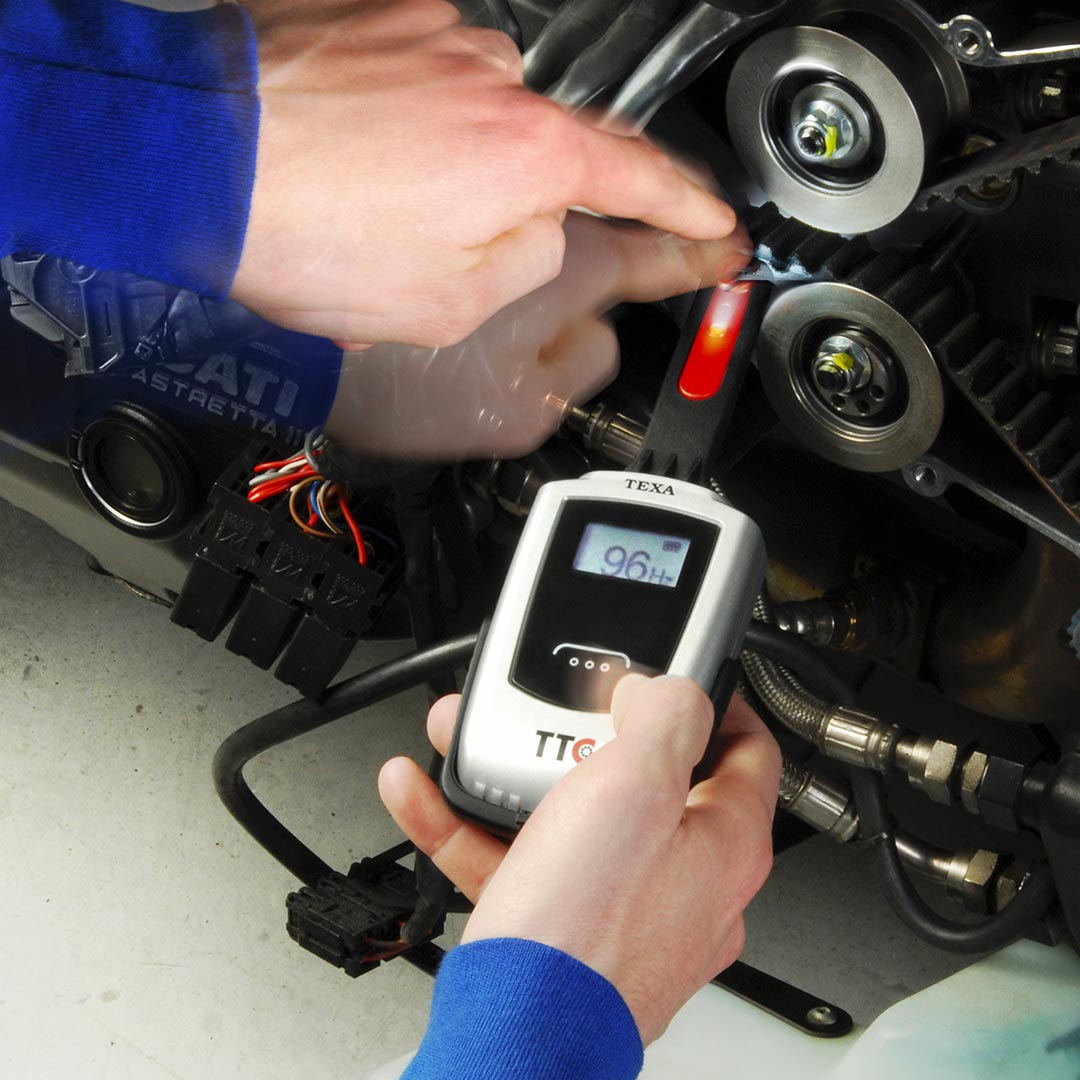

TTC is a device that verifies the correct engine timing belt tensioning, engineered according to Ducati specifications and specifically devised for Ducati bikes.

Tensioning the timing belt correctly is a fundamental step in order to ensure reliability and safety: only with a measurement tool such as TTC a correct mounting is guaranteed, and an extremely professional service as well.

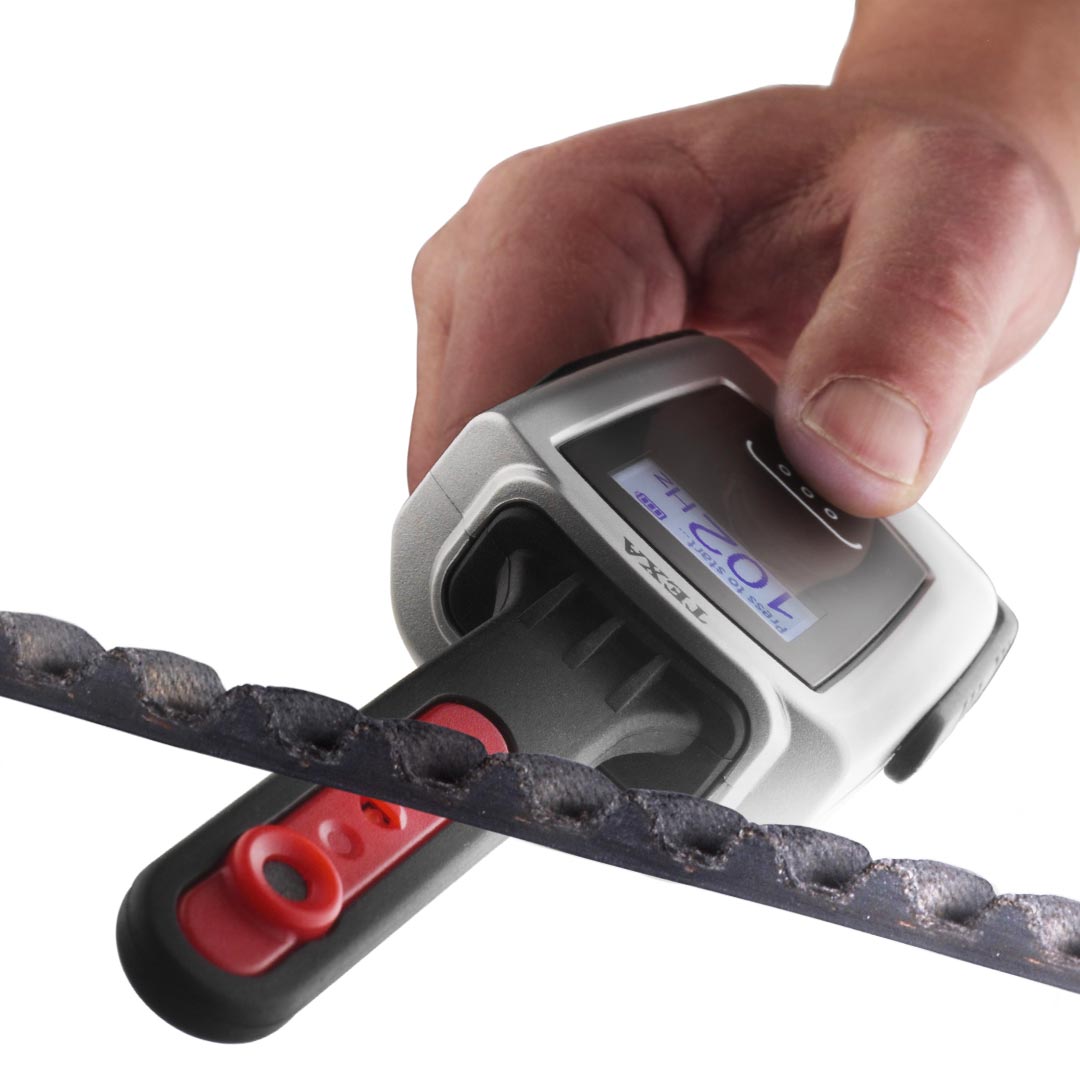

The tool operates the measurement by using a very sensitive microphone that analyses the resonance frequency.

Small, practical, fast

It is entirely wireless and self-powered by rechargeable batteries (battery charger supplied as standard). It requires no additional tools as it displays the test results directly on its graphic display, and emits a beep once the measurement is complete.

It’s light and small-dimensioned and combines high technology with exclusive handiness and comfort, enabling the mechanic workshop to carry out a correct and professional belt tensioning in a few seconds.

Customer Service

Team and technology at your service

Exclusive services that allow you to make the most of its potentiality and receive continuous support by the TEXA Call Center’s team* of specialists.

This way your workshop can always keep up with the latest automotive technologies.

An extra ally for the daily work of vehicle repairers.

* Verify the availability of SERVICER in your own country.

Technical Specifications

MICRO CONTROLLER
ARM 32 bit

DISPLAY
Backlit LCD

INTERNAL BATTERY
3.7 V 1000 ma/h li-io

RECHARGE
from USB port, max consumption 470 mA

RANGE
6 hours of continuous operation

RESOLUTION
3 Hz

ACCURACY
± 1,5 Hz

ENVIRONMENTAL
Operating temperature: – 10 °C ÷ 40 °C
Stocking temperatur: – 20 °C ÷ 60 °C
Temperature with battery under charge: 0 °C ÷ 45 °C

Storage and operation moisture: 10 % ÷ 80 % without condensation

DIMENSIONS
202,7×70,6×31,3 mm

WEIGHT
300 g
