KONFORT 780 TOUCH

Simple like a smartphone, high-performing like a KONFORT

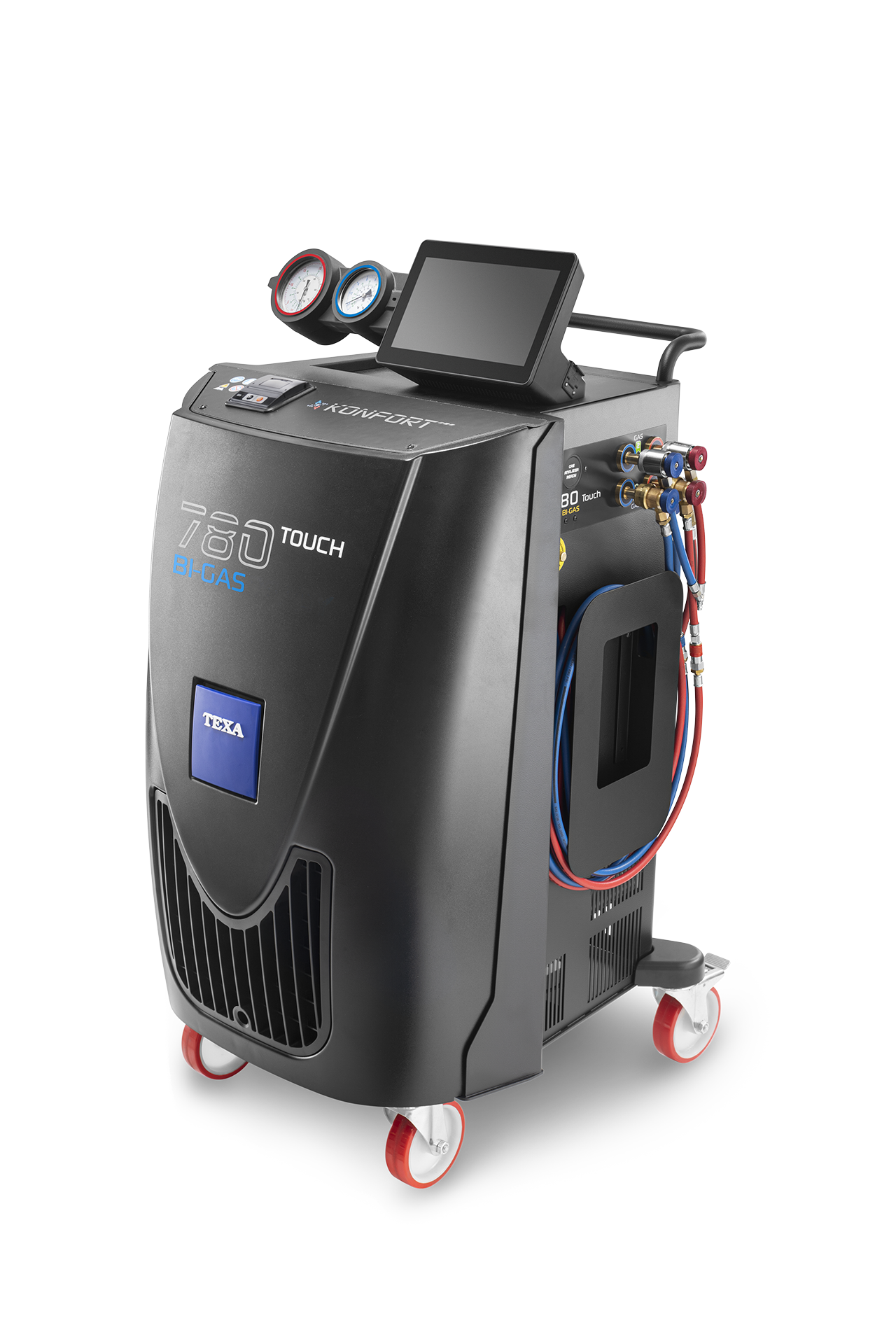

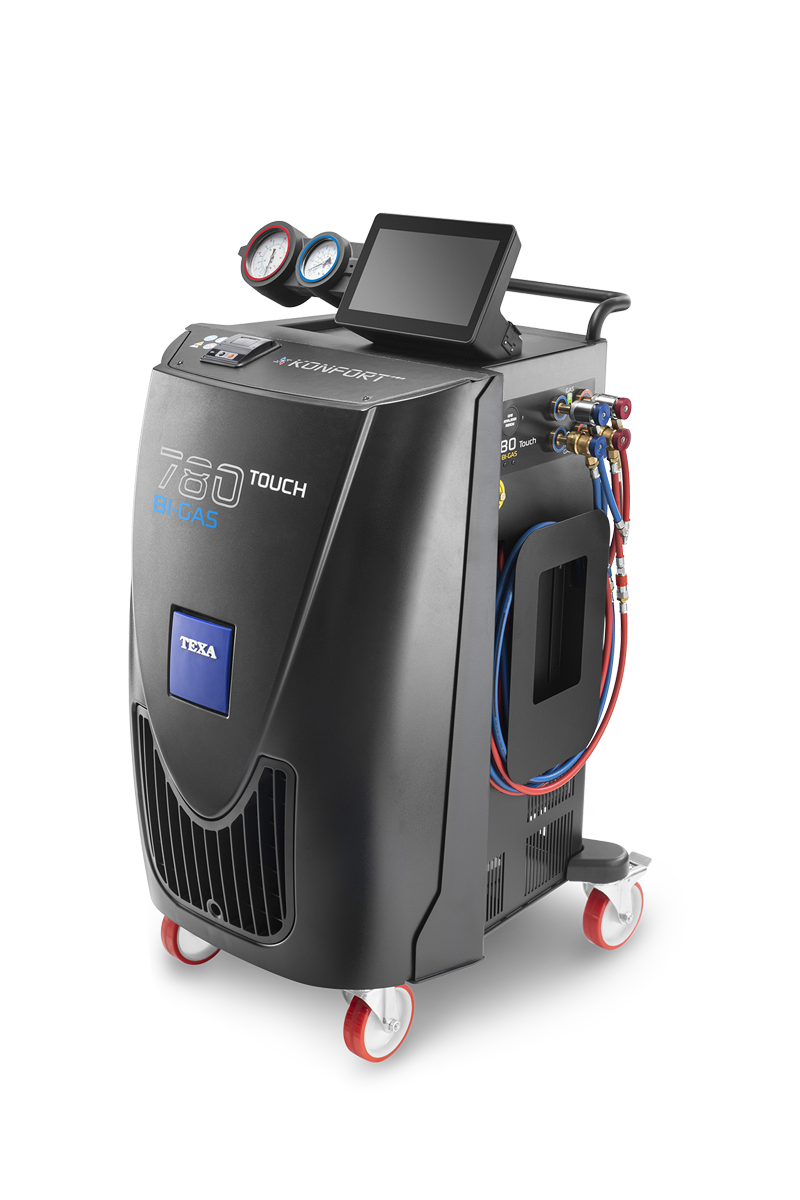

KONFORT 780 TOUCH BI-GAS
(R134a and R1234yf)

The top of the range. It allows users to alternate
services on vehicles equipped with refrigerants R134a
and R123yf, as it has two tanks and two separate
circuits for recovery, recycling and recharging.


The service process is automated.

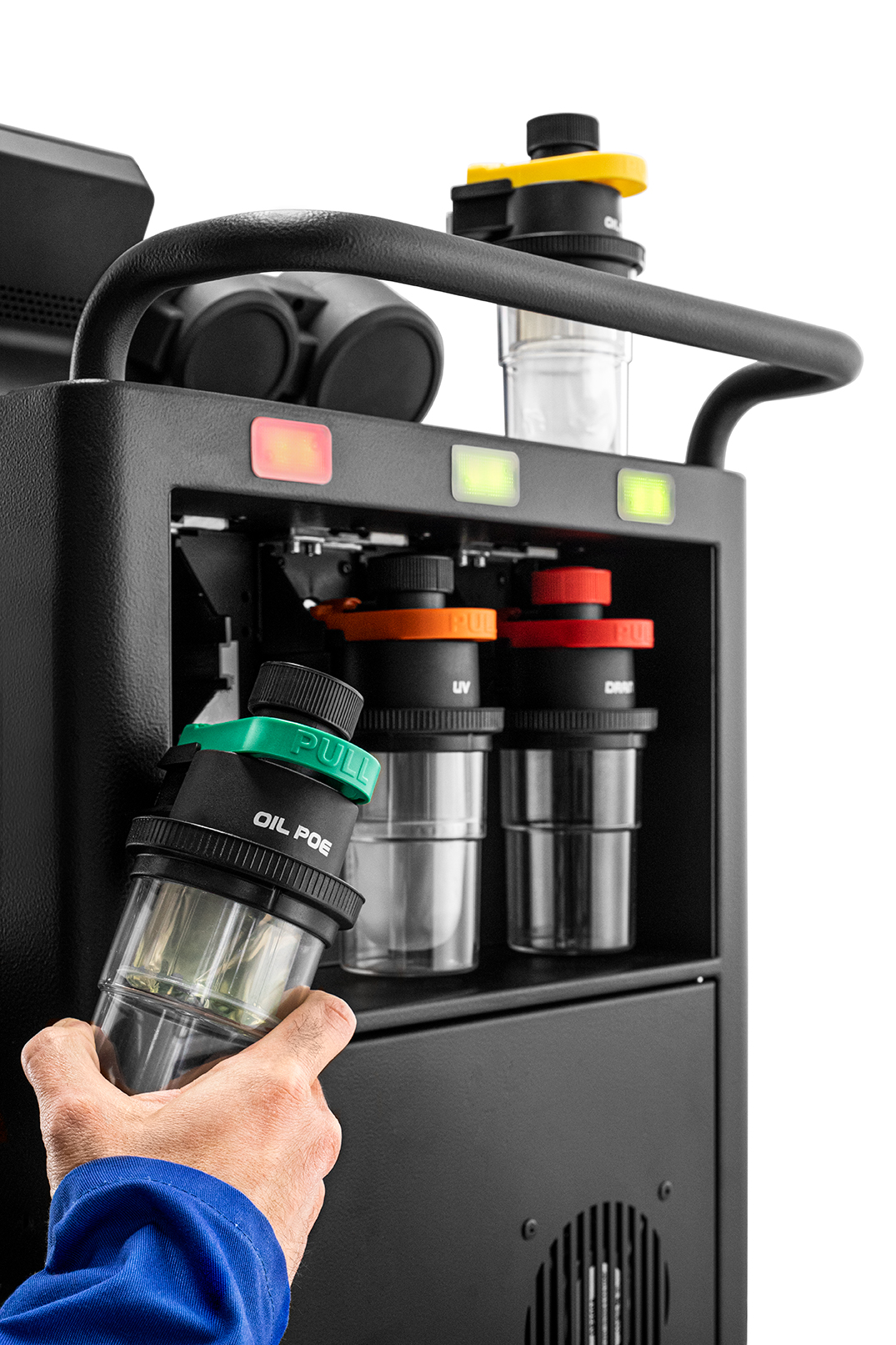

Other distinctive features: airtight oil bottles, scale
locking/unlocking device, refrigerant weight accuracy check system, automatic cleaning device for all the hydraulic ducts.

A large display for great results

The KONFORT TOUCH charging stations are equipped with a 10-inch colour multi-touch screen display, which gives them great usability and allows always having a clear view of the operations to perform. Moreover, the innovative graphic interface has been developed to ensure a really intuitive software user experience, making it easier to quickly read the data displayed.

Data reading is best supported by the high resolution and 400 nits brightness.

An interesting feature is also the possibility for the operator to choose between a light or dark theme
for the background.

The display on the KONFORT TOUCH stations features the glove-touch technology, which ensures perfect use while wearing different types of work gloves.

Many connection modes

The great ease of use of the KONFORT TOUCH range and its smart approach also lie in the possibility to use
the Wi-Fi connectivity for a series of activities, such as:
– printing reports in A4 format;
– receiving software and firmware updates in real time;
– receiving remote technical assistance;
– connecting to the myTEXA portal;
– connecting with the KONFORT Mobile APP.

The Bluetooth module also allows connecting the stations with several accessories, such as the A/C efficiency kit.

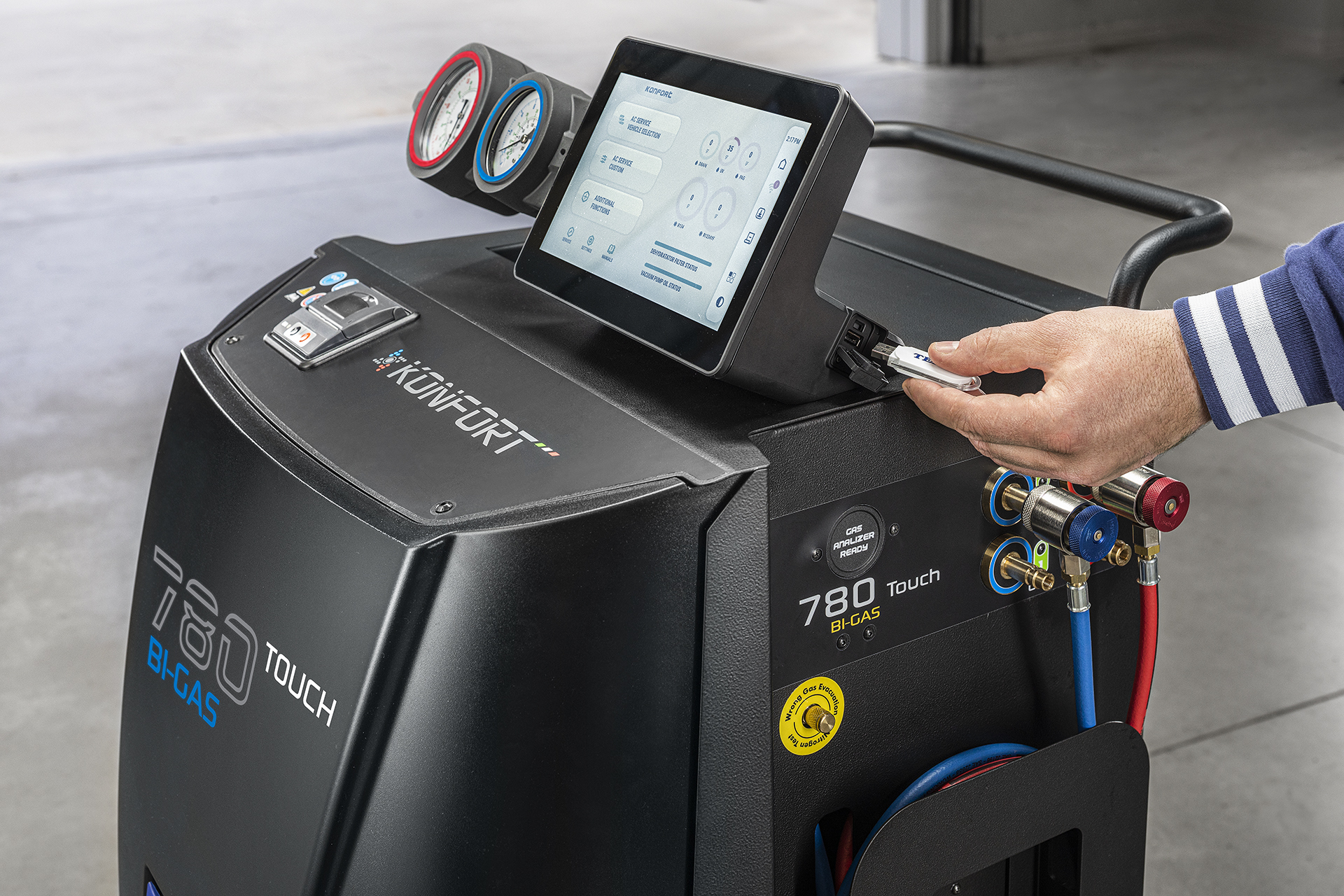

The stations are also equipped with a practical USB port, which can be used to back up the reports of the services
performed and the entire system. It is very useful also to install software updates if the workshop does not have
a Wi-Fi network.

Paper reports always at hand

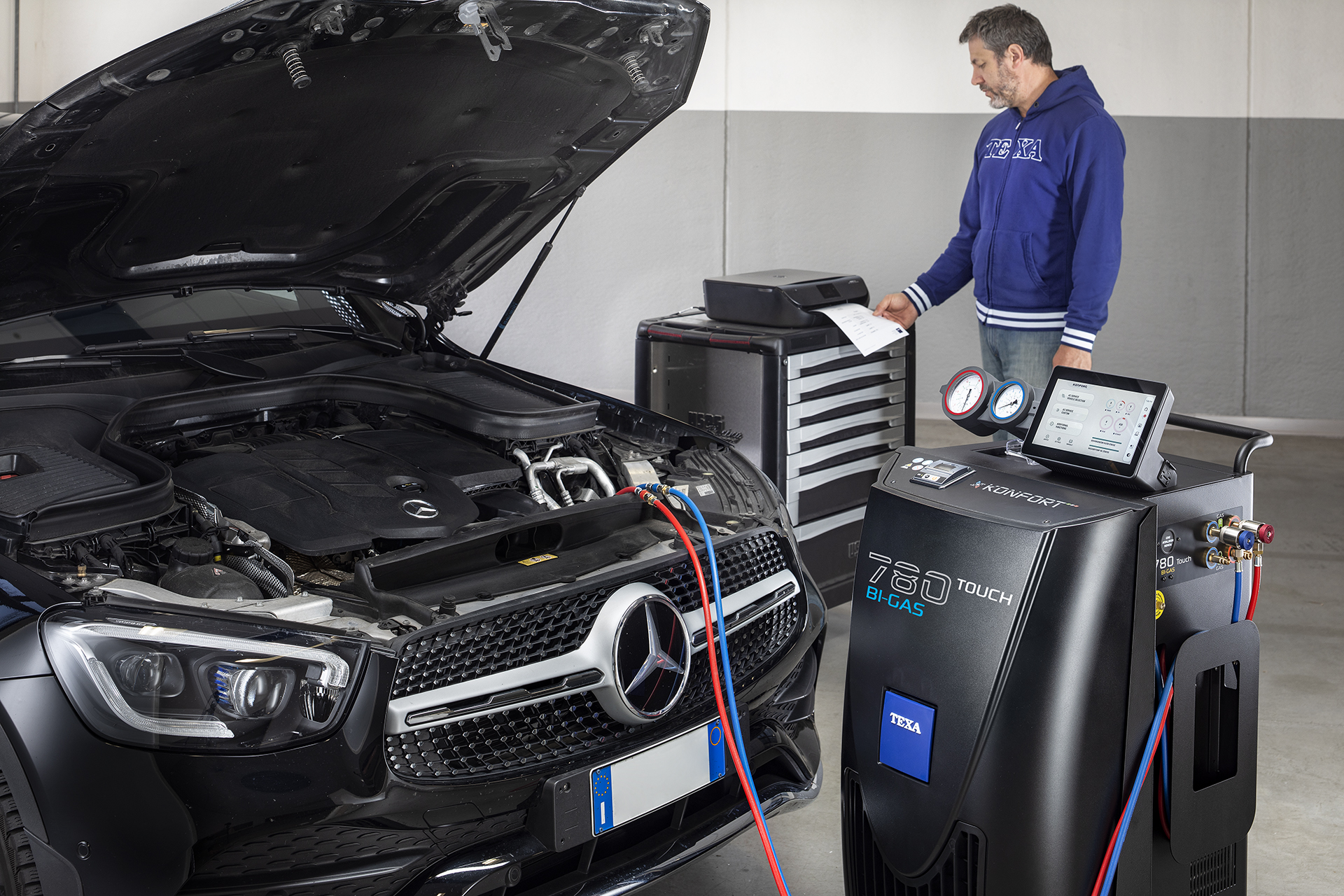

Besides the built-in thermal printer, KONFORT TOUCH allows printing the reports of the services performed also via Wi-Fi and in A4 format, using any printer connected to the workshop’s Wi-Fi network.

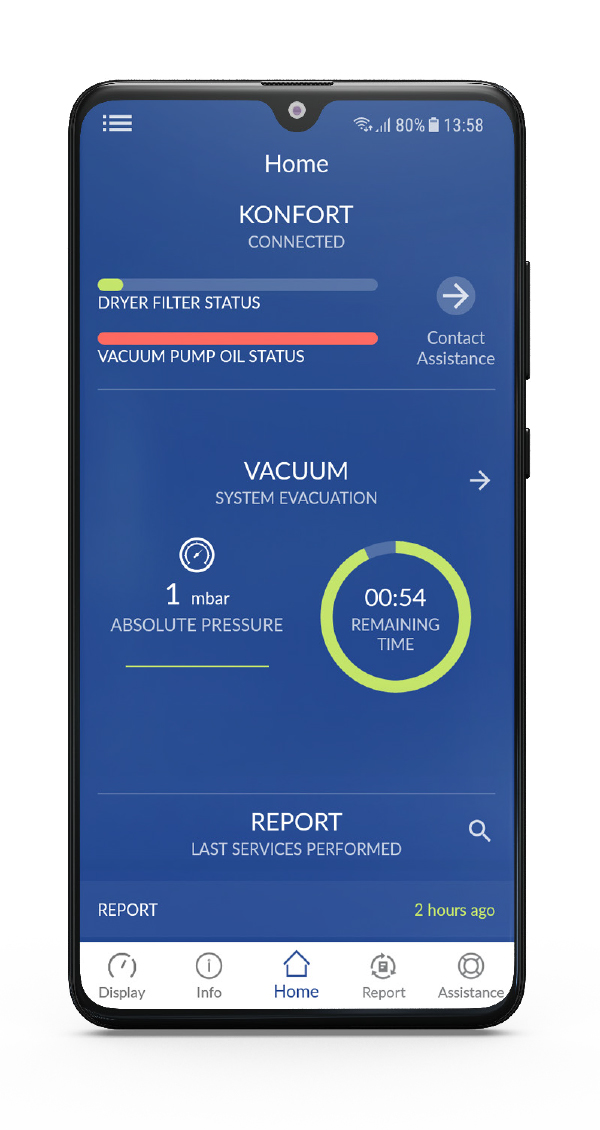

KONFORT APP

Thanks to a dedicated APP, the stations communicate with Android and iOS smartphones, so that operators can follow the progress of the service and charging procedures also remotely.

The technician receives a notification in case of faults and when the service is complete. The new APP also allows you to view and manage the performed maintenance services easily, even when the station is turned off.

Android operating system everything is even easier

The KONFORT TOUCH stations are designed to be extremely well-functioning and achieve the maximum
simplification of the maintenance and charging operations.

To reach this goal, the Android 10 embedded operating system is used.

This choice allows better familiarity in activating the various controls, with a very intuitive visual language
and an interface rich in infographics.

The software updates are performed automatically and securely.

Simple and intuitive user interface
starting the service is immediate

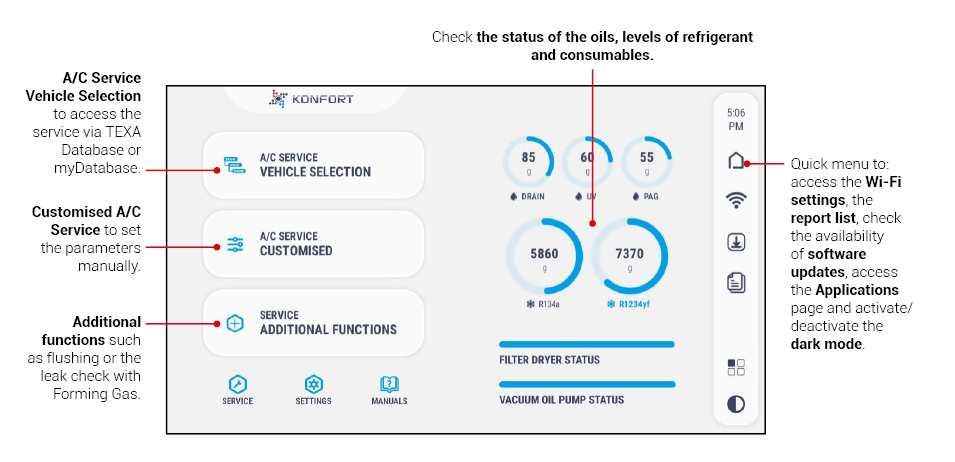

The interface is designed to provide all the necessary information in a single screen; this way, users can have
direct access to the most useful operations. In next to no time, you will move from the initial station activation
phases to carrying out the service.

The menu, which can be browsed really easily, makes the most of the large display and minimises the “steps”
required to start a charging service. Moreover, the search mode “Smart selection by model” allows you to find
the vehicle you are working on by simply entering one or more keywords.

Below is an overview of the main software screens, from the service selection to the charging phases and the
remote after-sales assistance request:

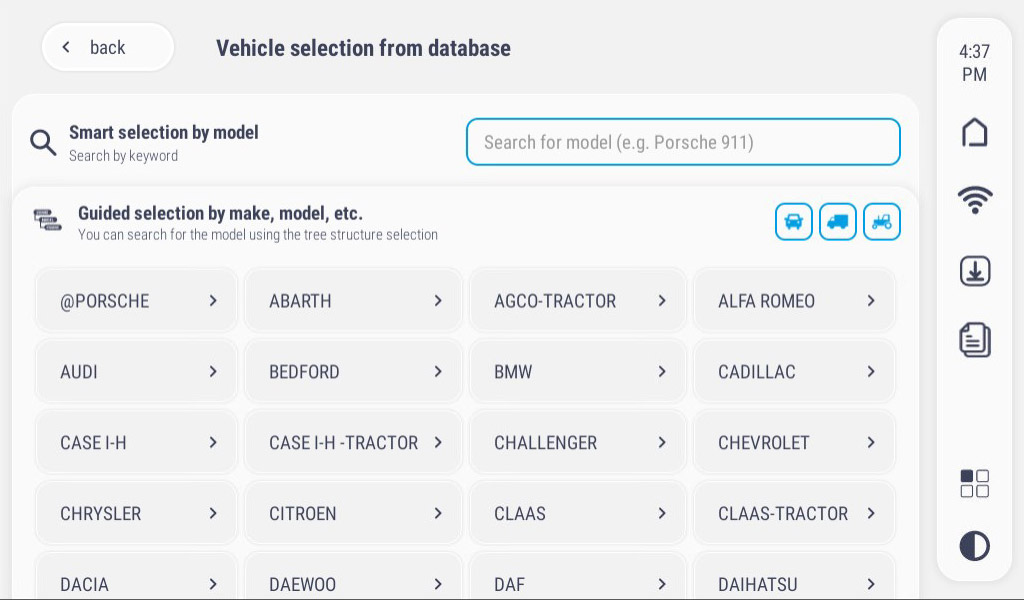

Smart selection by model

Enter a keyword in order to find more rapidly the vehicle you wish to work on. It also works with words in proximity.

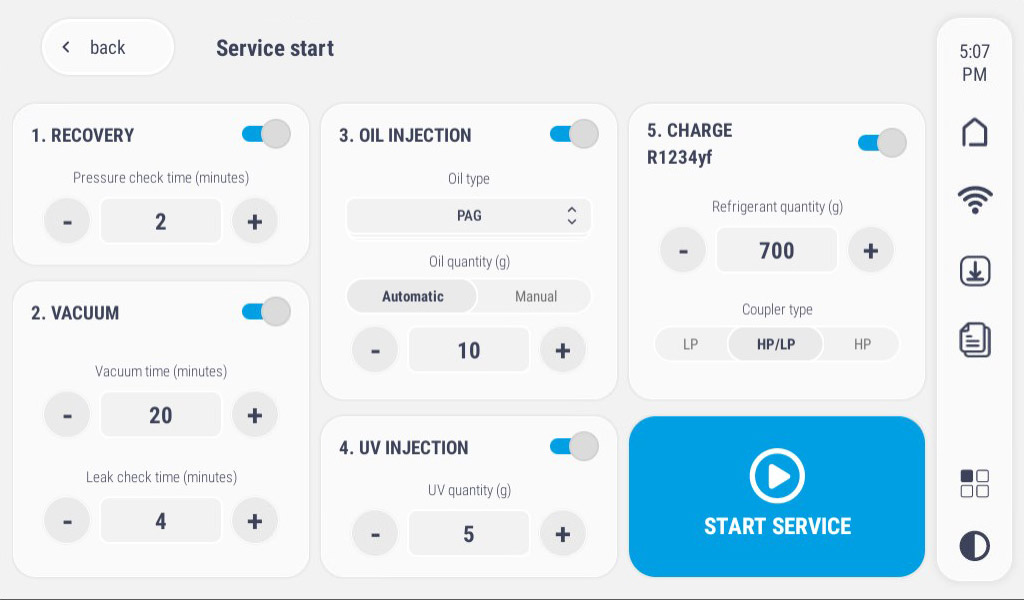

All the operating parameters can be set in a single screen.

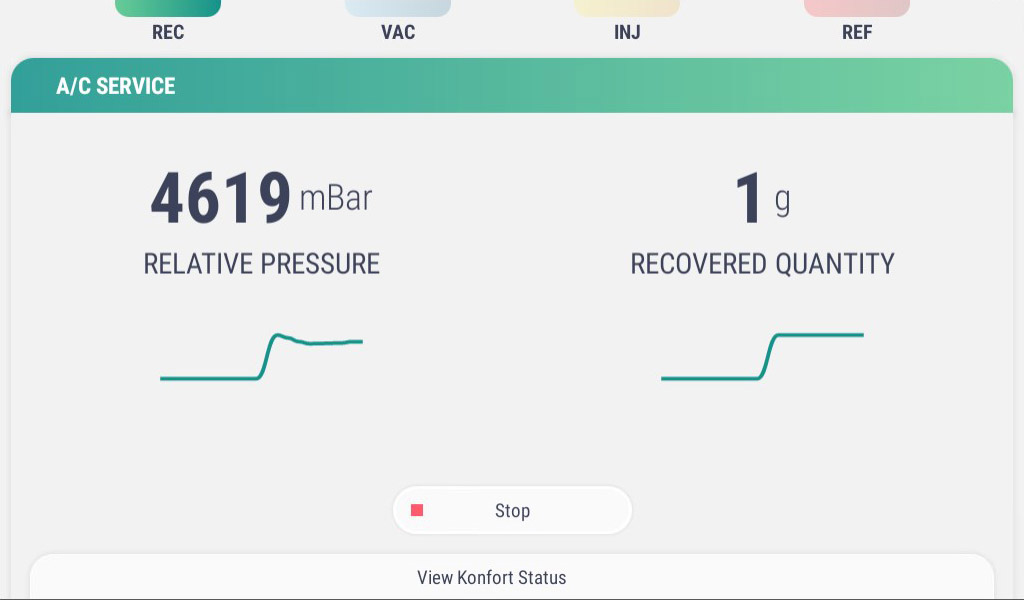

«Recovery» phase

The screen highlights the time remaining until the refrigerant recovery operation is complete.

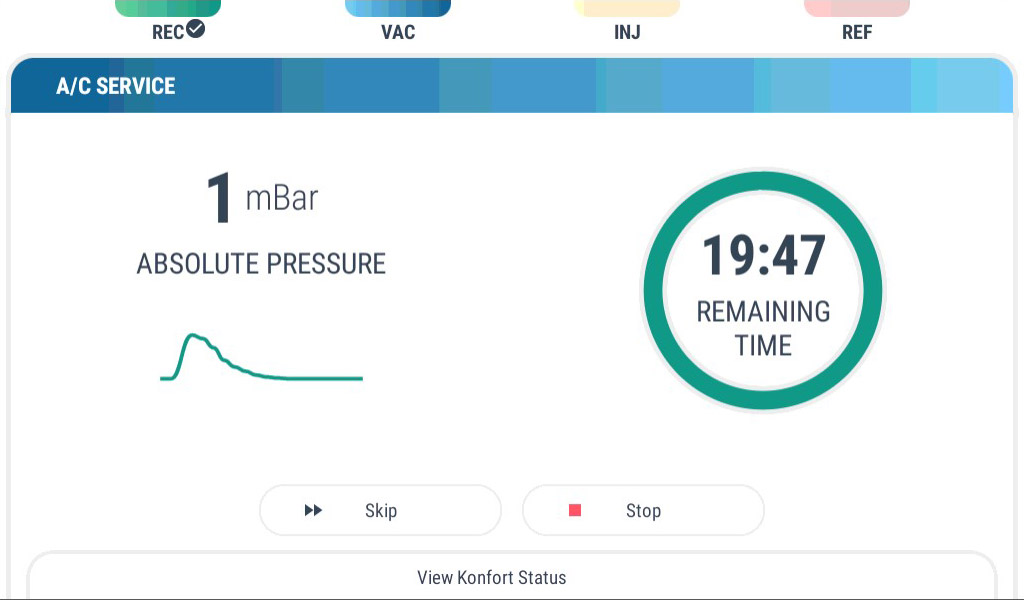

«Vacuum» phase

A vacuum is induced in the vehicle’s A/C system to check for possible leaks.

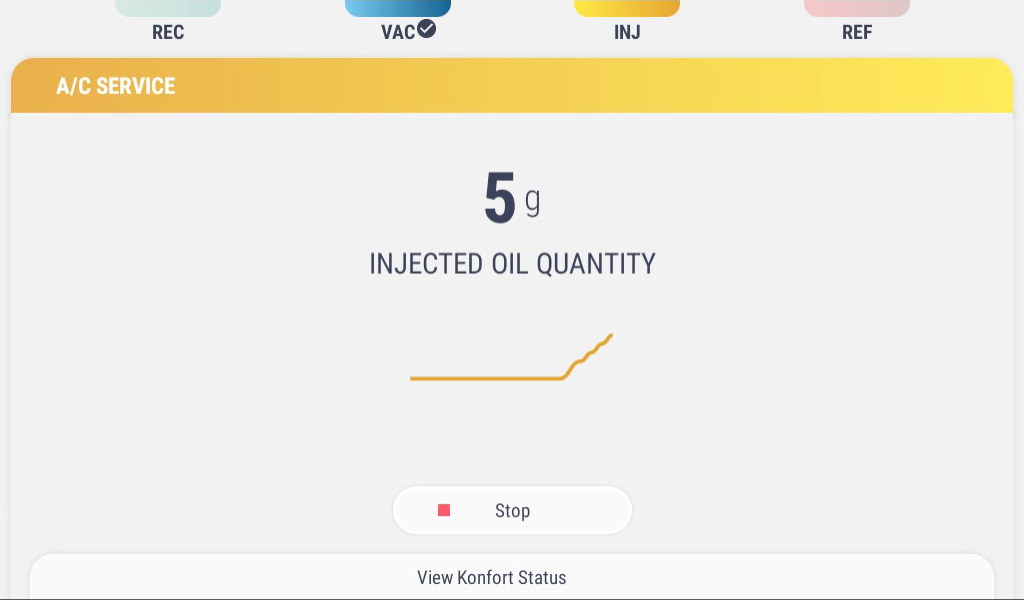

«Oil injection» phase

The system injects the correct amount of oil in the vehicle system to lubricate it.

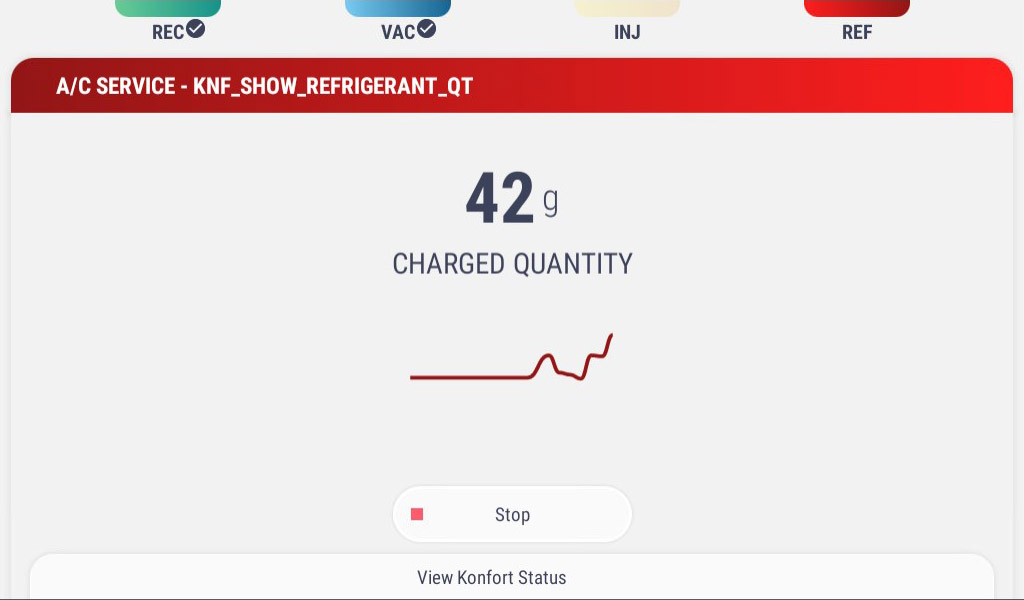

«Refrigerant charge» phase

The station charges the correct amount of gas into the vehicle system.

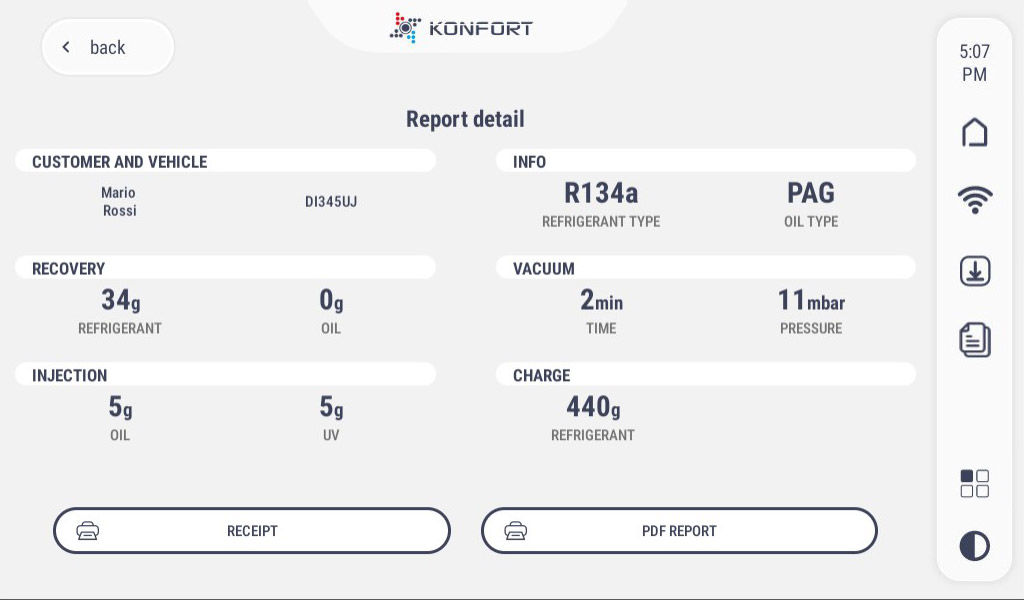

Once the operation is complete, the report is saved automatically and can be printed as you prefer.

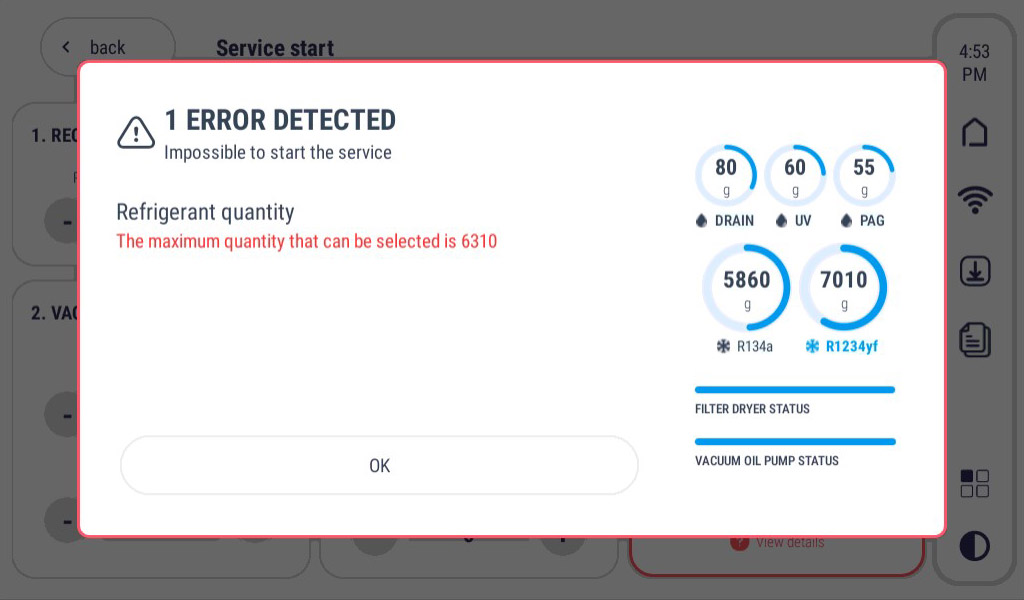

Example of a detected error

KONFORT TOUCH has detected a failure, in this case the amount of refrigerant is not enough.

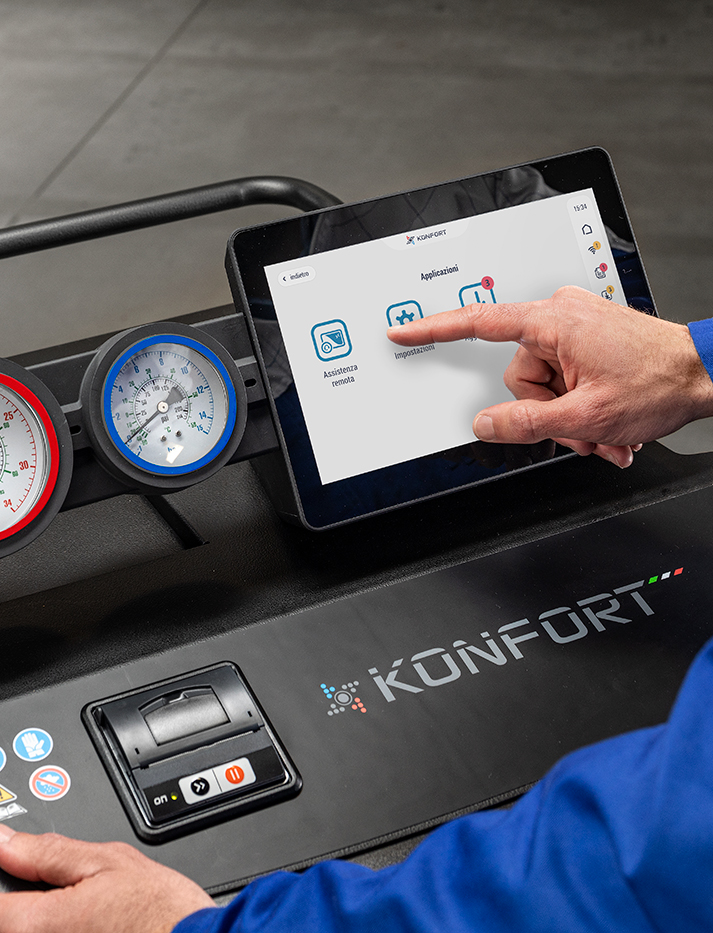

Online technical assistance
A specialised operator always available

The owner of a KONFORT TOUCH station can be sure not only to use a highly technological tool, but also to be able to count on constant after-sales assistance.

To use this service, simply connect the station to the workshop’s Wi-Fi network, access the Applications page from the software interface and select Remote Assistance.

From here, it is possible to ask for the help of a specialised technician who will take control of the KONFORT TOUCH remotely to carry out maintenance activities in support of the operator at the workshop.

For example, the technician can activate the station, check its operating status and any errors that it may have set, calibrate the scales, check the solenoid valves, and much more.

A wide range of accessories
for expanded functionality

The KONFORT TOUCH models can be used in combination with a range of optional accessories that expand
their functionality and potentiality, such as:

CLIMATE CONTROL EFFICIENCY KIT

The new KONFORT service station models offer an optional climate control efficiency kit module which allows ambient and vent temperatures to be measured.
Once the test has been carried out, the KONFORT unit provides a detailed performance report.

Forming Gas kit

It allows solving quickly and efficiently any leak detection problems in A/C systems that use refrigerants R134a and R1234yf.
Using the kit is a strategic solution, since it allows identifying the smallest gas leaks with precision.
This is due to the molecular size of the Forming Gas, much smaller than any refrigerant.

REC+

It guarantees the safe evacuation of the refrigerant, whichever its nature.
It complies with the technical, performance and safety requirements of the most important vehicle manufacturers and allows recovering up to 95% of the refrigerant in the system. At the end of the recovery, the contaminated refrigerant can be drained into a tank and disposed of.

Refrigerant identifier kit

This device immediately identifies the type of refrigerant used in the vehicle, R134a or R1234yf, and checks its purity.
The entire operation takes approximately one minute. If the refrigerant is found to be unsuitable or contaminated, the station warns the technician and stops the operation.

Thermal printer

It is possible to install a very useful thermal printer, to generate at any time an accurate report of all the operations performed.

Vehicle flushing kit

Flushing is the mechanical operation carried out to clean the air conditioning system components of a vehicle. This includes: A supplementary 6lt capacity tank with a contamination indicator, a stainless steel filter which is easily removable for cleaning, 5mm diameter hoses flushing hose and universal adapter case

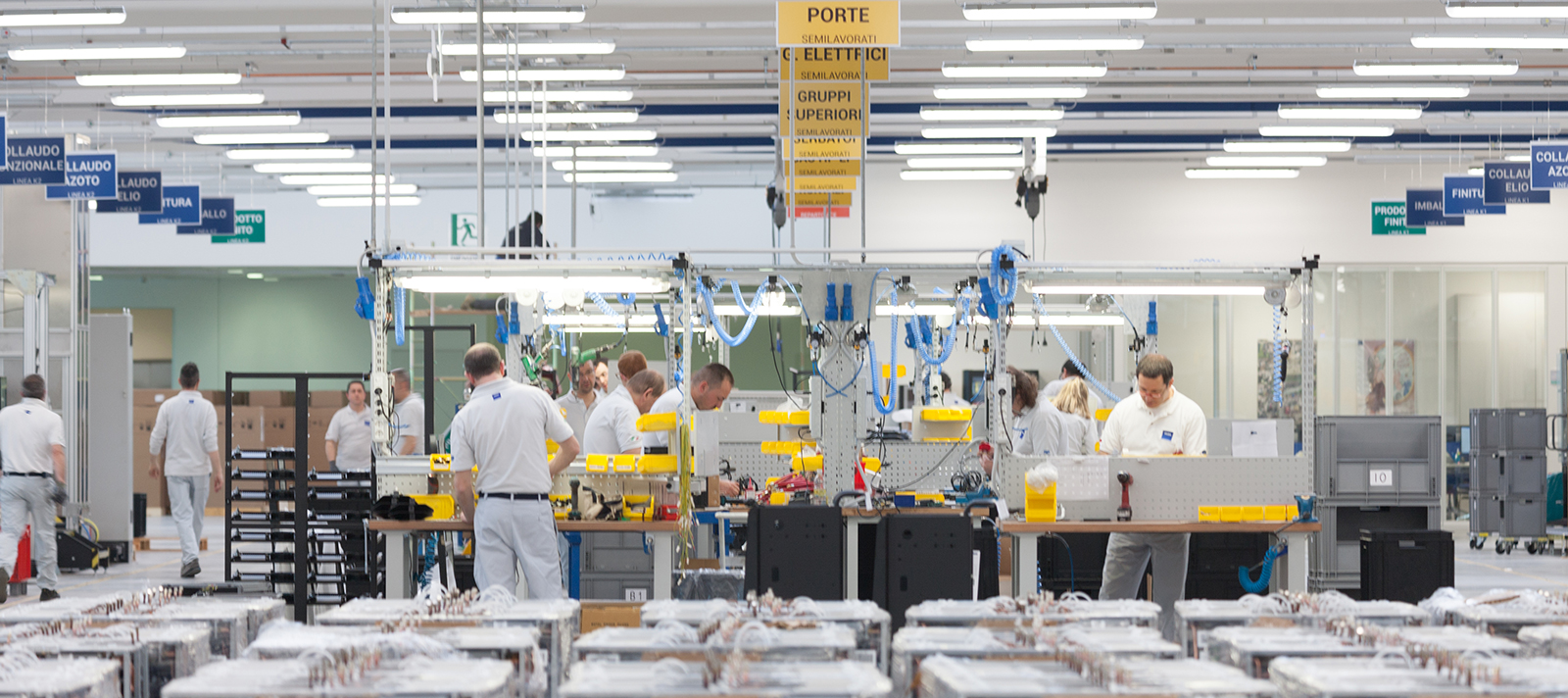

Production and quality certified
ISO TS 16949 quality system

The KONFORT TOUCH range benefits from new developments in materials, technologies and automated
production procedures that resulted in TEXA gaining an ISO TS 16949 certification.

All phases are subject to strict quality control, from component selection and development to machining, assembly,
distribution and after-sales service.

After assembly, the stations enter the testing department where the electrical system is tested and the scales
sensors and pressure transducers are calibrated. Functional testing is then performed to verify that all components
and devices respond correctly and perform according to specifications.

Rigorous testing eliminates the risk of defects in the hydraulic system and ensures that all parts are effectively
sealed. The final stage of testing takes place in a special sealed chamber and involves the injection of helium into
the tank and the recharge circuit. Helium is used because its particularly small molecules are able to find even
minute leaks.

The KONFORT charging stations conform to European CE/PED safety standards, to the American standards
governing refrigerant purity (SAE J2099 for both R134a and R1234yf) and to those governing efficiency in the
recovery of at least 95% of used refrigerant (SAE J2788 for R134a and SAE J2843 for R1234yf).

Specific training*

for A/C servicing

TEXA believes offering customer training to be particularly important. Adequate technical competence and
the correct use of diagnostic tools are critical to the success of a workshop business.
The teaching methods used in TEXA courses are based on an ideal mix of theory and practical elements.

Practice plays a fundamental part, as it combines testing and simulations with use of the technicians’ own TEXA
diagnostic tools, thus stimulating a more active and dynamic participation and effective learning.

*Verify the availability of TEXAEDU in your own country.

AC-307/2008:
REFRIGERANT HANDLING

AC-307/2008:
REFRIGERANT HANDLING

AIM:
Acquire all the minimum knowledge and know-how required by Reg. 307/2008. All vehicle repairers that carry out recovery activities of the R134a gas from a motor vehicle’s A/C system must obtain the qualification to use such gas by attending a training course organised by a Certified organisation. Following the DPR (Decree of the President of the Italian Republic) no.146/2018, the F-gas database was created for the registration of companies and people that purchase F-gas and therefore must both comply with the subscription and be qualified. TEXA has certified its training course, in compliance with the contents of the DPR (Decree of the President of the Italian Republic) no.43/2012, and equipped all its training centres in Italy according to the characteristics required by the Decree.

DURATION:
8 hours (available also online)

G16C:
MAINTENANCE AND DIAGNOSTIC TECHNIQUES OF THE NEW A/C SYSTEMS WITH THE R1234YF AND R744 GASES

G16C:
MAINTENANCE AND DIAGNOSTIC TECHNIQUES OF THE NEW A/C SYSTEMS WITH THE R1234YF AND R744 GASES

AIM:
Learn the key points of the European legislation and the technical properties of the new R1234yf and R744 refrigerants. Know how to service cooling systems with the R1234yf and R744 gases and learn the requirements for the storage and the procedures for recharging and servicing in complete safety. Know how to carry out the recovery, recycling and recharging procedures correctly with the R1234yf and R744 gases through two examples on a Toyota Prius and Mercedes-Benz.

DURATION:
8 hours

Prodotto da inserire all’interno del sistema per il trattamento dei gas di climatizzazione di autoveicoli KONFORT.
Verificare con il proprio rivenditore TEXA di fiducia le modalità di accesso al Nuovo Piano Industria 4.0.

Technical Specifications

TECHNICAL SPECIFICATIONS:

  • Dual refrigerant management R134a and R1234yf
  • Compatible CAR and TRUCK
  • Fully automatic service management
  • Automatic leak detection
  • Refrigerant quantity measurement with electronic scales
  • Air Tight Bottle oil anti-contamination system (patent pending)
  • Automatic oil management with electronic scales
  • Recovered oil quantity measurement with electronic scales
  • Hybrid vehicle compatible
  • Automatic service management (DATABASE)
  • Customised service management
  • FPS security system (Fan Protection System)
  • Flushing system for refrigerant change
  • Flushing system for oil change
  • Printout of completed services via Wi-Fi
  • Thermal printer
  • 10” touchscreen display
  • Compatibility with KONFORT APP
  • 2 x 12 kg tanks
  • Charging accuracy +/- 15 g
  • High efficiency refrigerant recovery (over 95%)
  • Two-stage vacuum pump
  • Automatic oil bottle recognition (patent pending)
  • Scales locking system
  • Operating mode: DATABASE
  • Operating mode: CUSTOMISED SERVICE
  • Operating mode: MY DATABASE
  • Multi-language software
  • Automatic service hose length compensation
  • Automatic maintenance alarm
  • Simplified maintenance
  • Automatic management of non-condensable gases
  • Remote assistance
  • Automatic, high-precision oil injection
  • Automatic updates

OPTIONAL:

  • Refrigerant identifier kit
  • Flushing kit
  • A/C system efficiency kit
  • Leak detection kit with Forming Gas
