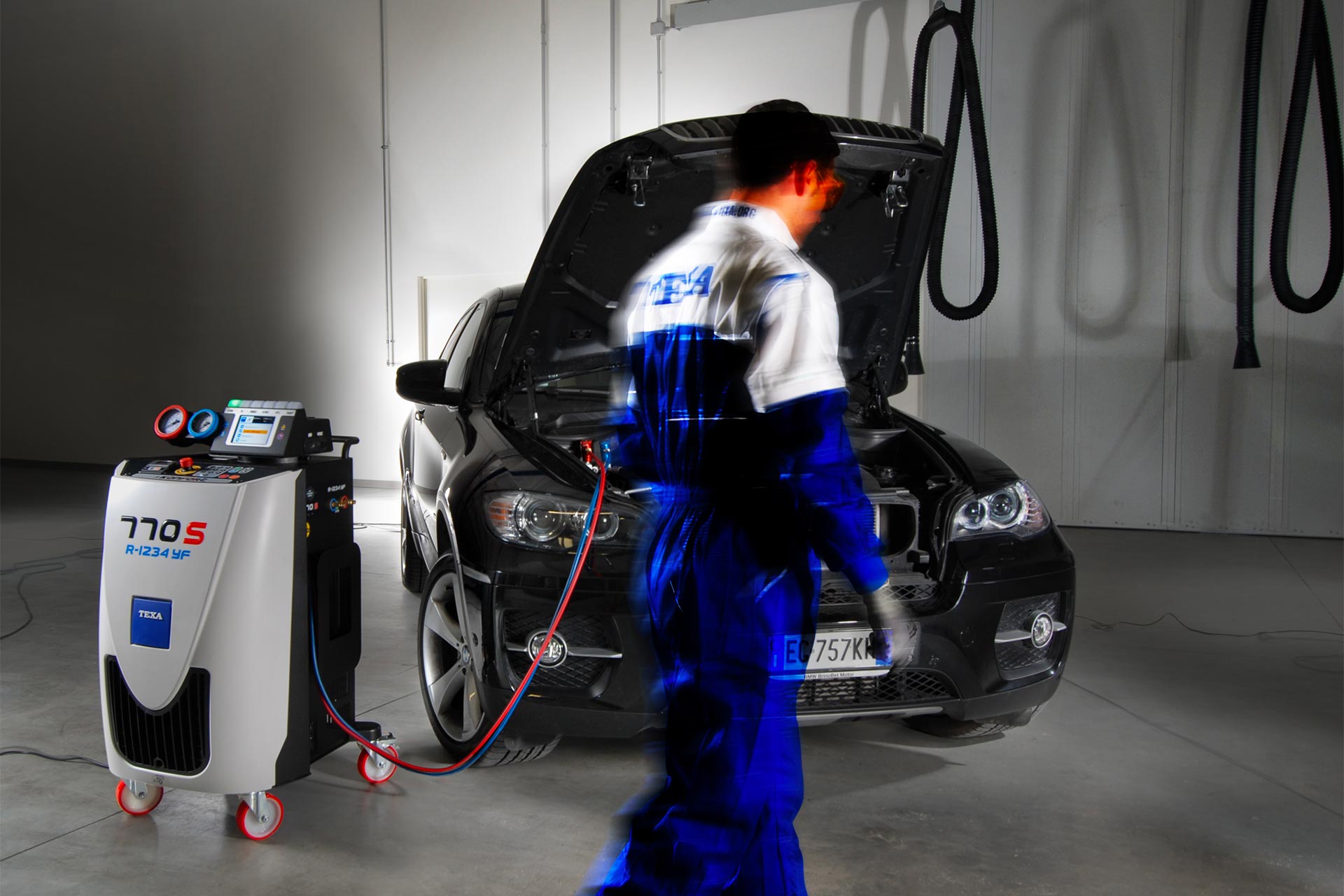

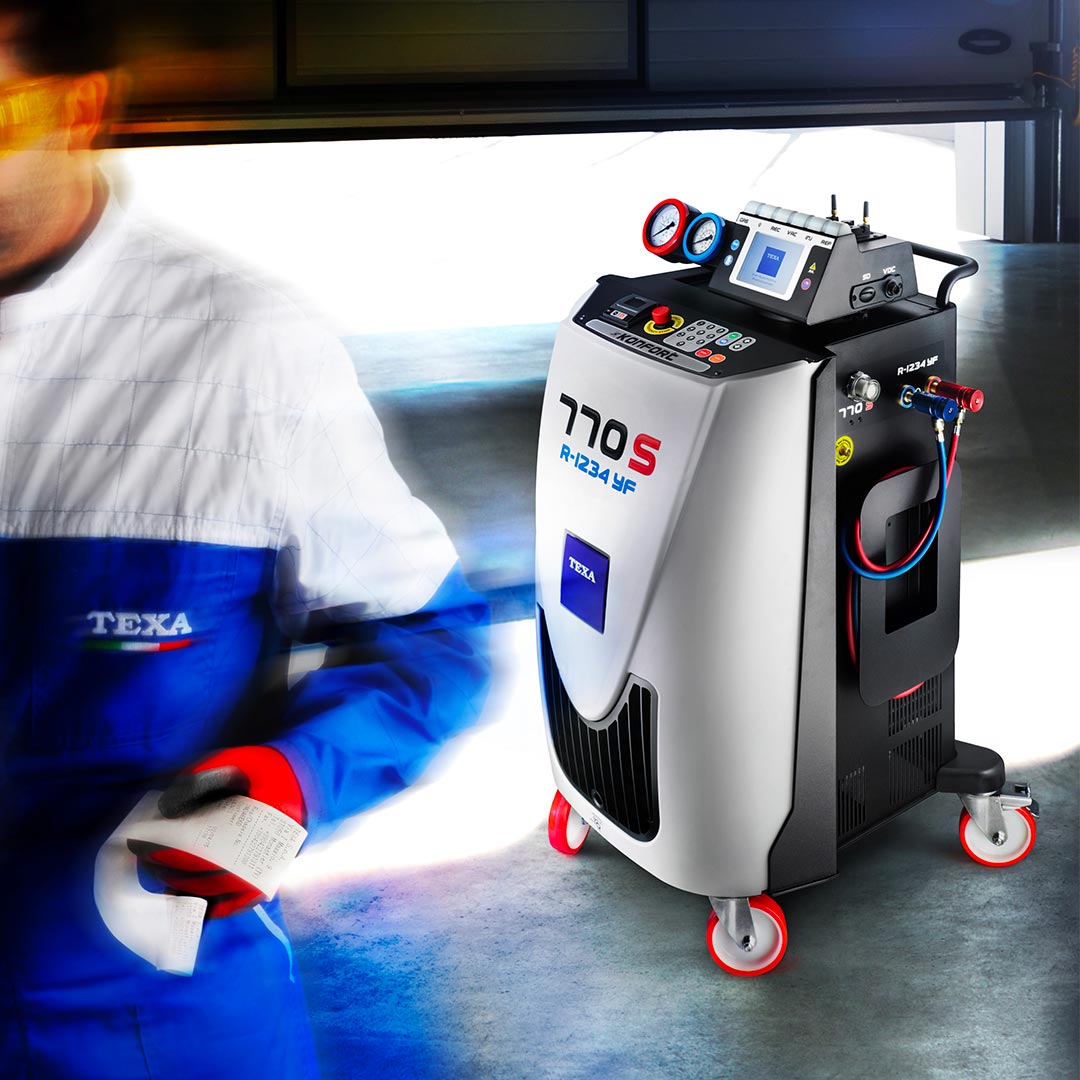

Approved and recommended by german vehicle manufacturers


The KONFORT 770S implements exclusive technological solutions to adhere to the specific German vehicle manufacturer requirements, with regards to safety and reliability under the European legislation for the new refrigerant.

The KONFORT 770S recharge station has been included in the prestigious ADI Design Index for 2012 as an example of excellent Italian design. The index is published annually by ADI, the Italian Association for Industrial Design.

The internal unit has been designed to ensure the service procedures for the unit are simpler with regards to oil changes or filters. The refrigerant tank is mounted on robust electronic scales with a locking system that prevents changes in calibration during transport or when moving around the workshop.

The KONFORT 770S is equipped with an automatic leak control system, linked to EN837 Class 1 certified gauges with an impeccable precision. The refrigerant scales guarantee that errors will not exceed +/- 15gr.

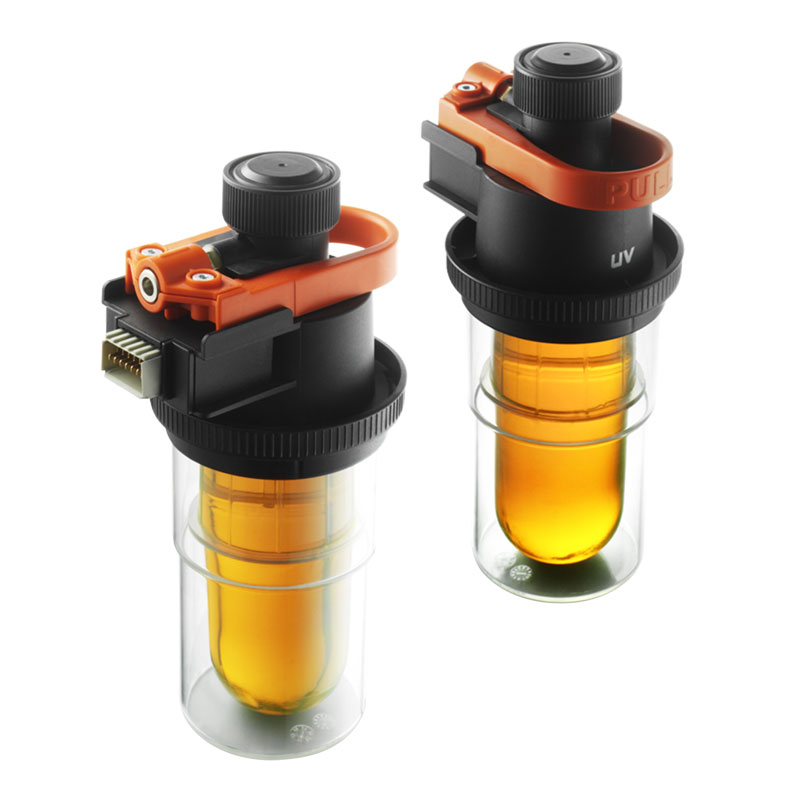

Standard oil bottles are not hermetically sealed, they always contain a percentage of air. The water molecules in the air bind with the oil and contaminate it. TEXA’s solution was
to create special containers which prevent the oil from becoming contaminated by air and humidity, which have been patented. These special bottles can be re-used thanks to a special system which removes the air from the bottle.


In order to guarantee safety and efficiency, it is important that each type of oil and refrigerant are not cross contaminated. TEXA have therefore developed a special automatic flushing function to clean the internal circuits of the service station.

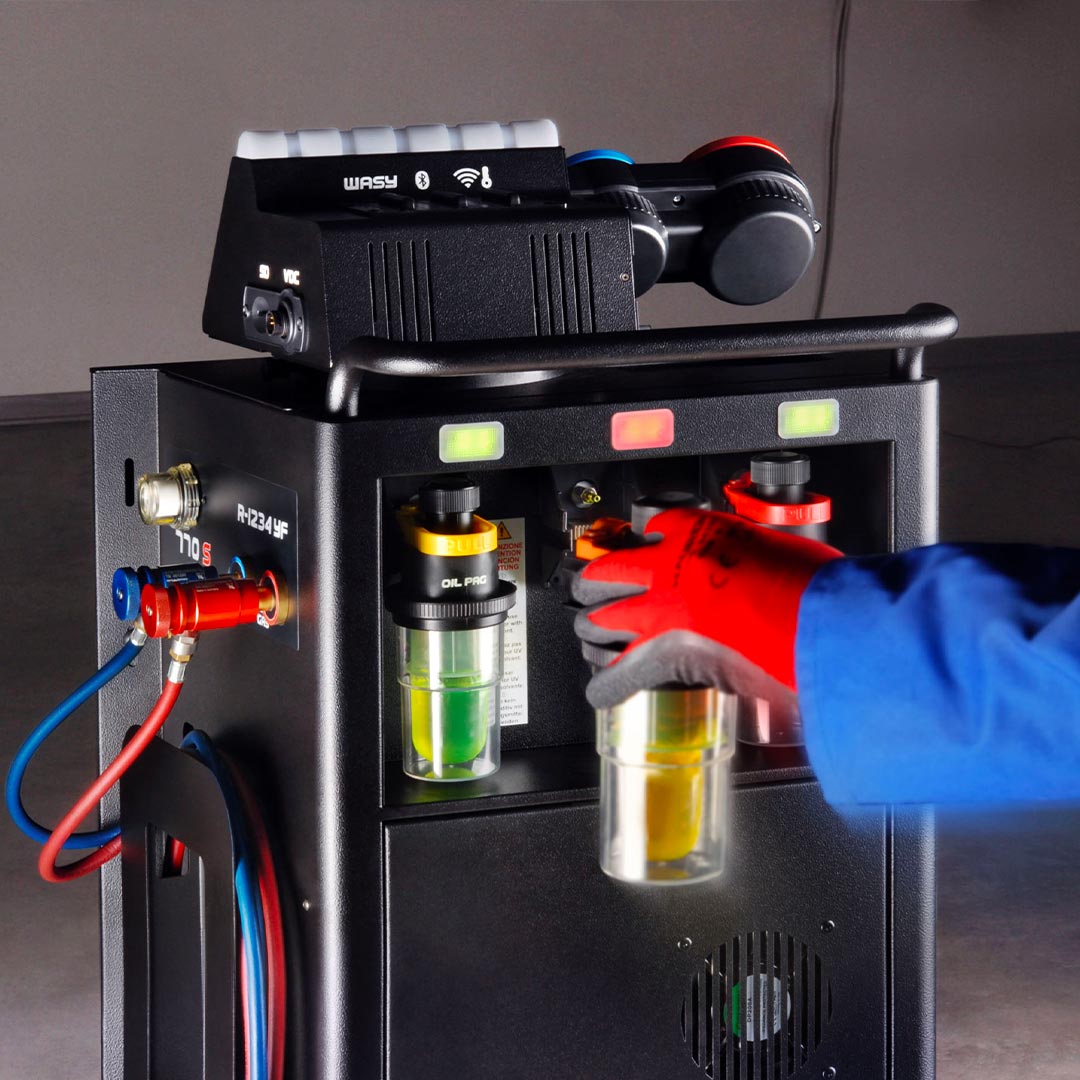

With the introduction of new vehicles, particularly electric and hybrid vehicles, new oils have been introduced for these applications. The correct oil type must be used relating to the air conditioning system to be serviced (eg PAG or POE). It is potentially damaging and dangerous to inject non-compatible oils into the system, so the operator must take care to avoid mistakes. TEXA has developed an automatic oil bottle recognition system which, by comparing the data contained in the vehicles database, signals if the incorrect bottle is in use.

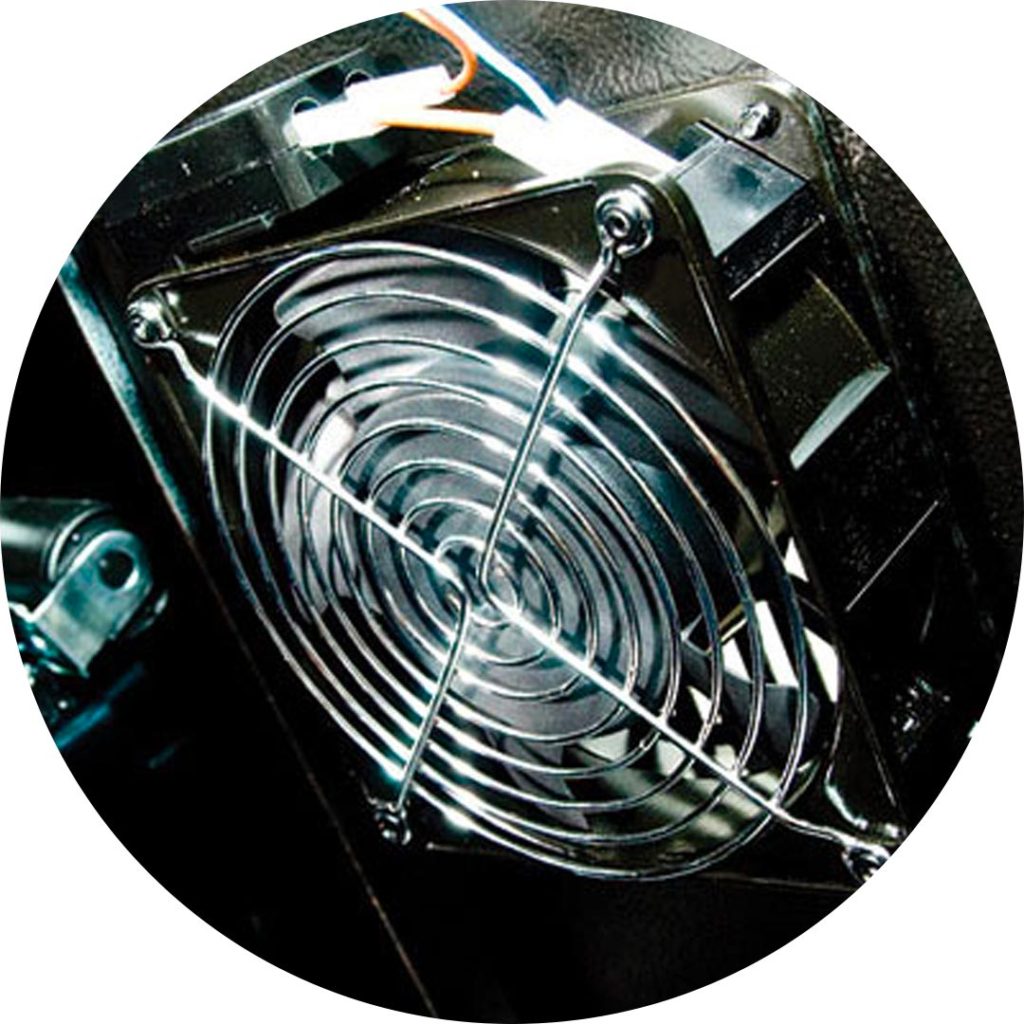

The new R1234yf refrigerant has been classified as being ‘highly flammable’ and this must be acknowledged by the operator. The KONFORT 700 series adopts a high efficiency redundant fan system to eliminate any possible refrigerant build up within the unit.


The KONFORT 700 range charging stations automatically carry out a double check for possible gas leaks from the tanks. All safety related operations take place automatically in order to eliminate errors.

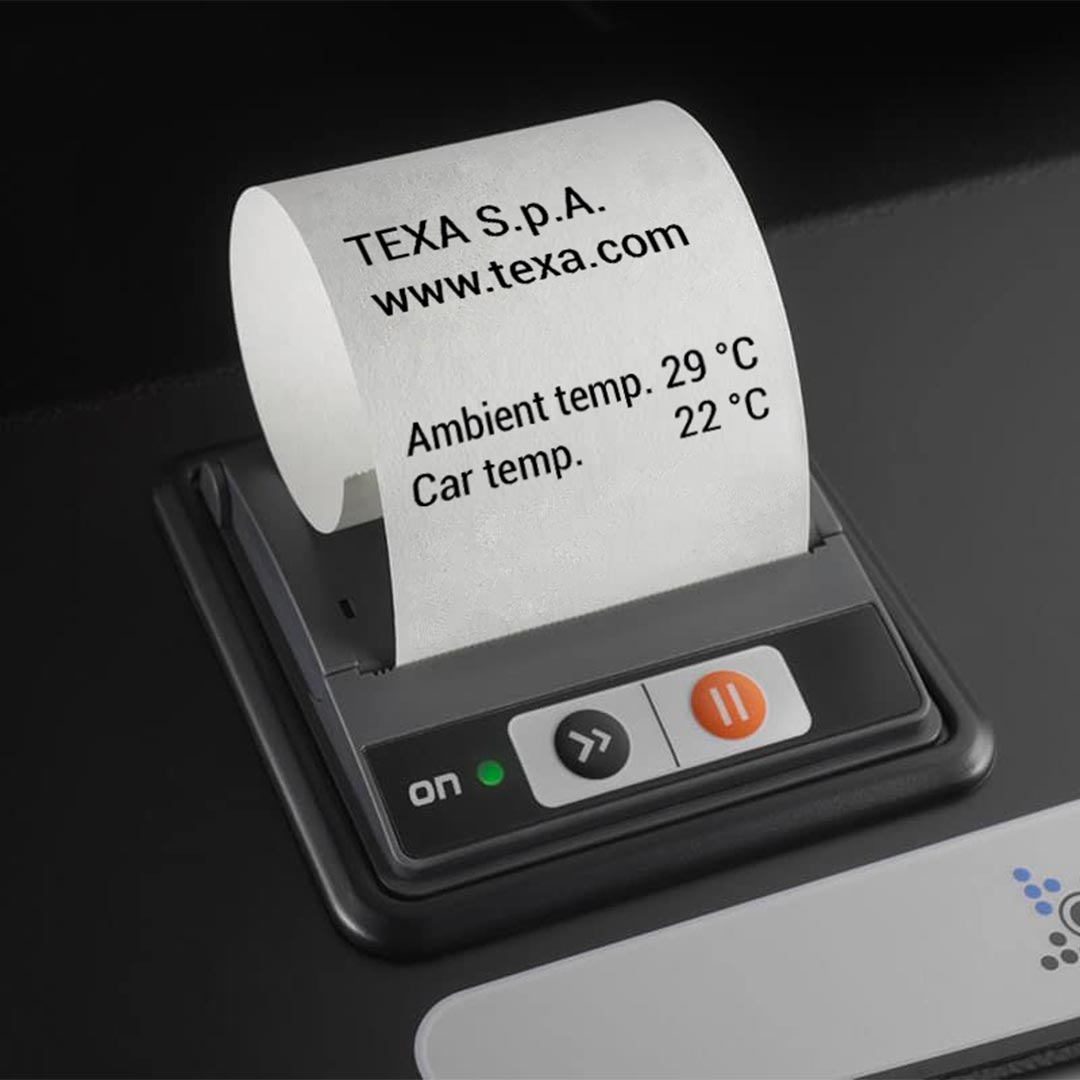

It is possible to install a very useful thermal printer, to generate at any time an accurate report of all the operations performed.

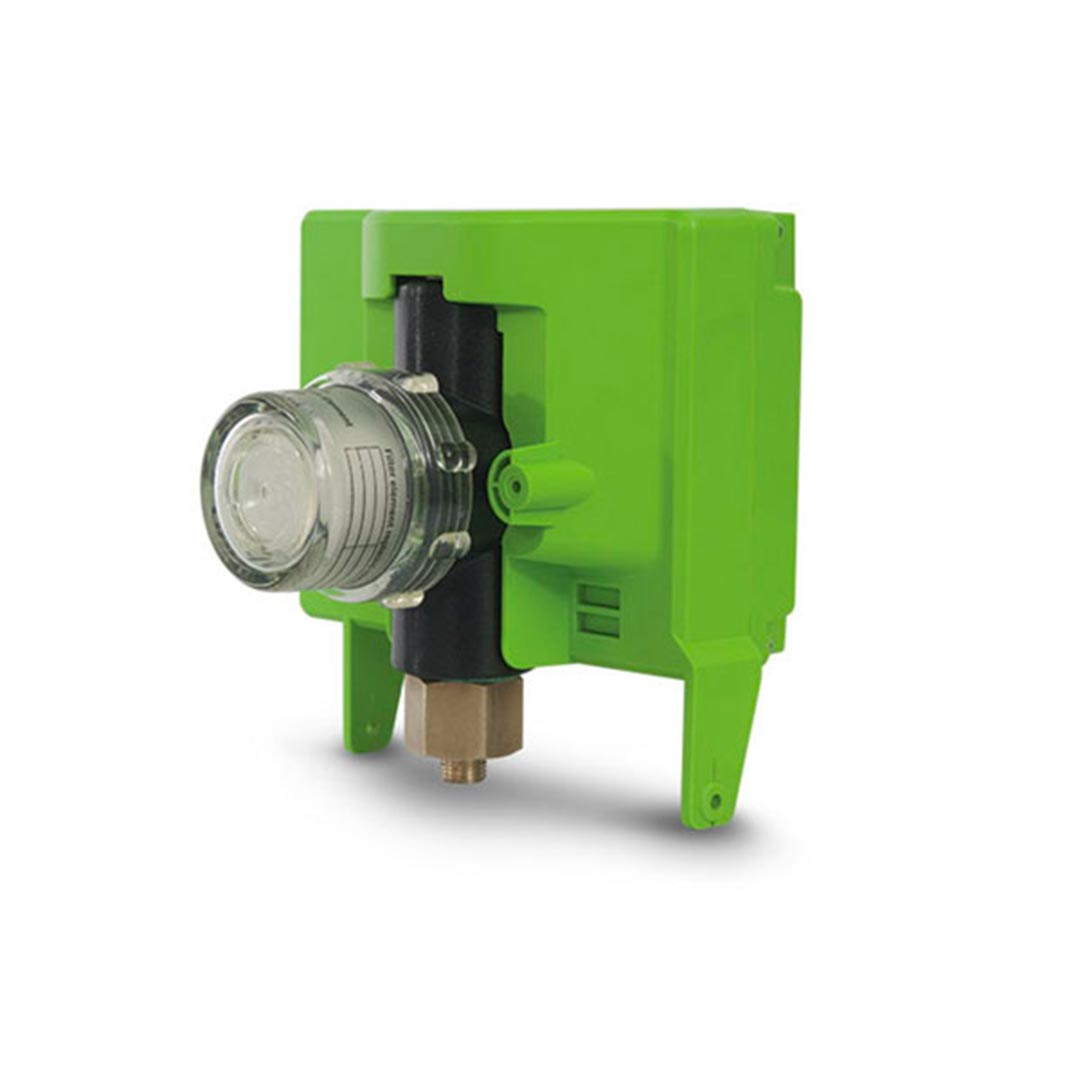

TEXA’s refrigerant identification system is based on NDIR (Non-Dispersive Infrared) technology and has been developed on the basis of a decade of experience in the production of exhaust gas analysis systems that are recognised as the best the market can offer in terms of accuracy and build quality.

TEXA is the only European company and the second worldwide to develop and produce a refrigerant identification kit especially for air conditioning recharge stations.

Special care has been taken to ensure that test results cannot be influenced by the surrounding environment, e.g. by the airborne hydrocarbon vapours and exhaust gases so often present in the garage environment.

Development of the system took over a year. Particular attention was paid to the algorithms that identify refrigerant types R134a and R1234yf. The TEXA system not only identifies these two refrigerants but ensures their purity too.


As far as safety is concerned, as soon as the service station is opened for inspection; a micro-switch system automatically locks electrical components.

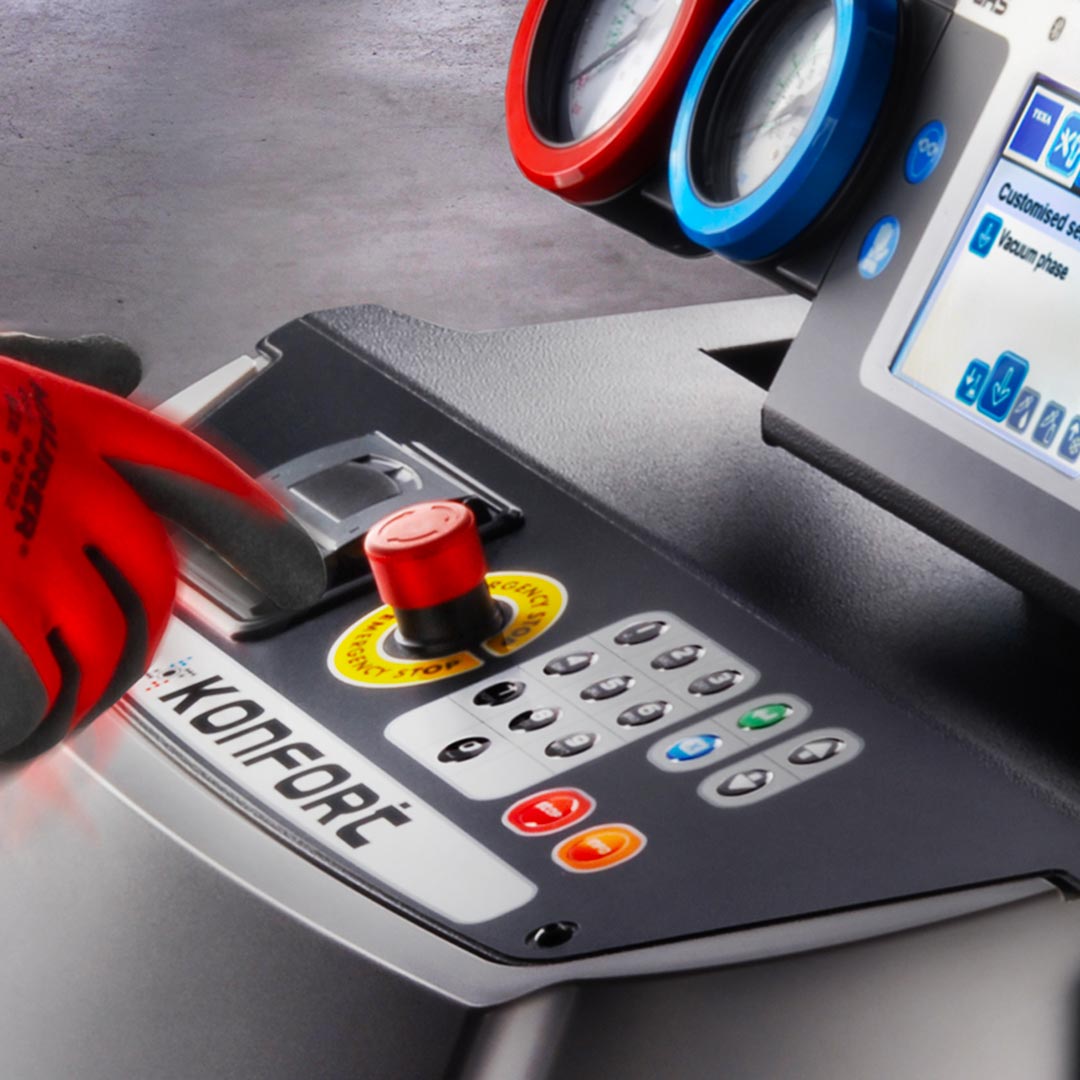

An emergency stop button has been added to the control panel which turns the machine off stopping all processes in progress. The entire upper console can be turned in order to be viewed, without having to move the whole service station (not-available in the German market).

The components used such as the innovative recovery group have exceptional features and they guarantee refrigerant recovery of over 95%.


TEXA operating software conforms to the strictest requirements of accuracy and precision.

Any possible faults or messages are displayed via detailed error messages. TEXA software manages the recovery and recharge processes, in order to guarantee precession that was previously unknown.

In particular, the automatic procedures assist the operator with repairs on highly sophisticated systems, such as those fitted on the new hybrid vehicles. All models have a removable SD card which allows communication with a Windows PC to update vehicle make and model database, check and certify all services and potential software updates.

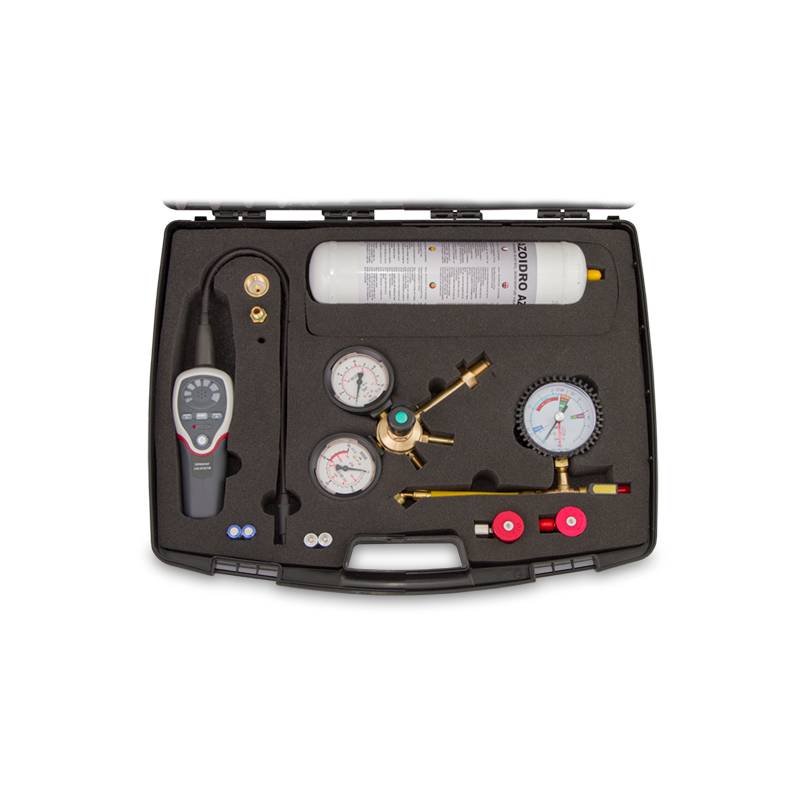

Forming Gas case

The Forming Gas case, included in the purchase of the Forming Gas cart TTF 700 as part of its instrumentation, it can also be purchased separately to support the KONFORT A/C recharge stations (760R, 760R BUS, 770S, 780R and 744) in the leak detection.

– Dimensions: 470x350x190 mm; Weight: 7 kg
– Set of adapters for the coupling of the Forming Gas tank
– Forming Gas tank pressure reducer: input operating pressure 300 bar max, output 100 bar max
– Connection kit for KONFORT 744 including: Forming Gas quick coupler, 2500-mm flexible hose for high pressure connection
– Connection kit for KONFORT 760R, 760R BUS, 770S and 780R including: 150 mm hose, evacuation valve, safety valve
– Teflon seals


REC+ is TEXA’s new, patented solution for recovering contaminated refrigerants from vehicle air conditioning systems.

The device works with the fully automatic recharge stations in the KONFORT range (780 TOUCH, 760 TOUCH, 760 BUS TOUCH, 720 TOUCH, 707R, 760R, 760R BUS and 780R BI-GAS) and guarantees the completely safe recovery of all kinds of refrigerant. REC+ can easily be moved around the workshop, satisfies the technical, performance and safety requirements of leading car makersand permits the recovery of up to 95% of the refrigerant contained in the system. An automatic procedure integrated in the software of KONFORT recharge stations lets you complete all necessary operations easily. At the end of the recovery procedure, you can discharge contaminated refrigerant into a tank for subsequent disposal.

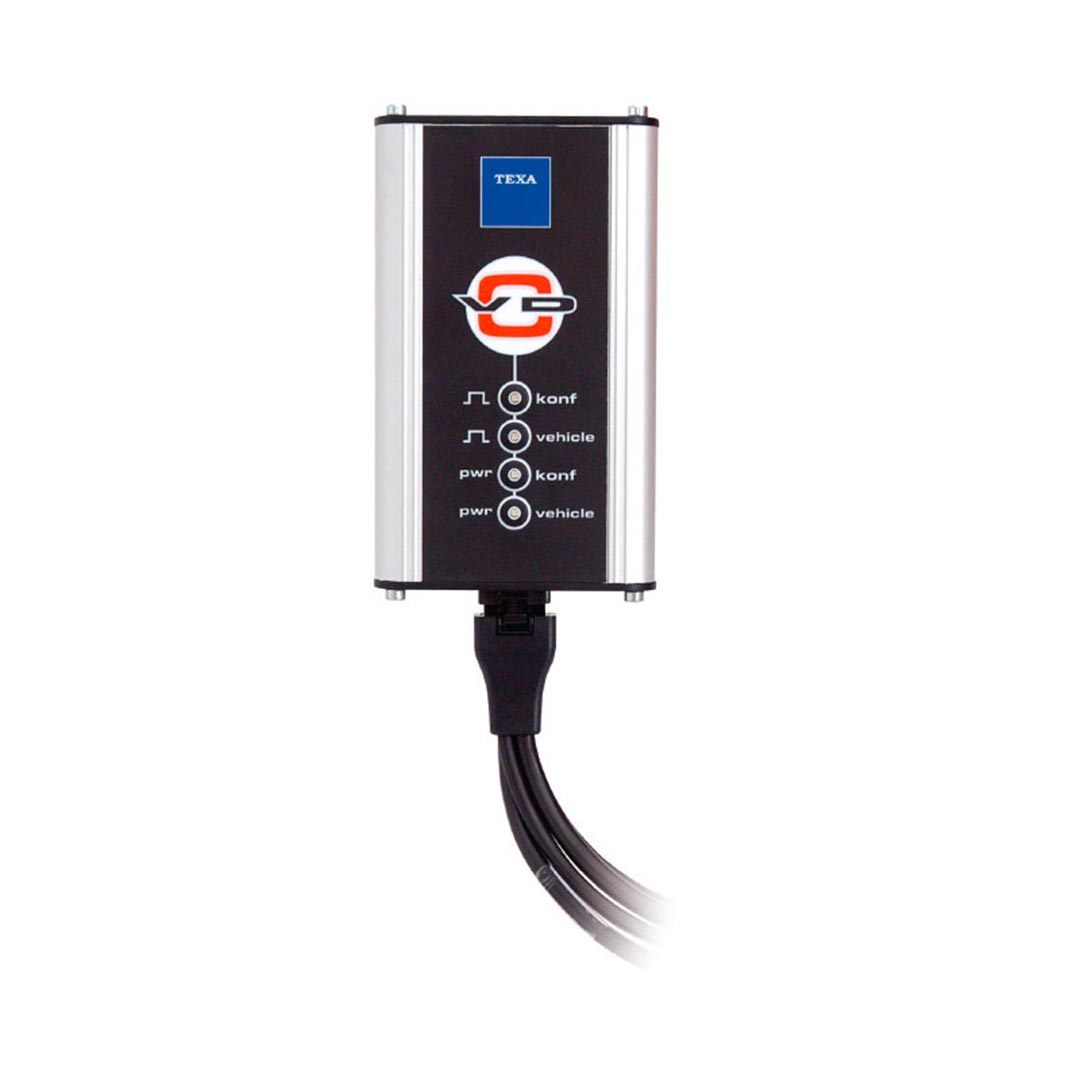

TEXA has developed a VDC interface (Variable Displacement Compressor) which allows air conditioning system with variable cylinder compressor to be tested.
The VDC allows the technician to intervene and modify the compressor control signal through the Konfort service station, to test the functionality of the system.

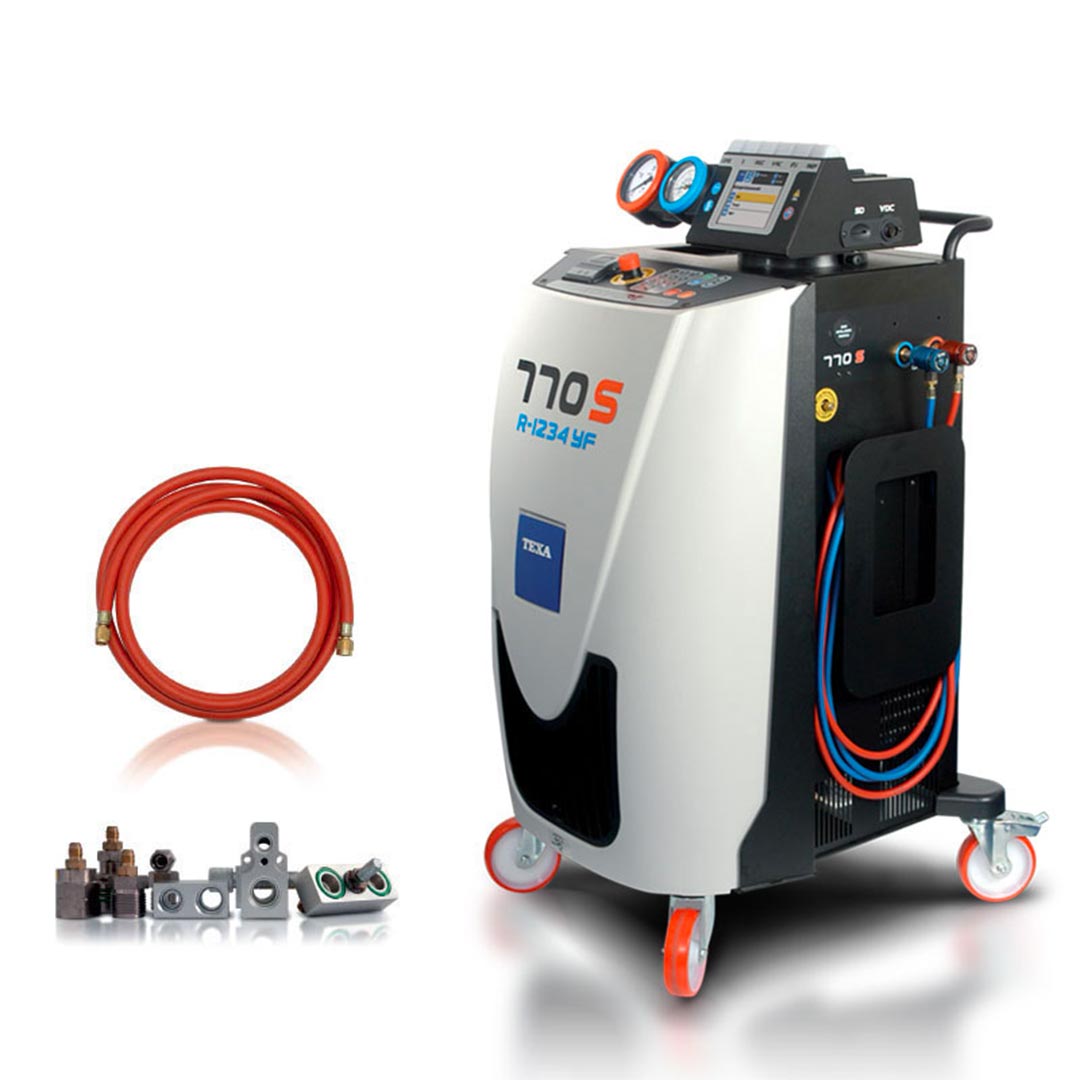

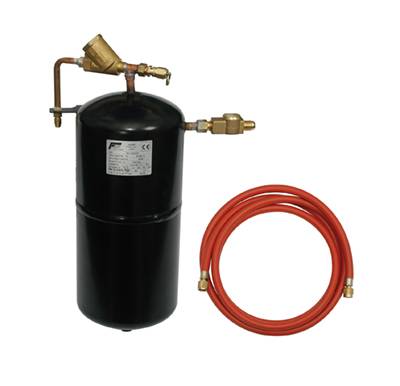

Flushing is the mechanical operation carried out to clean the air conditioning system components of a vehicle.

This includes:
• A supplementary 6lt capacity tank with a contamination indicator
• A stainless steel filter which is easily removable for cleaning
• 5mm diameter hoses flushing hose
• Universal adapter case

Prodotto da inserire all’interno del sistema per il trattamento dei gas di climatizzazione di autoveicoli KONFORT.
Verificare con il proprio rivenditore TEXA di fiducia le modalità di accesso al Nuovo Piano Industria 4.0.

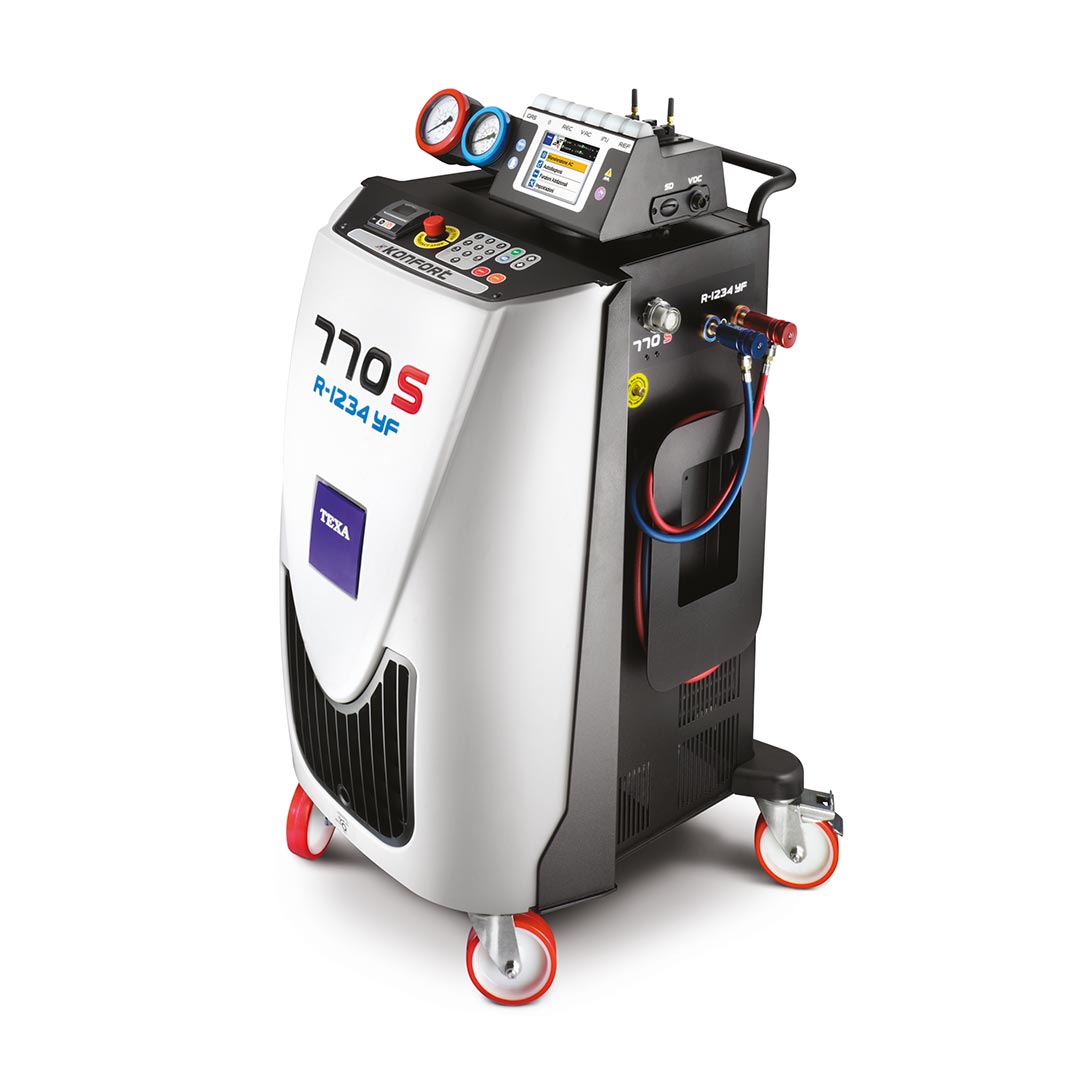

Technical Specifications

R1234yf compatible
• High visibility colour TFT display with interface Graphics
• Rotating CL1-display gauge group (excluding Germany)
• 20 Kg tank
• Dual stage vacuum pump
• High efficiency refrigerant recovery (over 95%)
• Charging accuracy +/- 15gr
• Hermetically sealed oil bottles (patented)
• Automatic high precision oil injection
• Automatic bottle recognition (patented)
• Automatic precise oil measurement check (patented)
• Scale lock system
• Thermal printer
• Automatic service management
• Multi-lingual software coverage
• Service hose length compensation
• Automatic maintenance alarm
• Simplified service
• Automatic non condensable management
• Built-in refrigerant identifier
Customized service
My database
Vehicle flushing kit
VDC kit

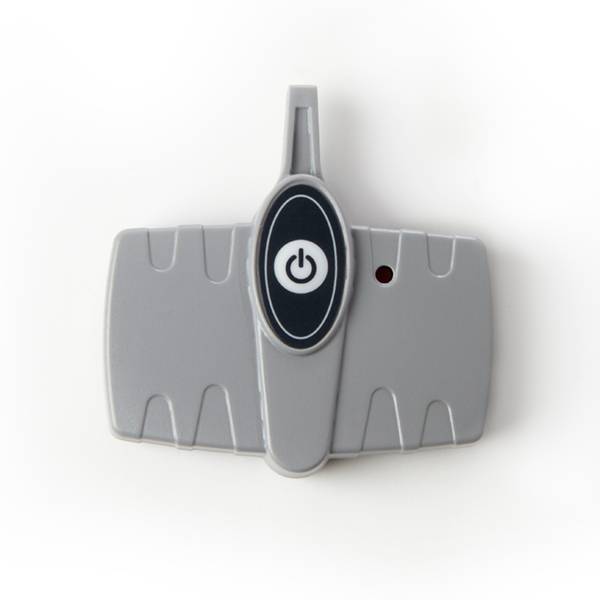

Climate efficiency kit
