AXONE VOICE

The first hands-free diagnostic tool 2 in 1

A new era: the hands-free revolution

AXONE VOICE is the first hands-free solution in the world of multi-brand and multi-environment diagnosis.

It is a tool that adds the benefits of fixed workstations (power of calculation, size of the screen and possibility to be powered continuously) to the ones of portable diagnostic devices and increases their potential thanks to the innovative ways of interaction that you can get the most out of for your work.

Voice control,
face recognition:

AXONE VOICE is the first display unit with voice control*, a function developed in collaboration with Microsoft® designed to support you throughout the different phases of your work.

It is also the first tool that uses face recognition to safely identify who is using it, unlocking a series of exclusive functions to access the protected diagnostic procedures provided by the manufacturer.

*Voice control function is available only on selected languages. It requires an Internet connection and an active TEXPACK subscription

For further information visit the page AXONE VOICE Privacy

What can you do with your voice?
More than you think.

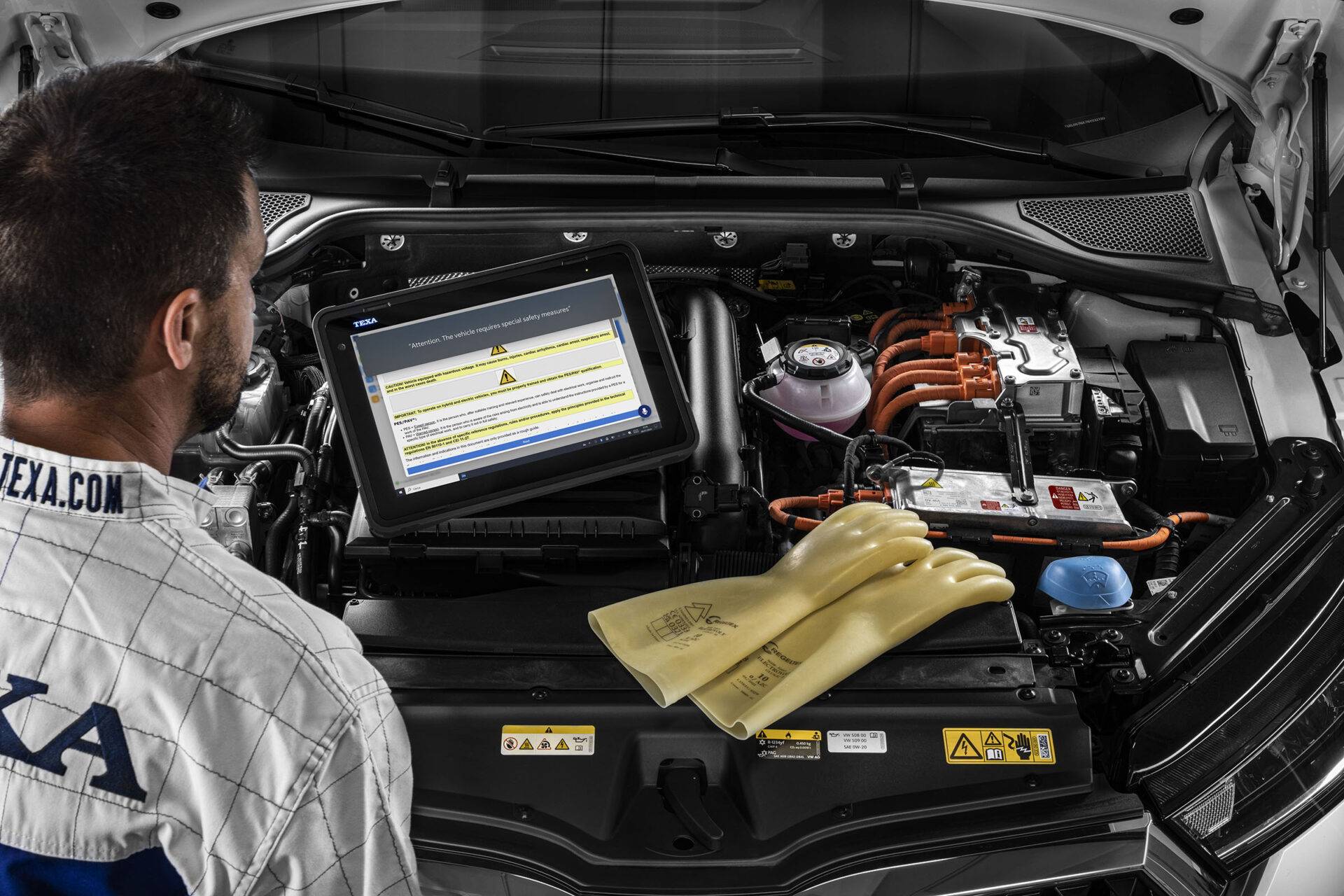

AXONE VOICE can tell you what to do in any situation, even in the one in which specific safety requirements are needed, both for the vehicle and for you.

You do not have to touch the tool, simply say “Hey TEXA” and the command you need.

But this is not it! AXONE VOICE is proactive because it spontaneously guides you through the diagnostic activities: after the selection or after the vehicle scan, AXONE VOICE directly suggests the services available, making the diagnosis work easier and quicker.

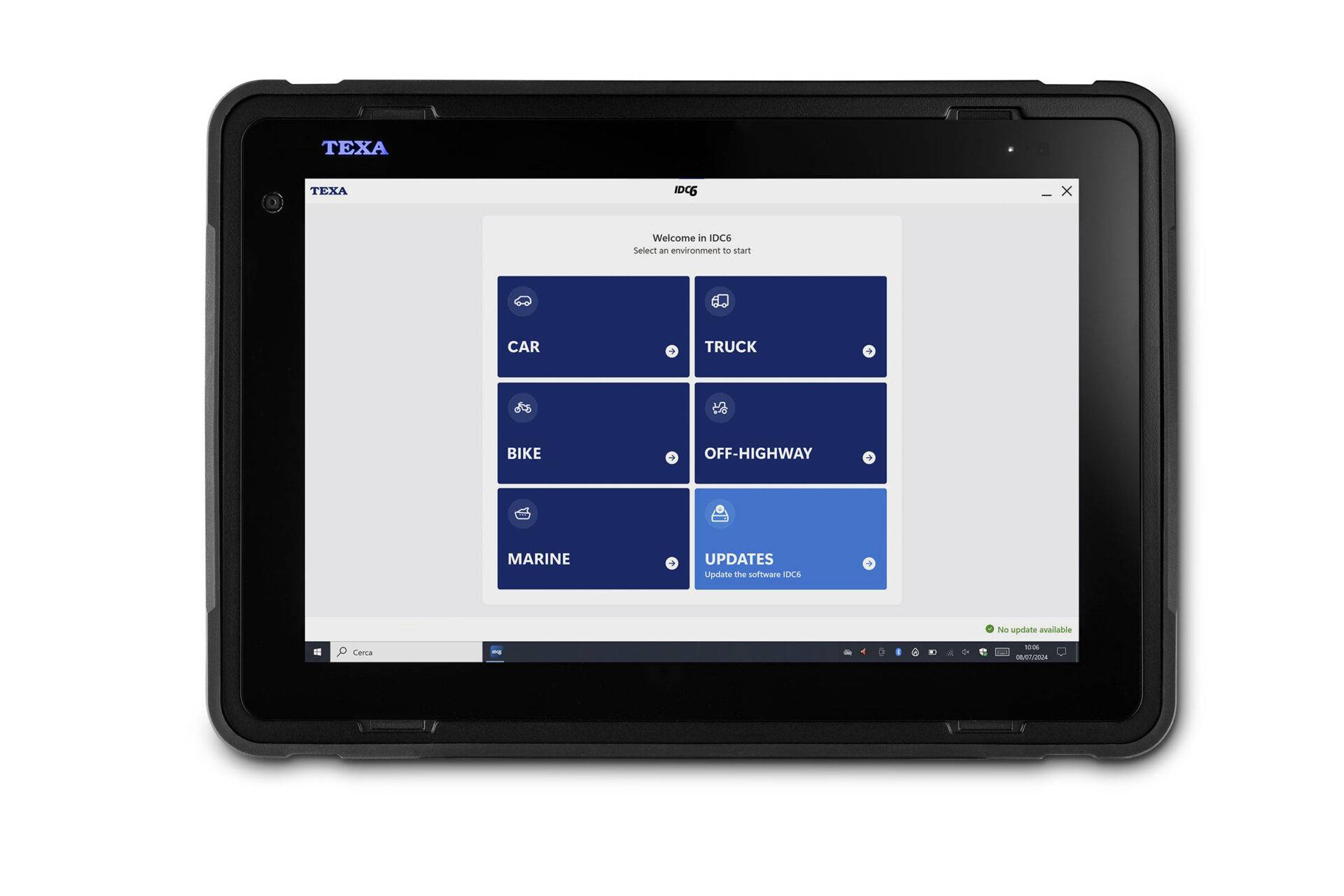

The diagnosis and database are on the big screen

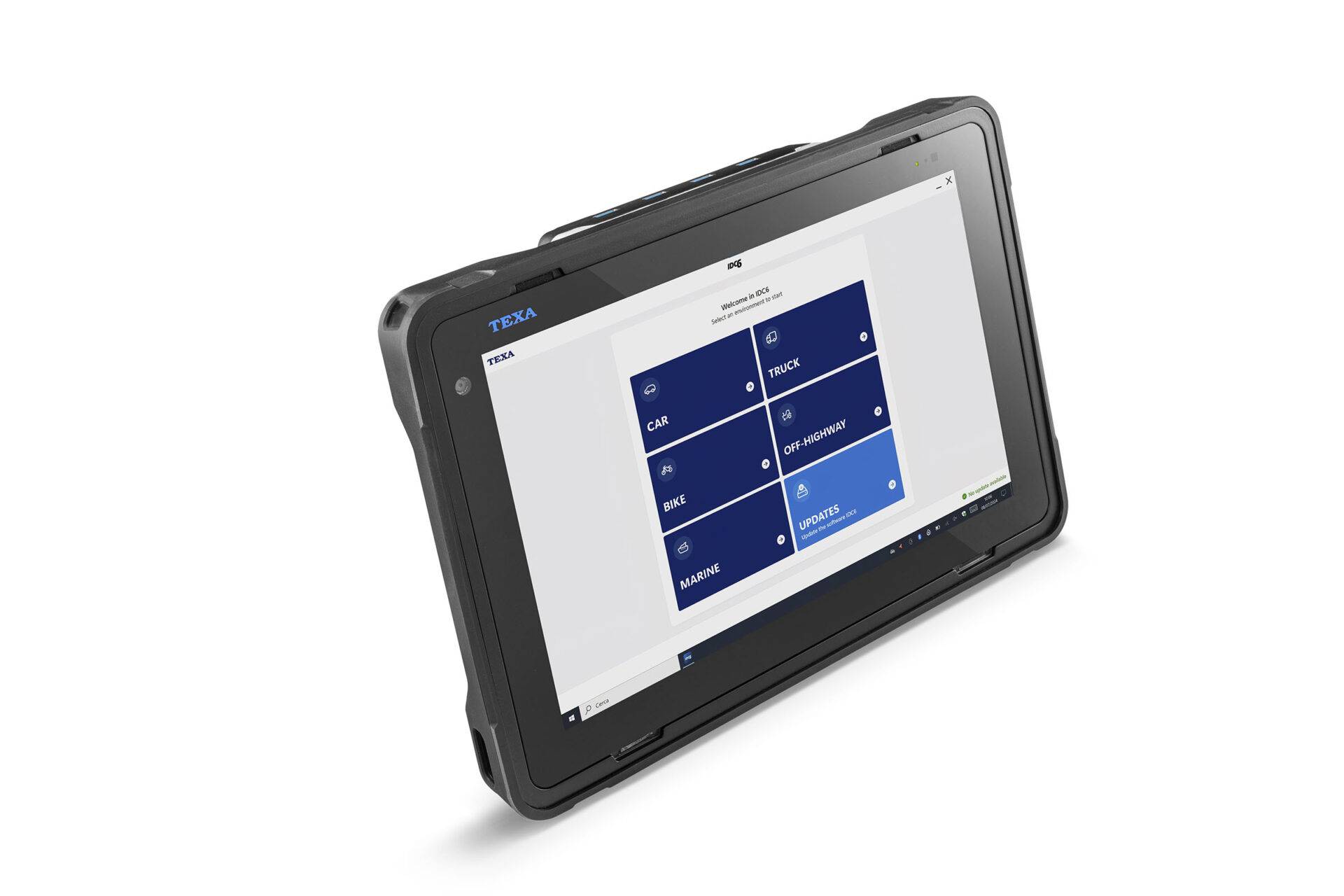

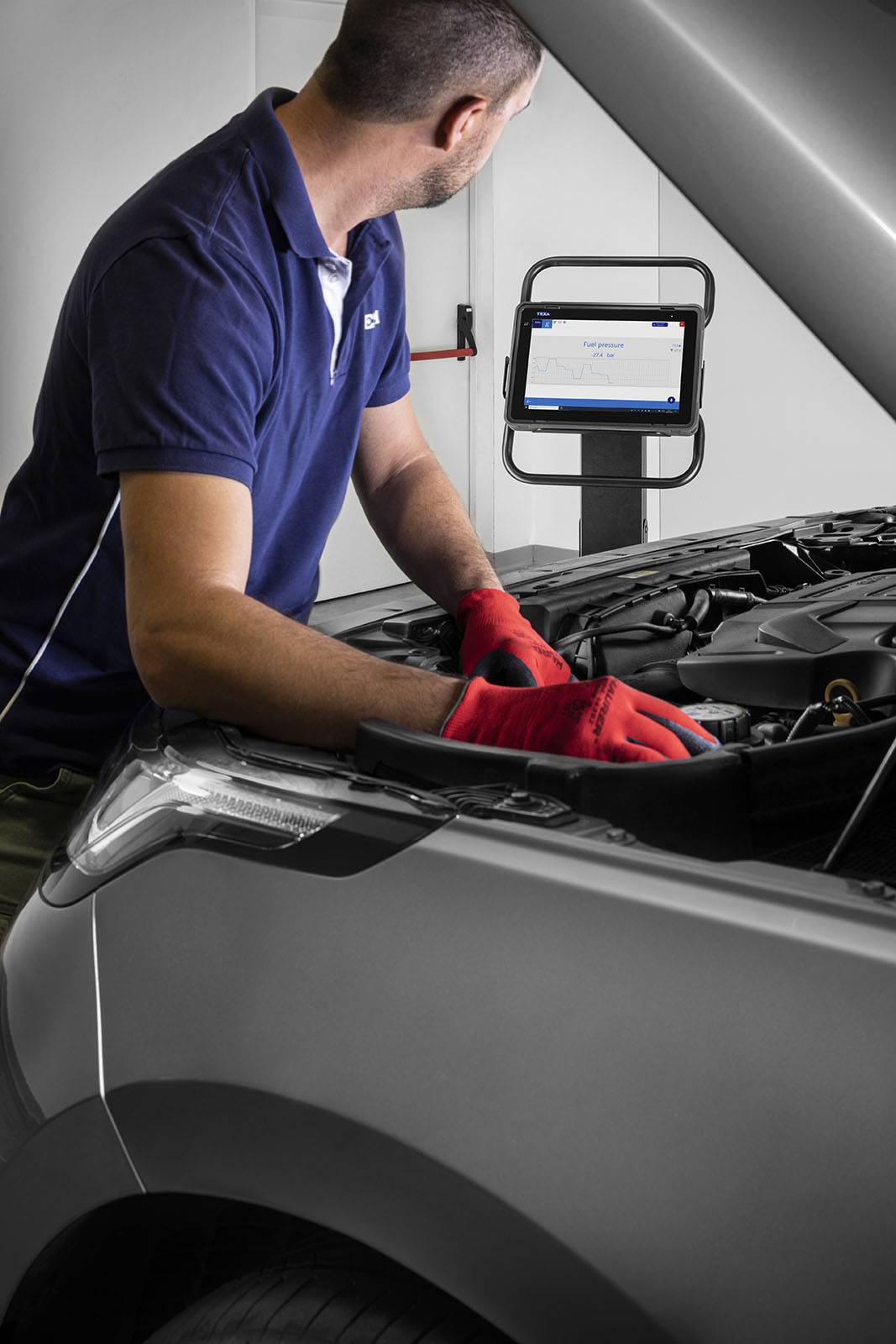

AXONE VOICE is equipped with a 13.3” multi-touch screen, one of the biggest among the display units on the market with a maximum resolution of 2560×1600 pixels.

It guarantees optimal visibility in any conditions of use and at longer distances compared to traditional tablets, without interfering with the repair activities.

Other than talking and listening, it flexes its muscles
AXONE VOICE boasts exceptional technological features

Bluetooth® 5.1 and
Dual Band Wi-Fi connectivity
Intel® Core i5 CPU
2560x1600 px
Resolution
2 Cameras
Front: 8 MP
Rear: 8 MP AF with FLASH
Gorilla® Glass 13.3”
DISPLAY
Body in magnesium
512 GB storage
SSD PCle
16 GB LPDDR4
RAM
12500 mAh
lithium battery
Intel® Iris® Xe
Graphics card

AXONE VOICE was built to become the most powerful and high-performing diagnostic display unit on the market.
And looking at its equipment, it surely seems that the goal has been reached.

It is equipped with a 13.3” capacitive screen with 2560×1600 resolution, protected by a robust Gorilla Glass. On its insides, the Windows 10 Enterprise operating system is powered by an Intel® Core i5 processor with 16 GB RAM and 512 GB storage.

The connectivity, another essential element for a display unit like AXONE VOICE, is possible thanks to an advanced dual-channel Wi-Fi system and to a Bluetooth® 5.1 module. Furthermore, the tool has two 8 MP cameras, useful to obtain detailed customer reports or send technical photos to the assistance service.

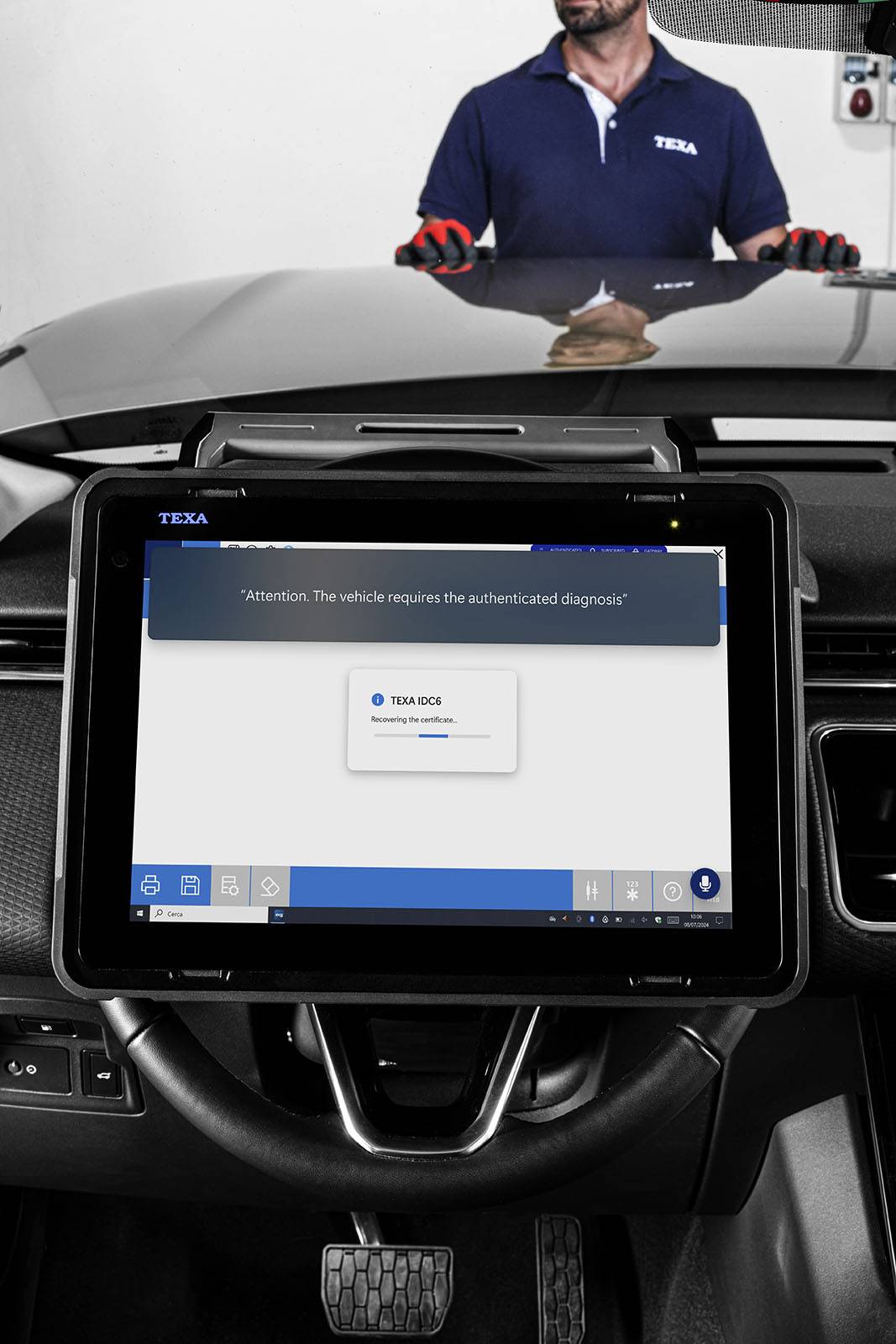

Why is it very easy to carry out the PassThru diagnosis or authenticated diagnosis using AXONE VOICE?

When connecting to the vehicle manufacturer’s website, for example to update an electronic control unit in the vehicle, the diagnostic tool must remain connected to the Internet and to the mains even for several hours using up a considerable amount of energy.

With AXONE VOICE this will no longer be a problem and the Internet connection will remain stable and 100% compatible with the specifications by all manufacturers.

Furthermore

CAMERAS

AXONE VOICE is equipped with two 8 MP cameras, one in the front and one in the back.
The first one is used for the face recognition, the second one is more useful during remote assistance to allow the TEXA Call Center to see in real time the conditions of the vehicle, even to check its correct positioning during the ADAS calibration.

MAGNETIC DOCKING

You can expand the connectivity of AXONE VOICE with four 3.0 USB sockets, essential for connecting for example to the VCI for the PassThru diagnoses, or to other external devices such as a keyboard, a printer, etc…

HANDLE

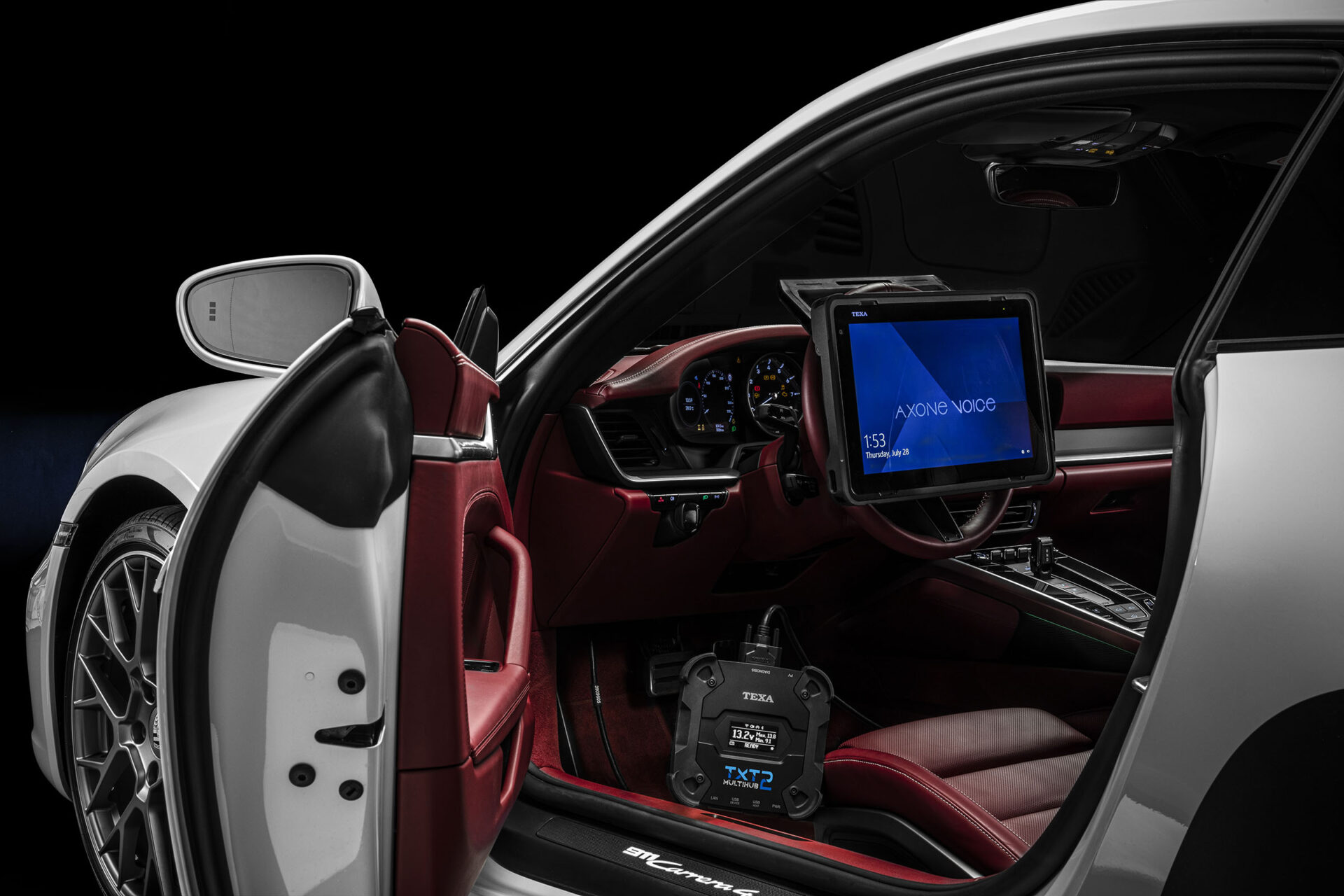

A practical ergonomic and adjustable handle useful to transport AXONE VOICE, to fasten it to the vehicle’s steering wheel or to lay it onto irregular surfaces maintaining an optimal visibility of the monitor by repair technicians.

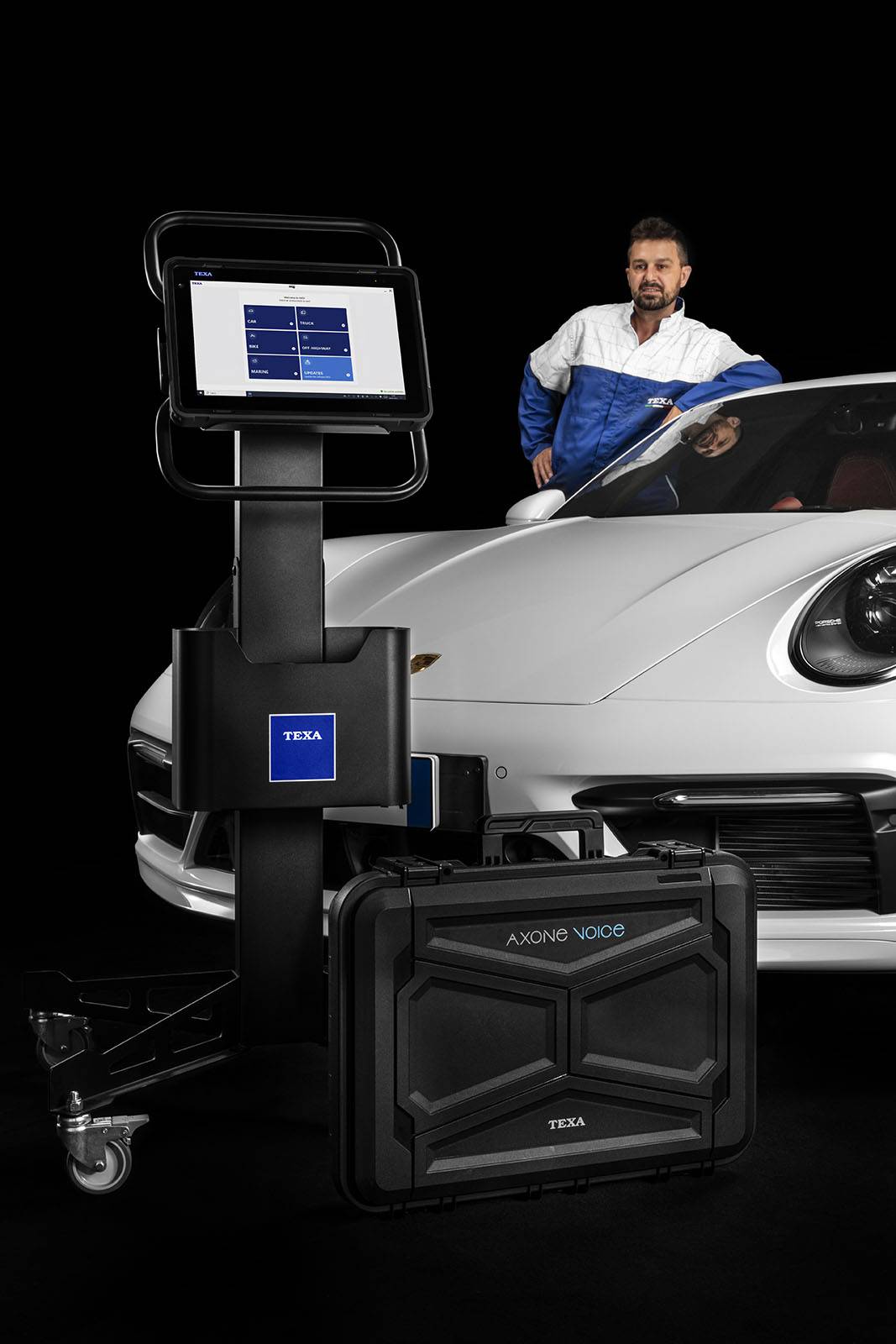

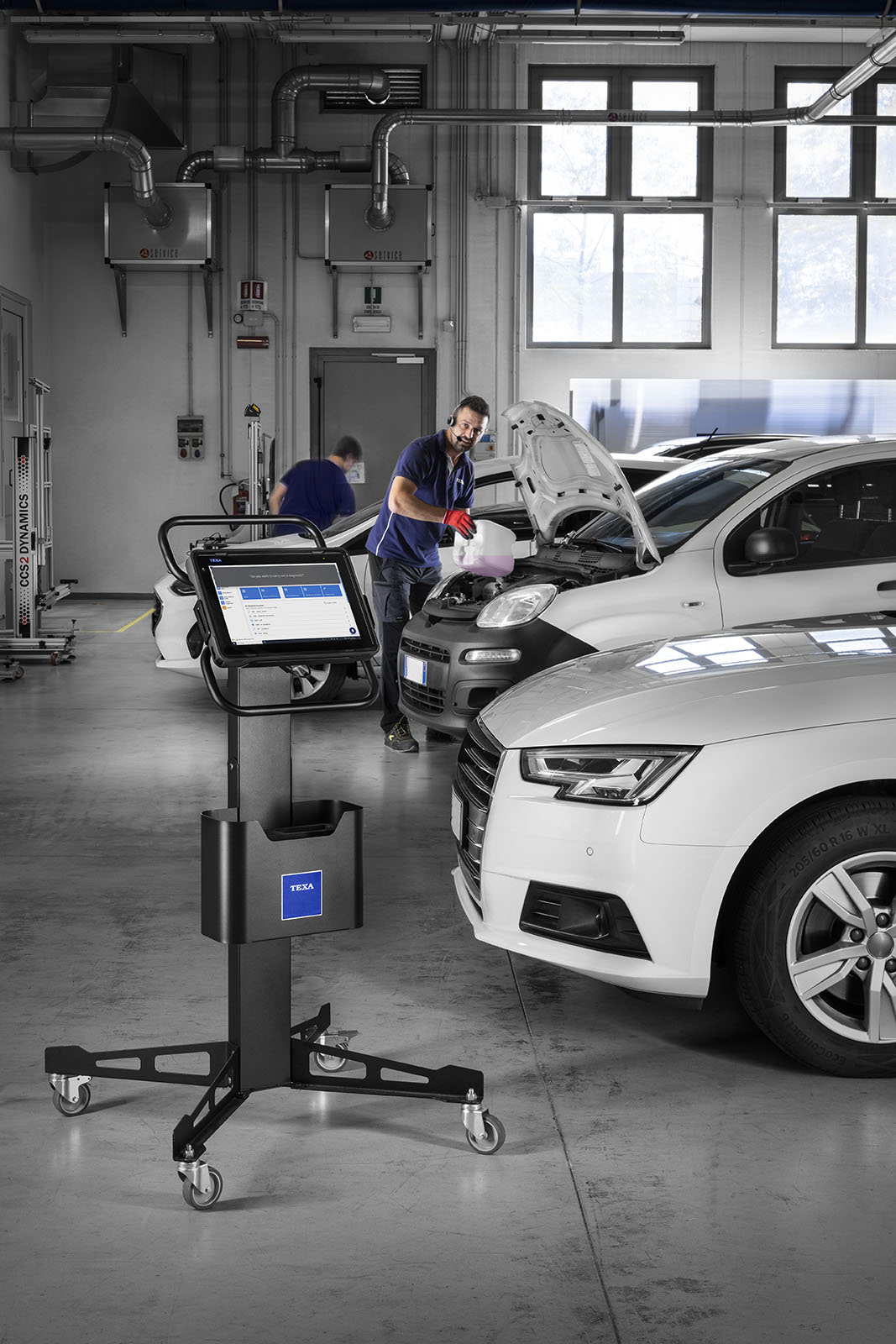

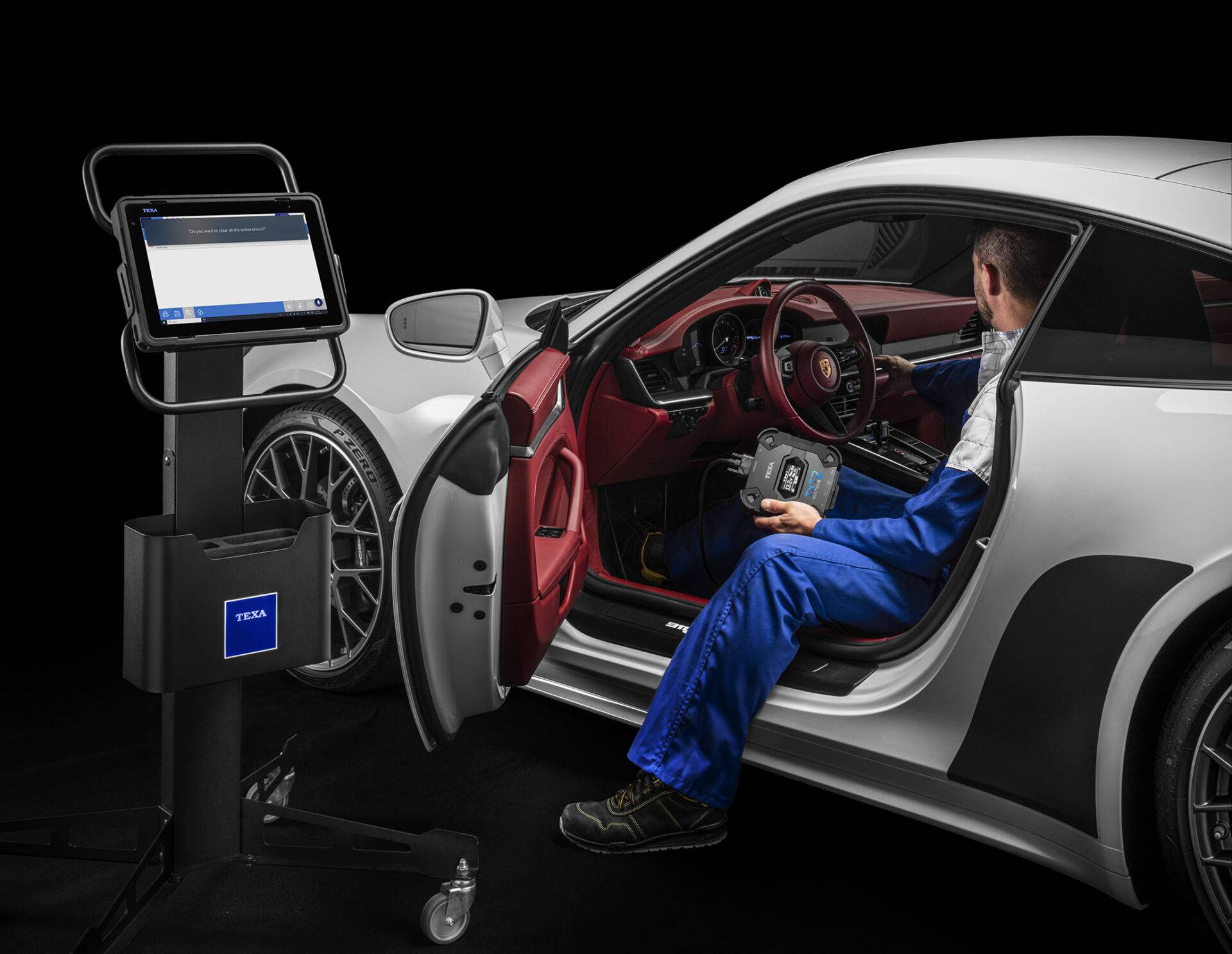

CART WITH A TILTING SHELF

It is useful to hold and keep AXONE VOICE charged when it is connected with the vehicle manufacturer portals.
The auxiliary cooling fan in direct contact with the magnesium case favours keeping it cooled when used for long periods of time.

Prodotto da inserire all’interno del sistema per il trattamento dei gas di climatizzazione di autoveicoli KONFORT.
Verificare con il proprio rivenditore TEXA di fiducia le modalità di accesso al Nuovo Piano Industria 4.0.

Technical Specifications

DISPLAY AND RESOLUTION
Gorilla® Glass 13.3” screen
High resolution: 2560×1600 (up to 400 cd/m² ) 16.7 M of eDP colours
Multi-touch support up to 10 points simultaneously

OPERATING SYSTEM
Windows 10 Enterprise

PROCESSOR
(Generation – Model and type)
Intel® i5 8M cache, TGL UP3 i5-1145G7E “Tiger Lake”
1.5-4.1 Ghz Turbo Boost – Quad Core 15W

GRAPHICS
Intel® Iris® Xe Graphics

COOLING
Fanless

RAM storage
16 GB LPDDR4 dual channel 3200 Mhz

MEMORY CAPACITY
512 GB SSD 2280 PCIe Gen3.0 x 4 lane NVMe

CERTIFICATIONS
EC brand / NEMKO RED / electrical safety SUD TUV brand / RoHS
regulation compliant
US electrical safety cTUV NRTL – USA + Canada
FCC / IC certification – USA + Canada
Proposition 65 compliance – California
MIL-STD 810G (TRANSIT DROP TEST)

STRUCTURE
In magnesium

BATTERY
Li-ion battery – 7.2 Volt 90 W/h (12500 mAh)
(10 hours of operation in standard use conditions)

BUILT-IN INTERFACE
GNSS

SENSORS
Accelerometer; eCompass; Gyroscope; Barometer; Altimeter;
Ambient light sensor, magnetic

CONNECTIVITY
Dual band 802.11ac Wi-Fi, Bluetooth® 5.1 Intel AC9260

EXPANDABILITY
4x 3.0 USB ports (max output current 2000 mA)

CAMERAS
Rear: 8 MP AF with FLASH – Front: 8 MP

SIZES AND WEIGHT
360 x 250 x 34 mm / 2.3 Kg

WARRANTY
2 years
