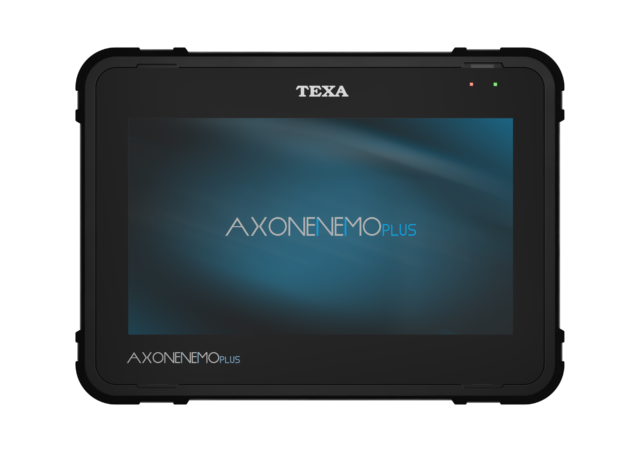

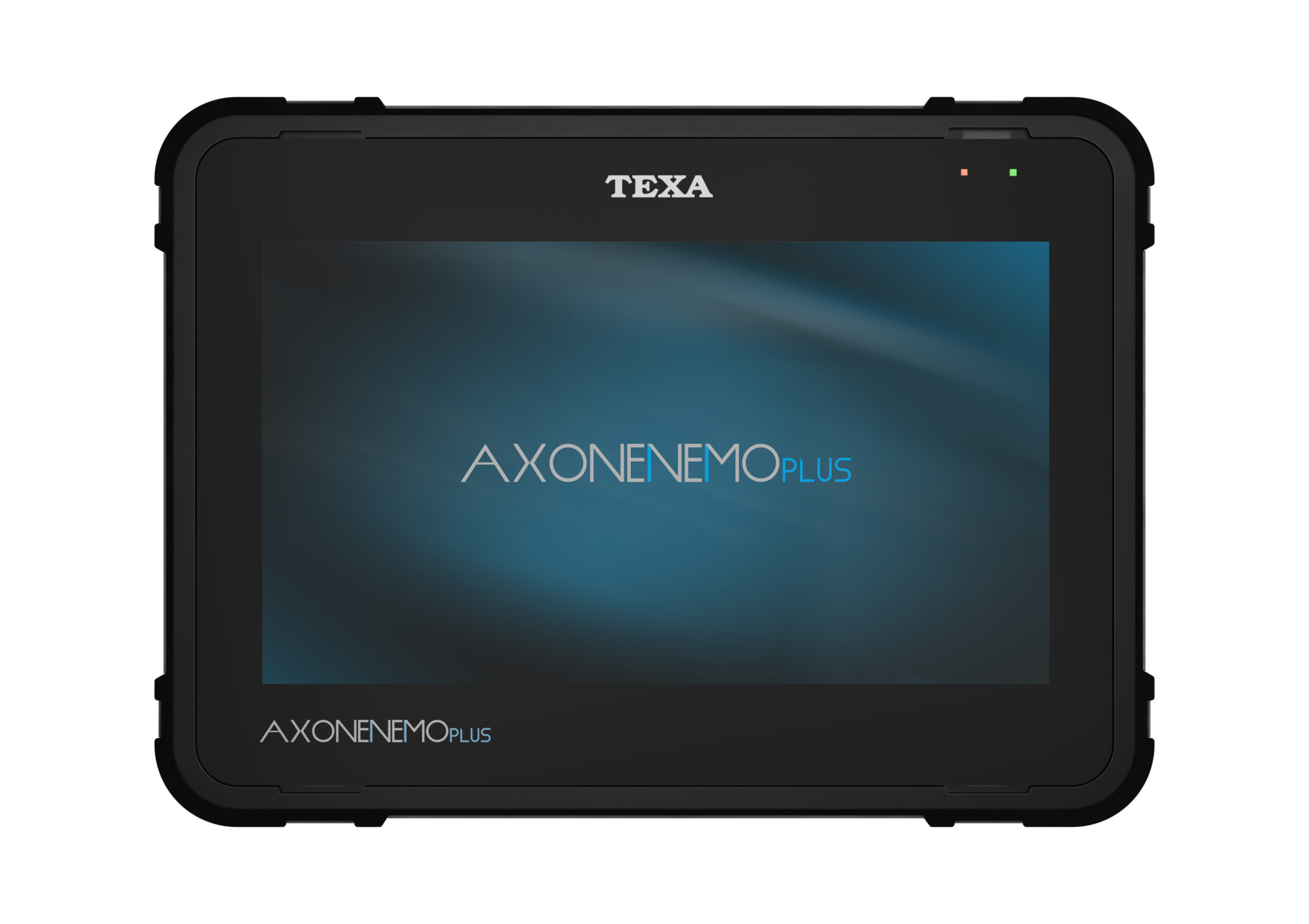

AXONE NEMO PLUS

Robust. Practical. Quick.​

Your ally in the workshop

AXONE NEMO PLUS offers an unrivalled diagnostic experience. Its robustness and reliability ensure a hassle-free use, besides a greater durability than a conventional tablet. Thanks to its unique features, it is the ideal tool to improve the efficiency and expand the possibility to operate on any type of vehicle.

AXONE NEMO PLUS is equipped with the Windows 11 operating system for an unprecedented operability.
The Intel® N100 processor, the 16 GB RAM and the 250 GB SSD storage guarantee extraordinary performance and an instant response speed.

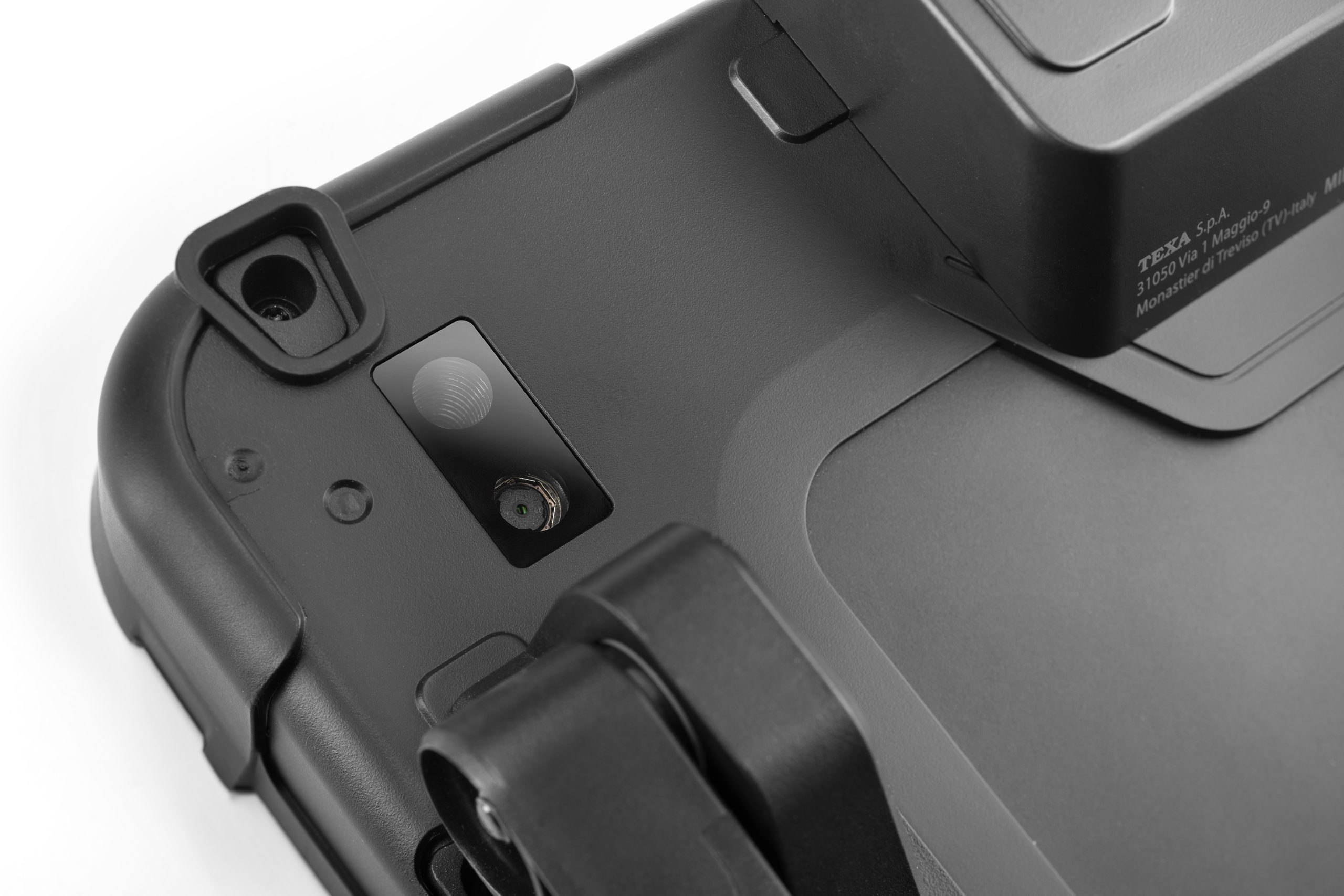

Thanks to the latest-generation Wi-Fi, it can connect to the company’s Internet network to view online contents. The Bluetooth® 5.3 module provides the flexibility of a rapid connection to the TEXA vehicle interfaces. With the built-in camera, it is very easy to capture every detail of the maintenance operations at any moment, to create reports that can be handed over to customers, or technical photos that can be rapidly sent
to the technical assistance.

DISPLAY

11.6" Ultra Wide

Resolution

1920x1080 pixel

Rugged design

Body in magnesium

CPU

Intel® N100

RAM 16GB

DDR5

Storage 250 GB

SSD PCIe

High-capacity battery

6990 mAh

A display with a view,
on all diagnostics

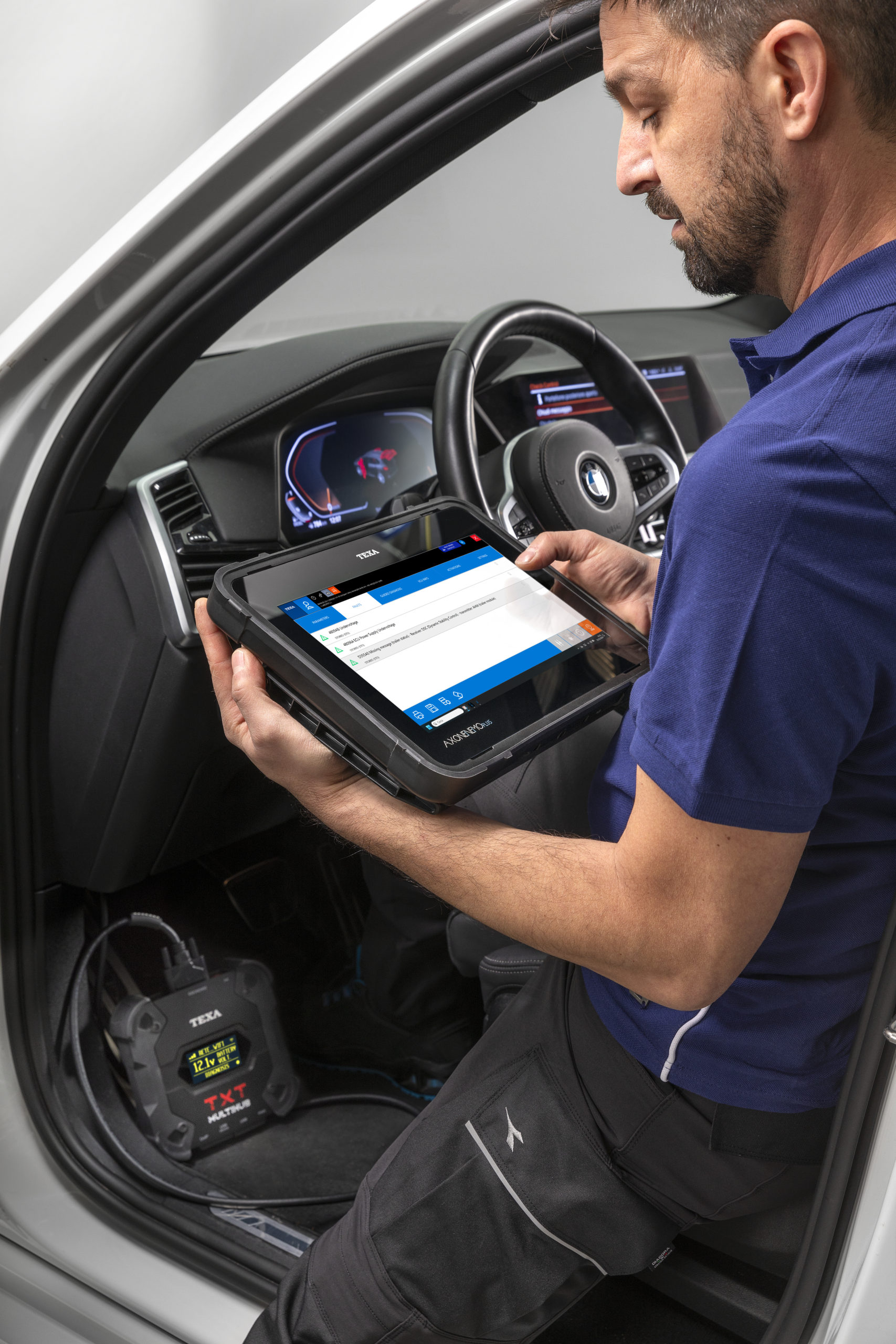

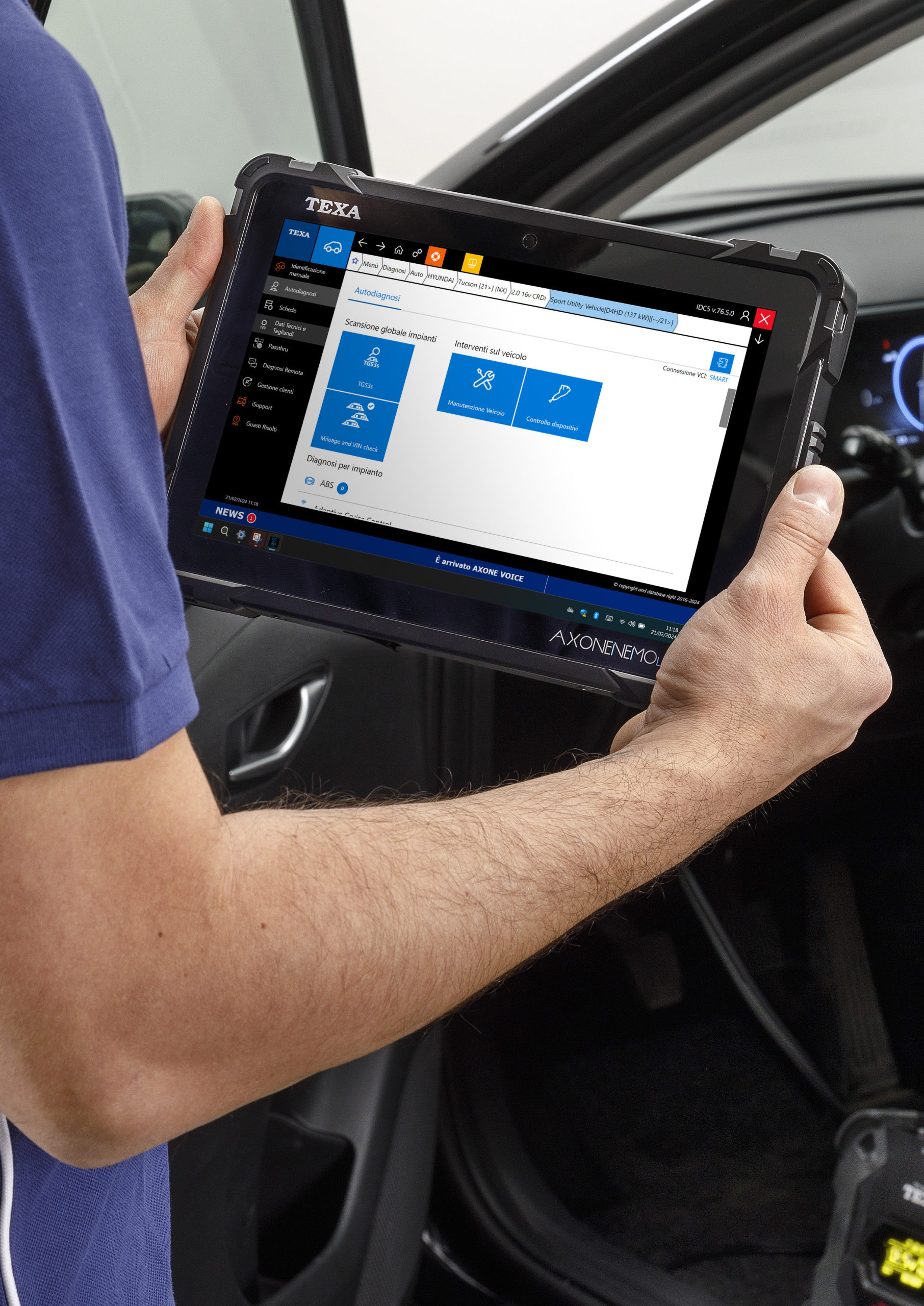

AXONE NEMO PLUS has a high-contrast ultra-wide 11.6-inch display, with a 1920×1080 pixel resolution. This solution offers a unique and complete viewpoint on the advanced diagnostic functions in the IDC5 software.

The wide screen guarantees an optimal display of the diagrams and technical data, providing full visual support for diagnostic and repair operations. The reactive touchscreen allows a smooth navigation between the applications, further simplifying the job.

Tailor-made for vehicle repairers, AXONE NEMO PLUS takes the diagnostic and repair experience to a higher level, providing clarity, reliability and uncompromising performance.

NEMO’s body, always
making the difference

The magnesium body, which has always been a feature of the NEMO display units, offers robustness, lightness, and a hassle-free use in the harshest work environments.
Moreover, its compliance with the MIL-STD 810G (transit drop test) military standard confirms its resistance also in extreme conditions.
These features, along with the careful design of its internal elements, guarantee an optimal
level of thermal dissipation, to manage complex and extended diagnostic sessions successfully.

Always by your side

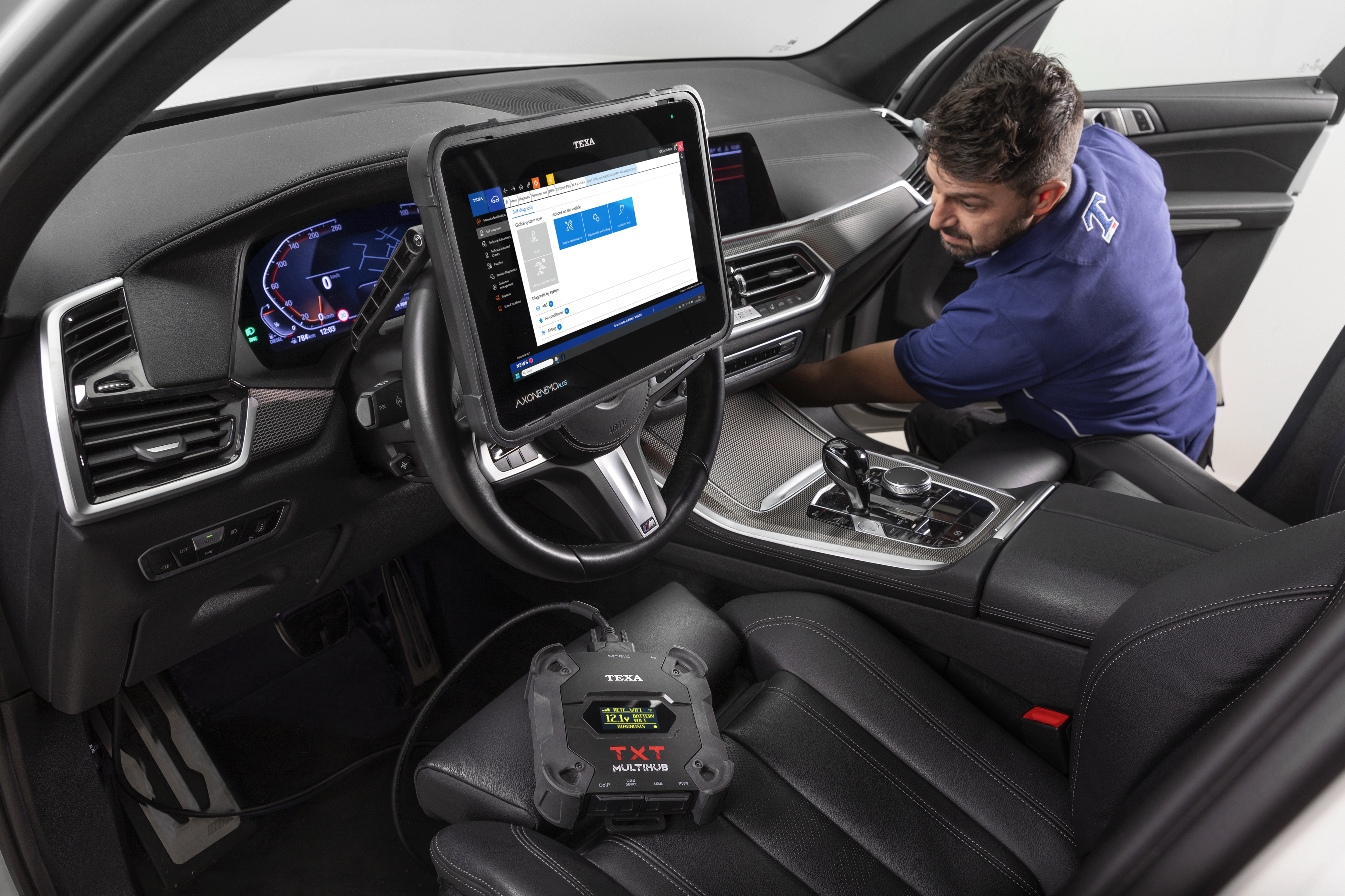

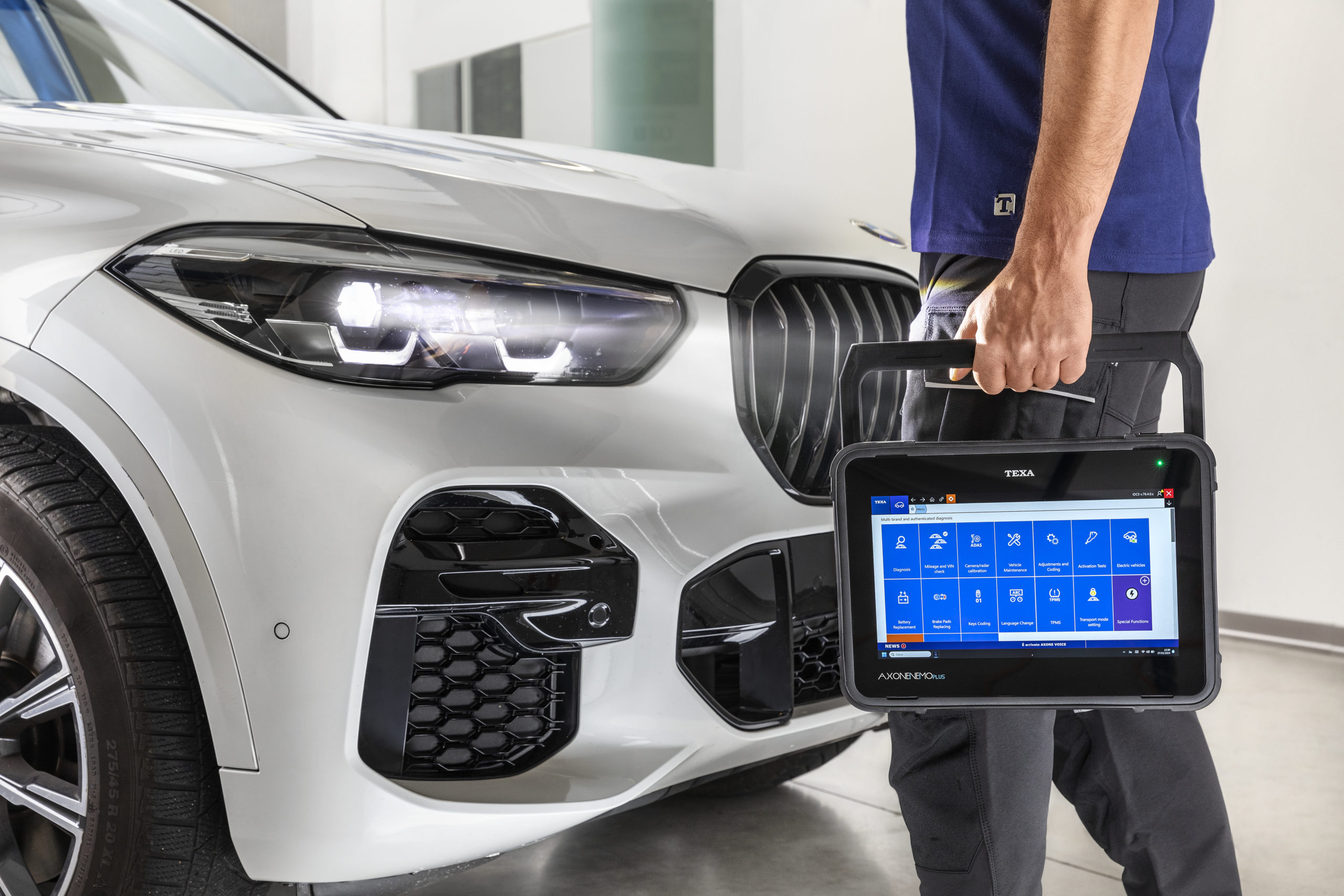

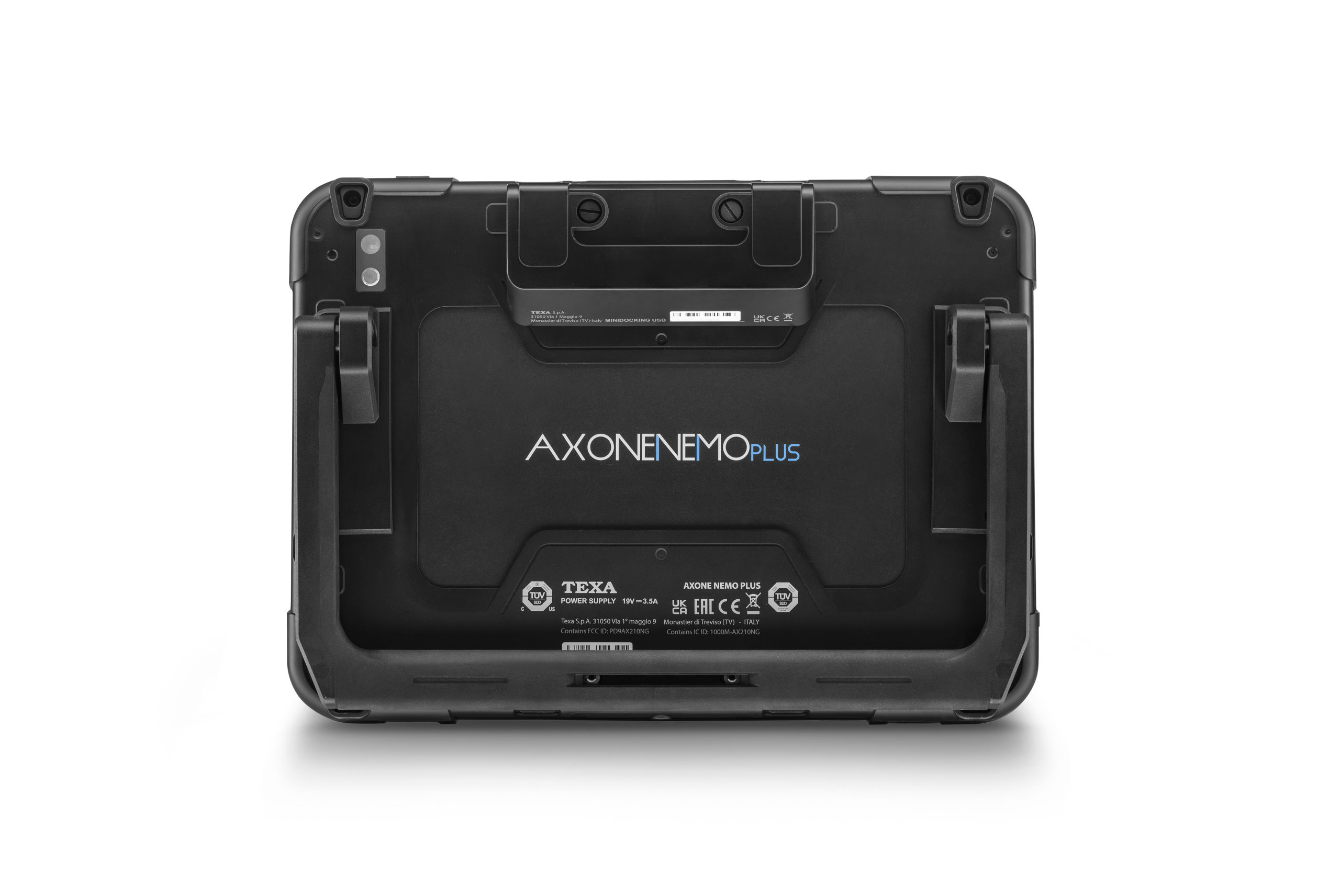

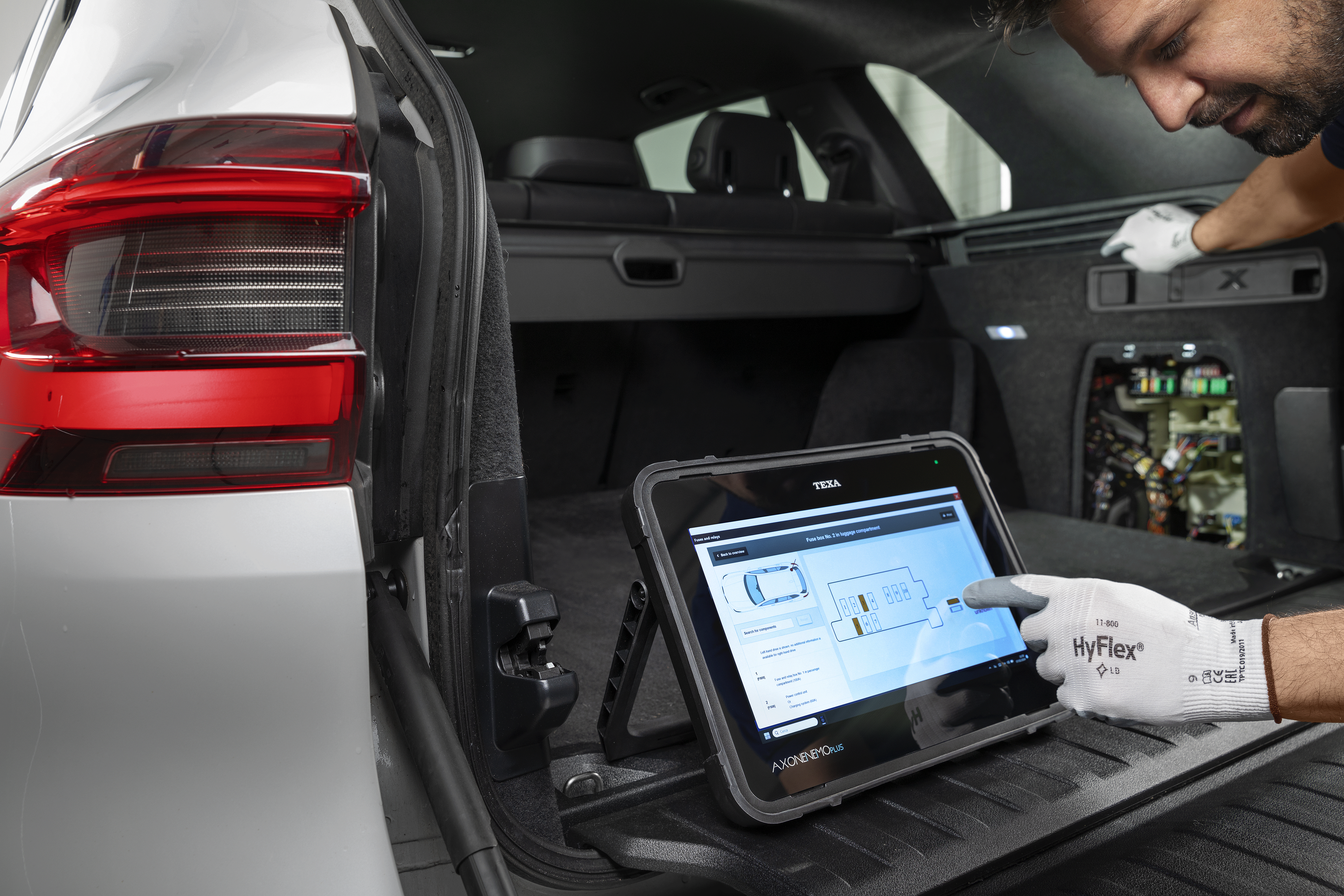

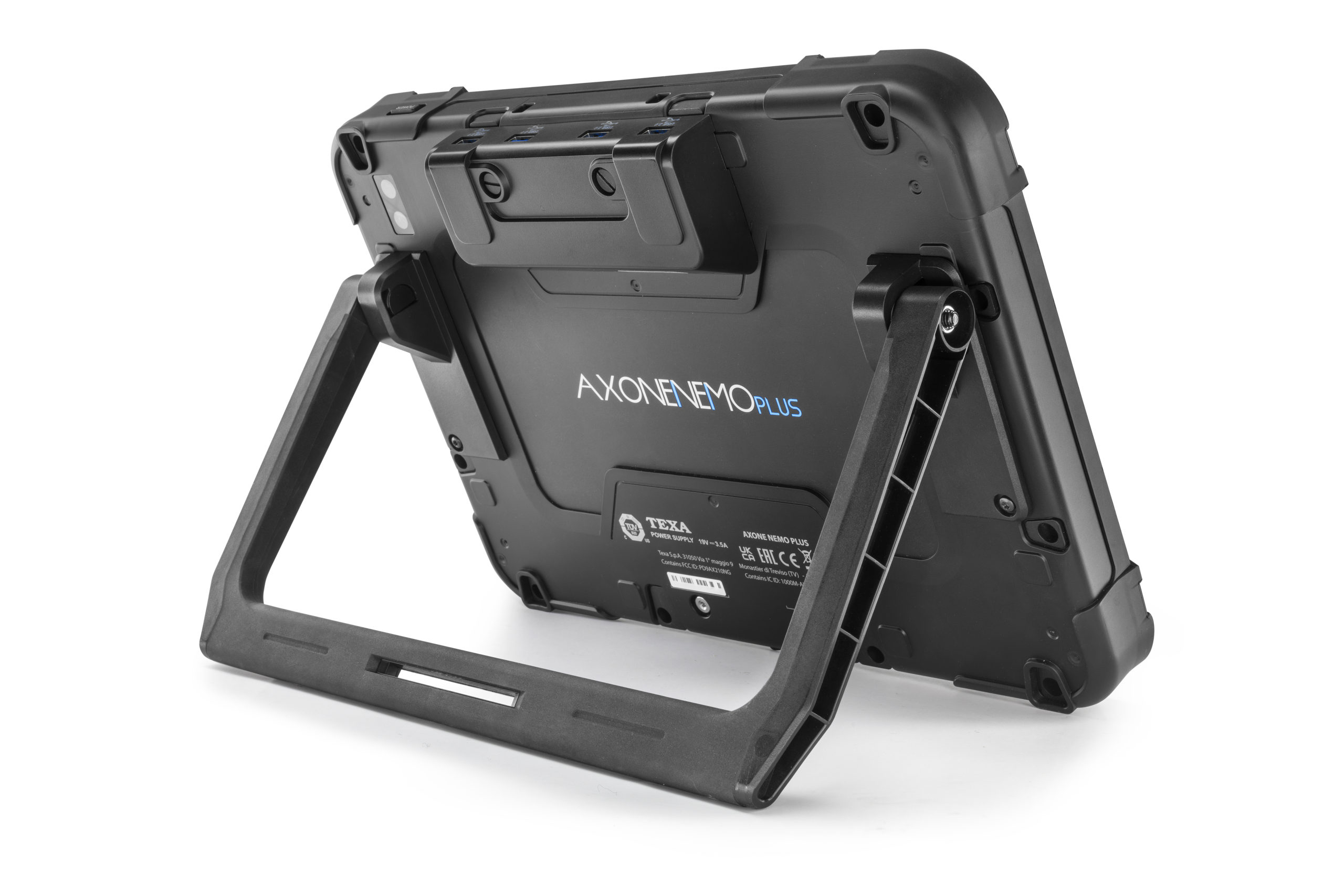

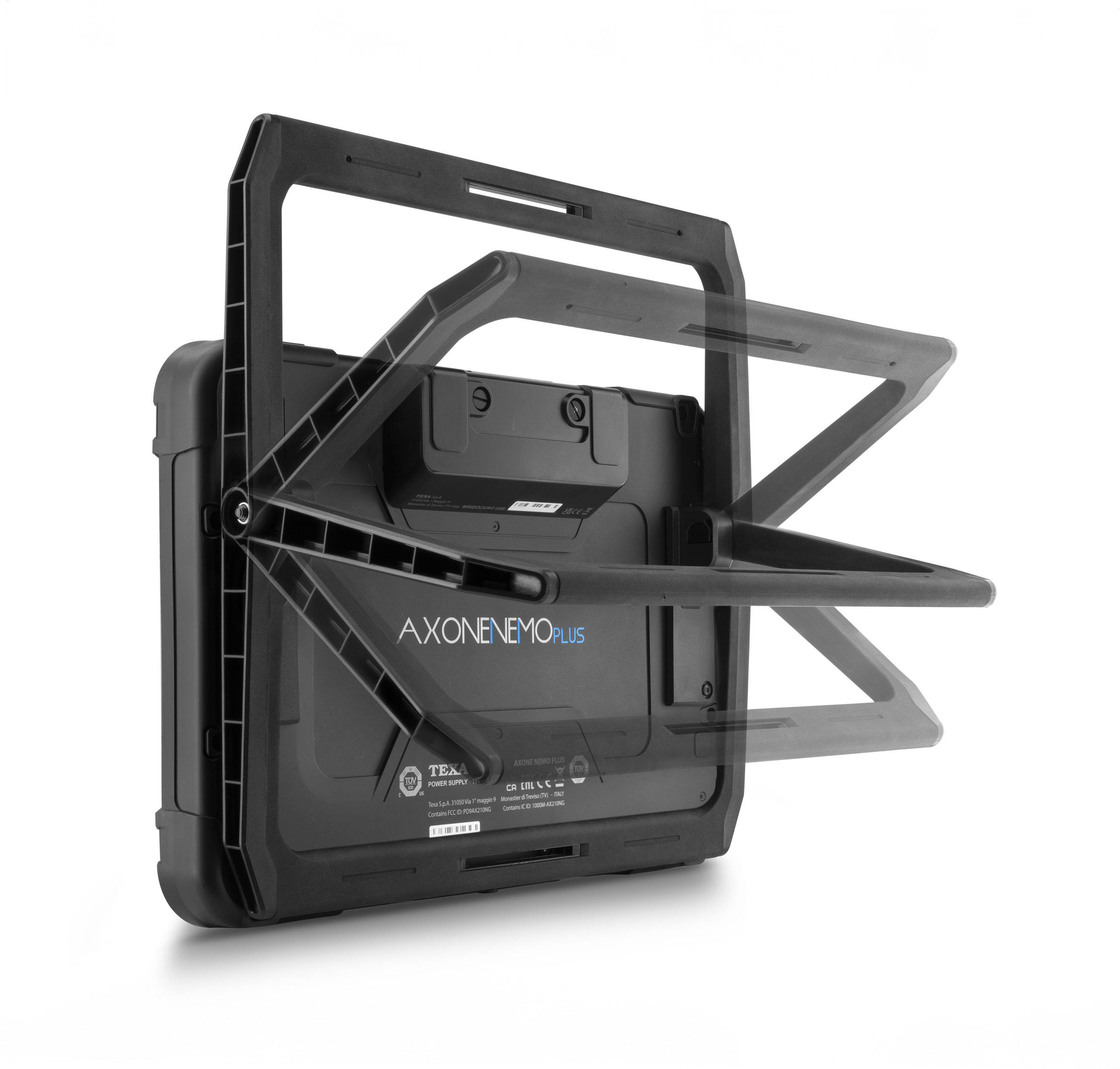

The ergonomic and adjustable handle on AXONE NEMO PLUS makes it easier to transport, allowing you to hook it on the vehicle’s steering wheel or to place it on uneven surfaces, always ensuring an optimal visibility of the display.

Robustness, practicality and speed.

Always a family matter

For over three decades, the AXONE line has been synonymous with reliability, thanks to advanced and robust solutions that are able to support
vehicle repairers in every aspect of their daily work.

The introduction of AXONE NEMO PLUS follows a long path of excellence, with an optimised design and a top-notch technology.

The legacy of the NEMO display units meets the strong tradition of AXONE, giving life to AXONE NEMO PLUS: a tool that is ready to support the industry operators, guaranteeing innovation in the diagnostics world.

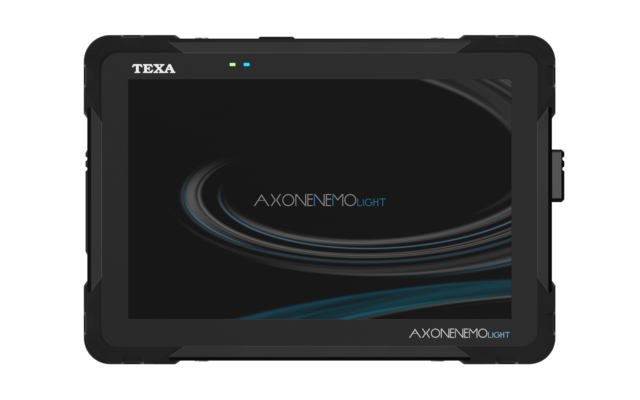

The AXONE line offers all technicians the possibility to choose the display unit that suits their needs the most.

Multi-brand, multi-environment

A single software for all environments

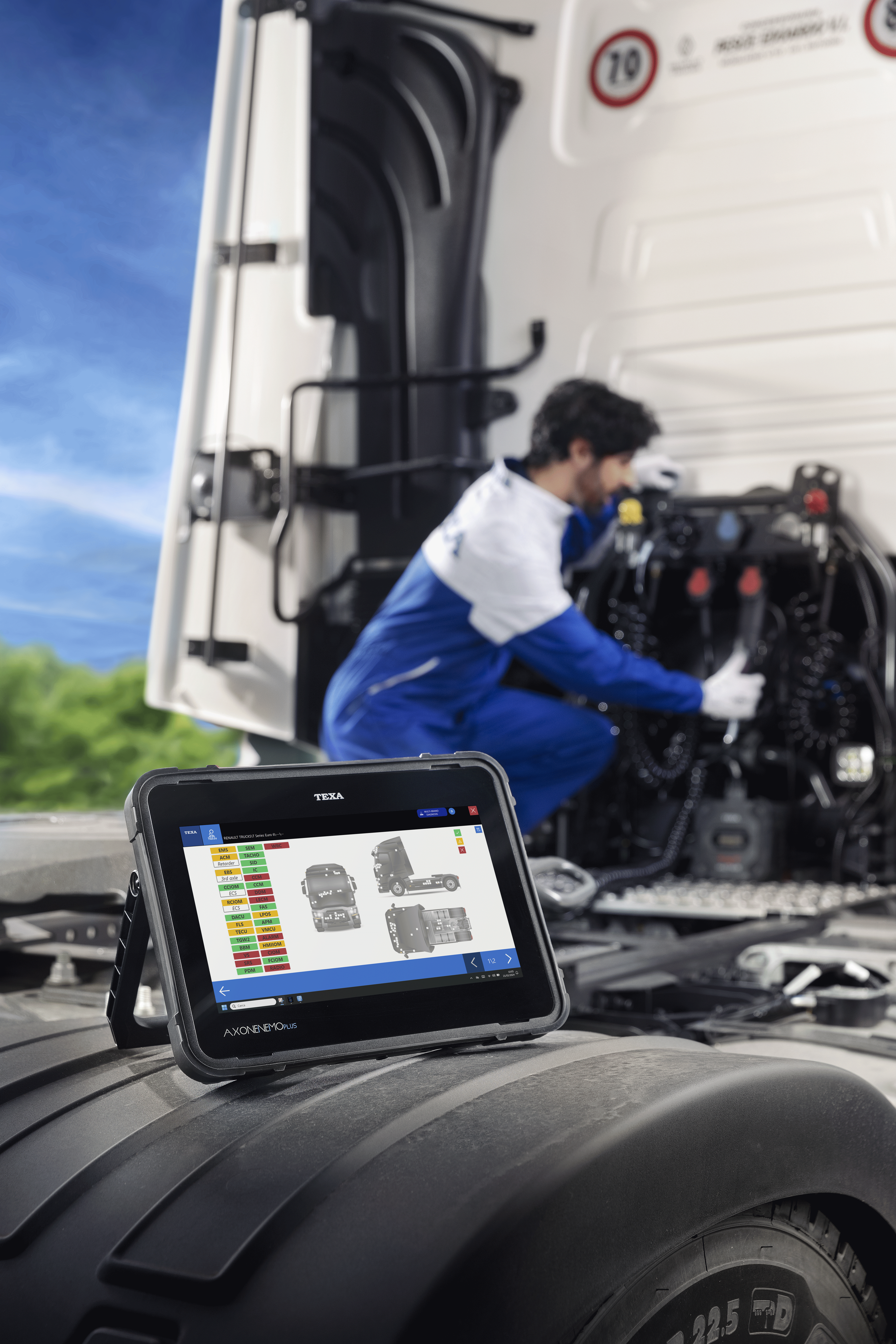

IDC5 was designed and developed following a multi environment logic to be used efficiently on cars, light commercial vehicles, trucks, agricultural and construction vehicles, bikes and boats.

AXONE NEMO PLUS offers the possibility to operate on any three environments simultaneously, guaranteeing
flexibility and efficiency in your daily work.

Customer Service

Team and technology at your service

Exclusive services that allow you to make the most of its potentiality and receive continuous support by the TEXA Call Center’s team* of specialists.

This way your workshop can always keep up with the latest automotive technologies.

An extra ally for the daily work of vehicle repairers.

* Verify the availability of SERVICER in your own country.

Technical features

MANUFACTURER
TEXA S.p.A.

MODEL
AXONE NEMO PLUS

PROCESSOR
Intel© N100 with optimised dissipation thanks to the magnesium body

RAM
16 GB DDR5

HARD DISK
250 GB SSD with ultra-fast PCIe technology

BIOS
64 Mbit Flash ROM, AMI BIOS

OPERATING SYSTEM
Windows™ 11 IoT Enterprise
Trusted Platform Mobile 2.0

VIDEO PERIPHERAL DEVICES (built-in)
High-contrast ultra-wide view angle display;
Dimensions: 11.6” QXGA;
Resolution: 1920×1080 pixel;
High-sensitivity touch controller;
Liquid bonding technology for screen protection and a higher resolution

AUDIO PERIPHERAL DEVICES (built-in):
2 speakers
1 MEMS digital microphone

WIRELESS PERIPHERAL DEVICES (built-in):
• Wi-Fi: 6E (802.11ax) new generation
• Bluetooth: 5.3 new generation

OTHER FUNCTIONS
± 8 g 3-axis digital accelerometer

I/O PERIPHERAL DEVICES

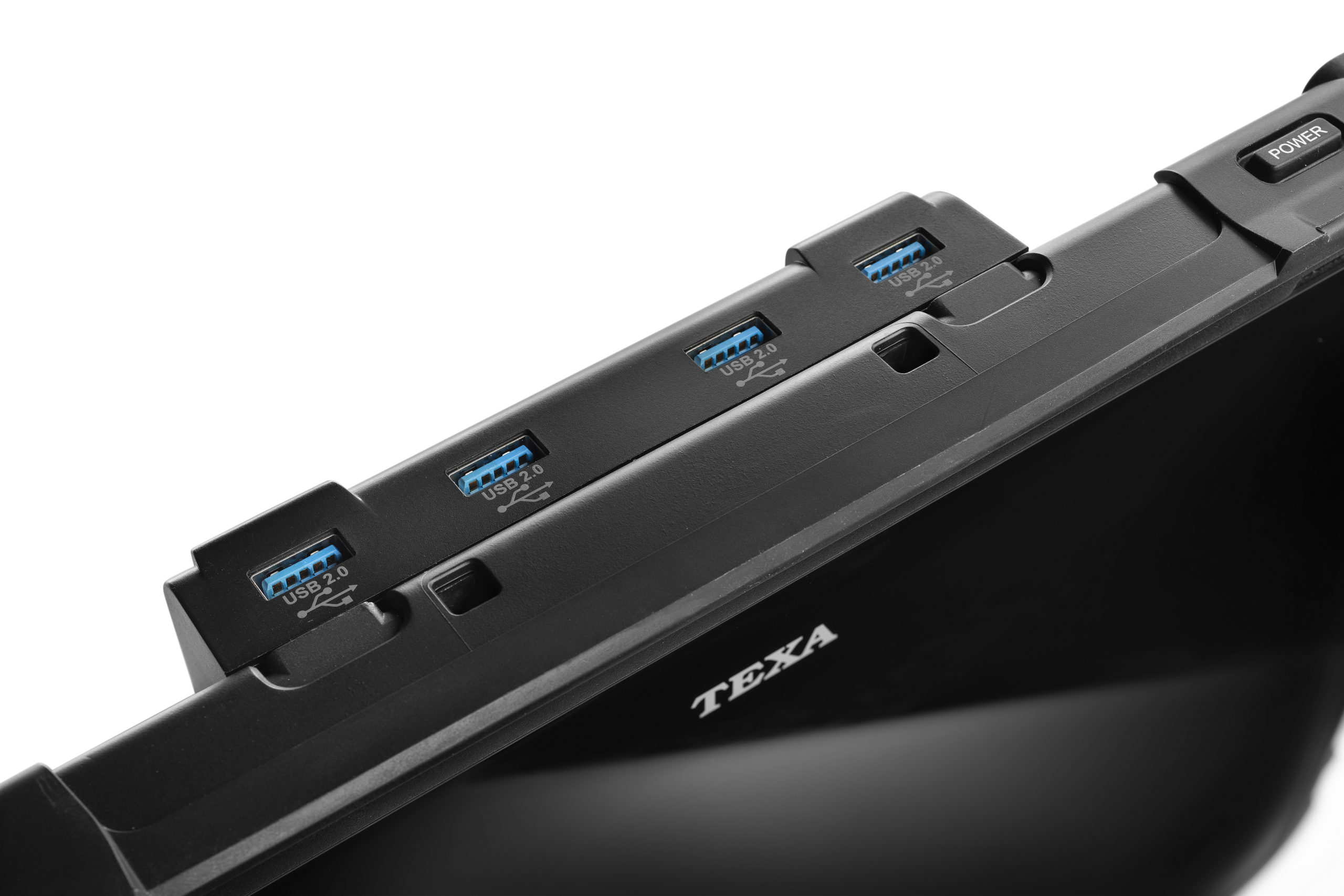

1 proprietary connector for hub with 4 USB Type-A ports

CAMERAS
2 Mpixel, LED flash

LEDs
1 green LED (system status)
1 red LED (charging / power supply status)

ROBUSTNESS
Rugged design compliant with MIL- STD 810G (Transit Drop Test)

INTERNAL BATTERY
Rechargeable Li-ion 7,2 Vdc; 50,3 Wh; 6990 mAh long-lasting

EXTERNAL POWER SUPPLY
From external power adapter
• Input: 100-240 Vac; 1,5 A;47-63 Hz
• Output: 19 V – 3,7 A

ABSORPTION
12 Vdc (4 Adc) – 24 Vdc (2 Adc)

OPERATING TEMPERATURE
0 ÷ 40 °C
