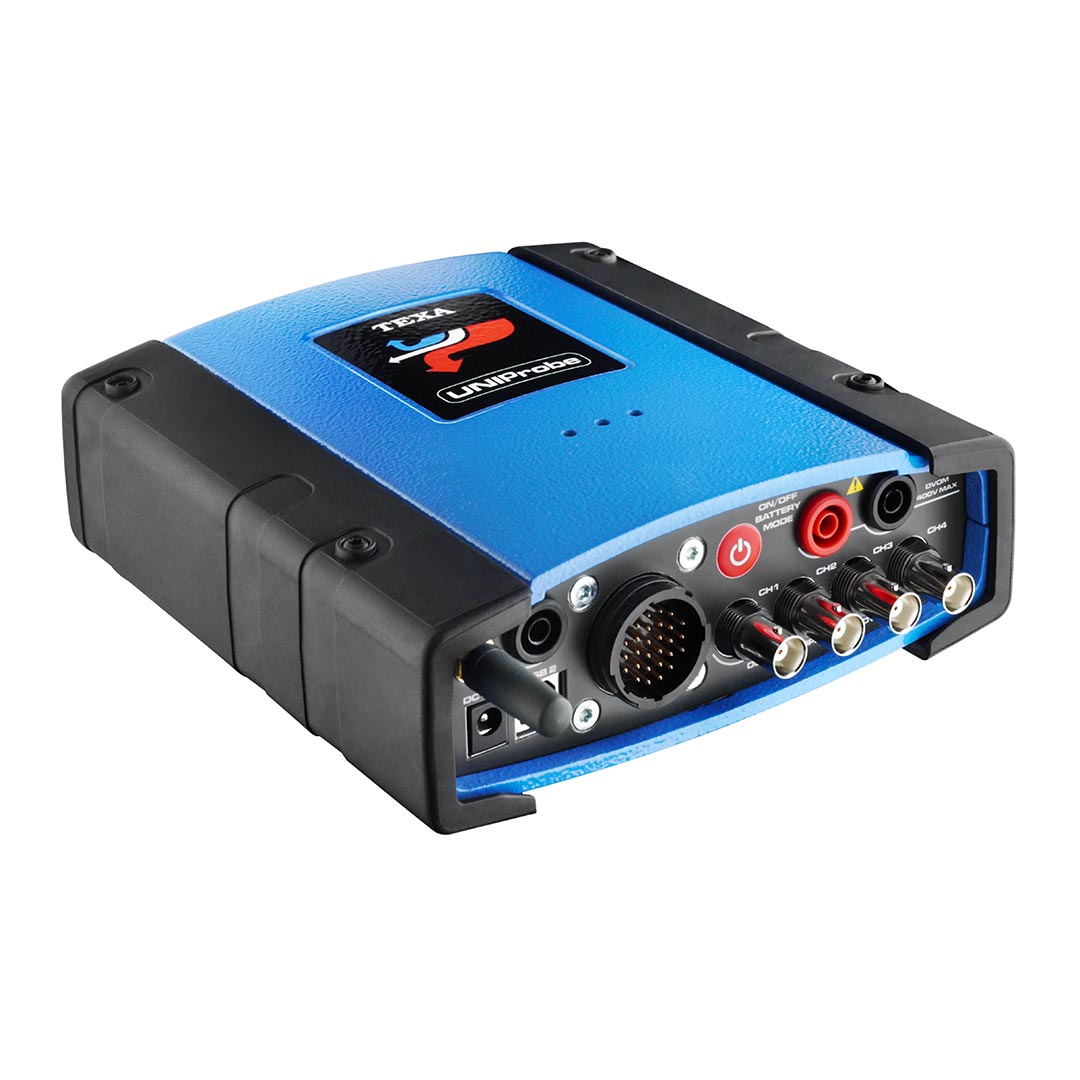

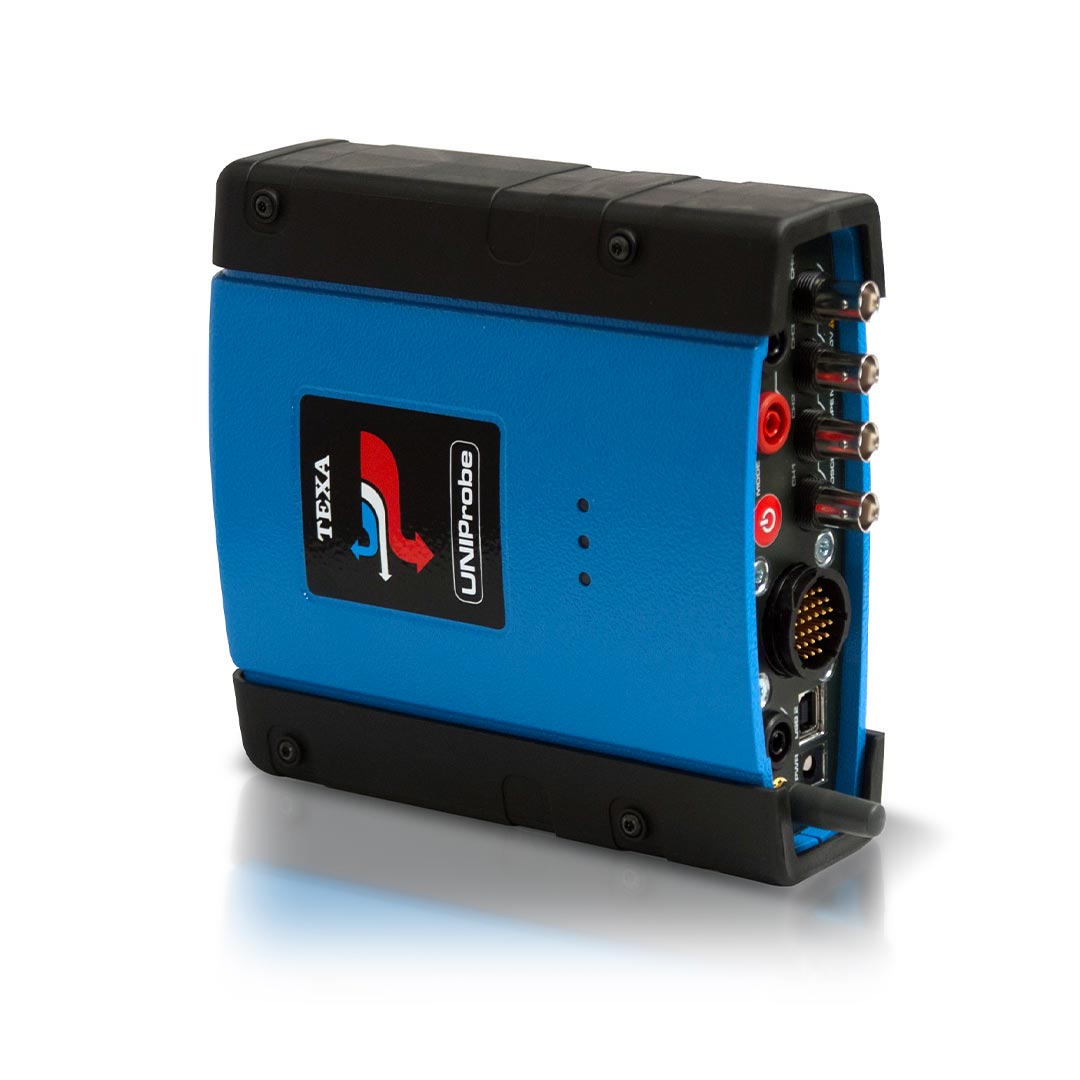

UNIProbe

six instruments in one unit

UNIPROBE

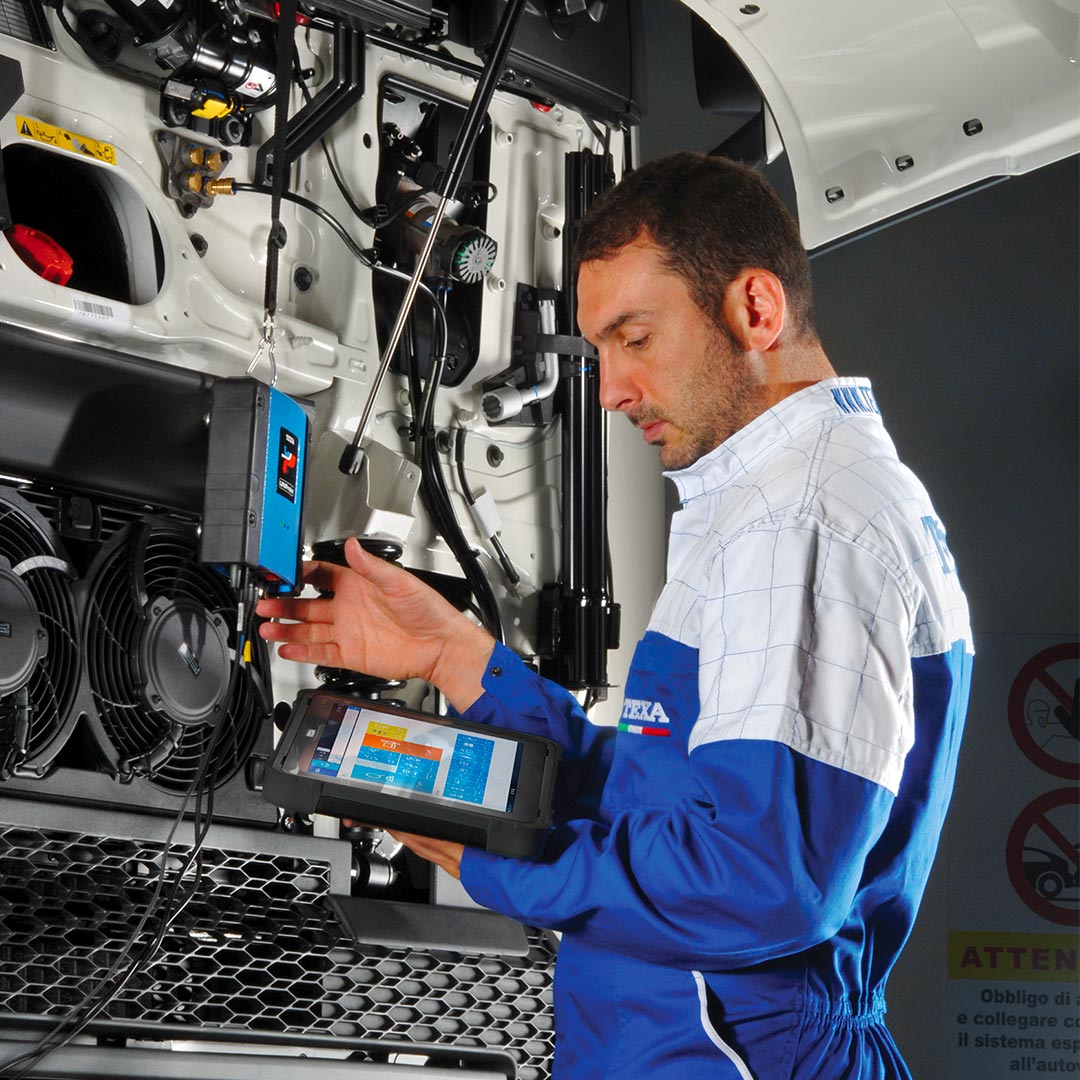

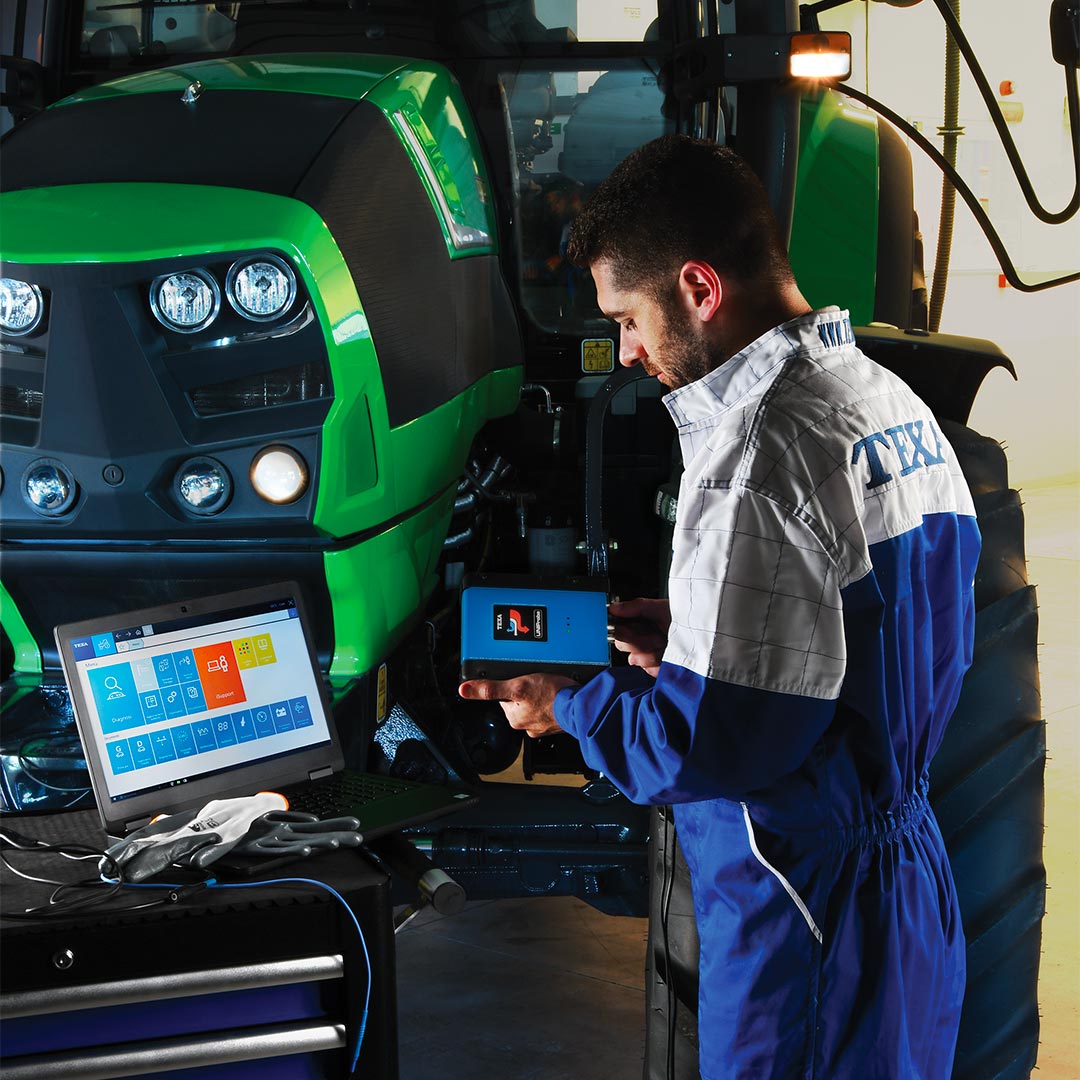

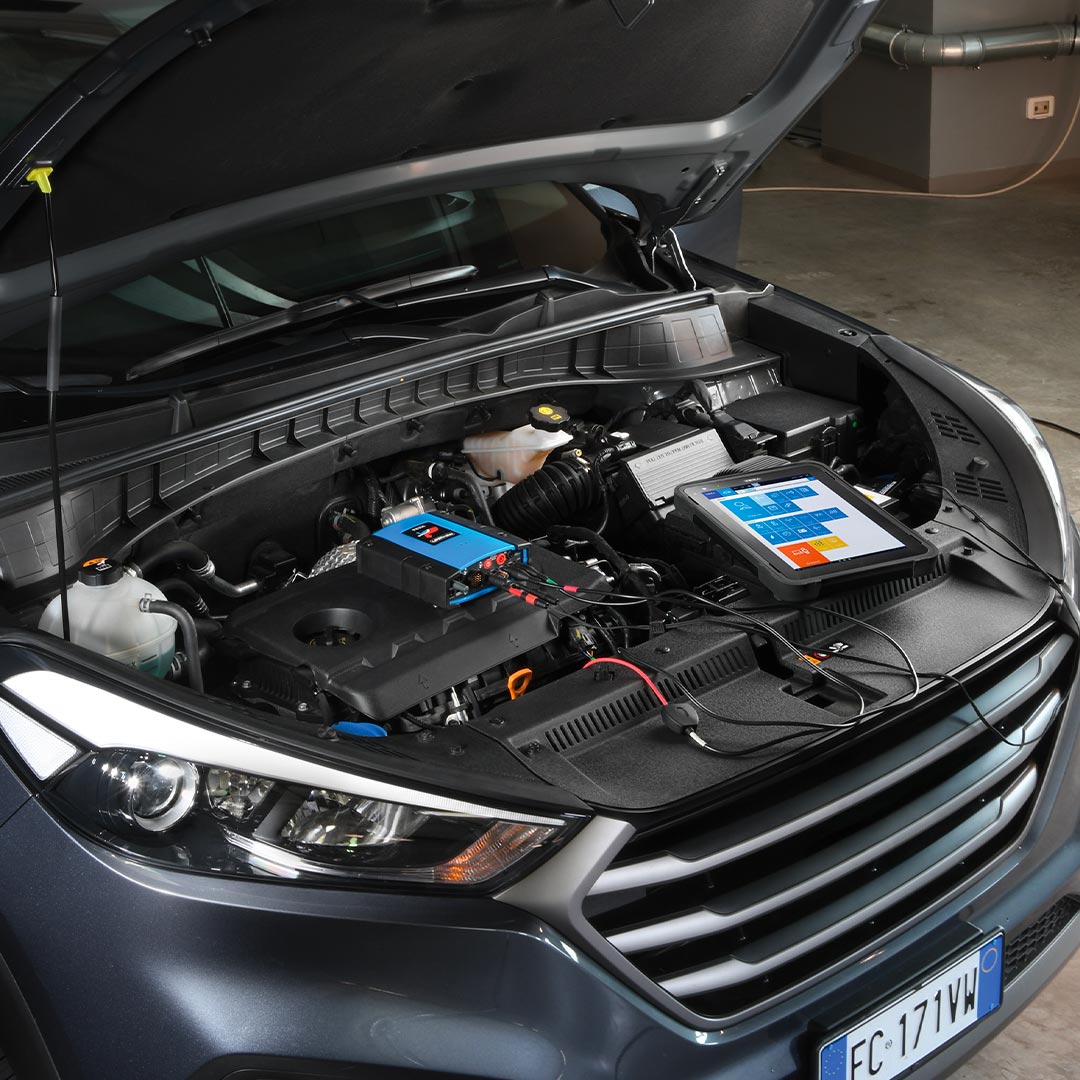

The UNIProbe is an device for analogue and digital type measurements; the best and most complete solution for all traditional diagnosis tests. The UNIProbe allows for the complete multi-make diagnosis and can intervene on cars, motorcycles, scooters, quad bikes and boats, as well as on light and heavy commercial vehicles, coaches and agricultural vehicles.

The UNIProbe communicates with all TEXA display units or with a Windows PC with USB connection or through Bluetooth technology, allowing the technician absolute freedom of movement around the vehicle and in the workshop. It's also fitted with an interior lithium battery that can guarantee exceptional autonomy. The UNIProbe reflects the TEXA philosophy on "two unit solutions" to the full, looking to completely eliminate wires within the workshop.

I AM INTERESTED
PLEASE CONTACT ME FOR A DEMONSTRATION!

IMPRESSIVE FUNCTIONALITY

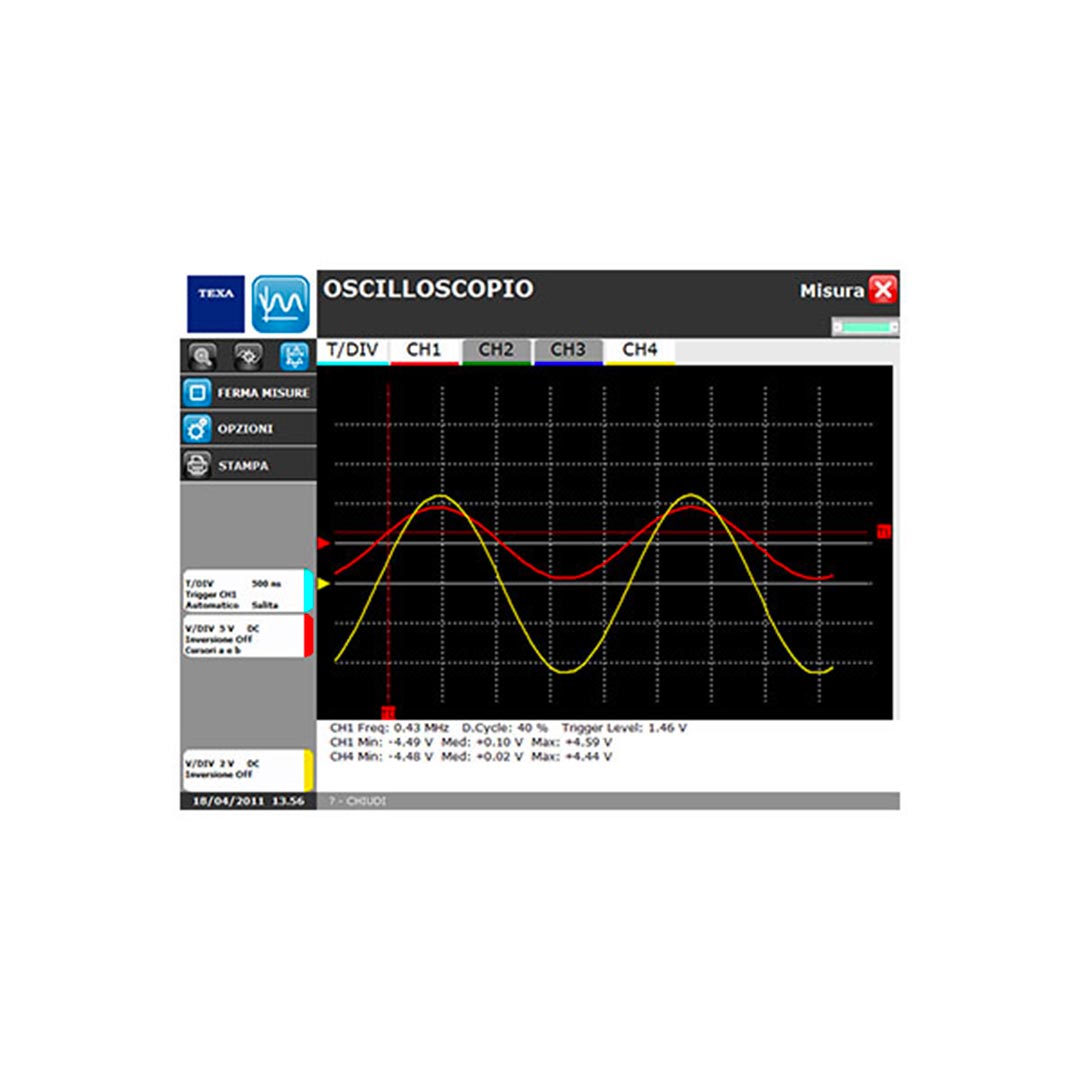

UNIProbe incorporates 6 different instruments in the one unit, including an oscilloscope with four independent channels that can take accurate and professional measurements from voltage sensors and current clamps.

UNIProbe lets you test batteries, starting and charging systems, perform electrical tests on CAN networks, measure voltage and resistance using a built-in multimeter, and measure fuel pressure with an external electronic sensor.

You can even use a signal generator to simulate the PWM signals produced by sensors and the PWM power signals that drive electromechanical actuators like solenoid valves and common rail pressure regulators.

MEASUREMENT SYSTEM SOFTWARE

Easy access to the amazing functions of UNIProbe is ensured by MSS (Measurement System Software), developed by TEXA especially for this device, and by the complete IDC4E software Platform.

The SIV (Signal Information Viewing) function deserves a special mention. This uses a software algorithm developed by TEXA specifically to compare acquired data with values recorded in an internal database. Unusual signals can therefore be identified instantly, making your work faster and easier than ever.



TEXA customer services

TEXA has always supported its tools with a wide range of services. These services keep TEXA tools up to date with the latest innovations in automotive technology, provide practical troubleshooting assistance and guarantee mechanics all-round competence in their field.

The TEXPACK annual contract provides updates for all environments, while TEX@info provides access to the latest technical bulletins, the “SOLVED PROBLEMS” database powered by Google, the Call Centre and iSupport.

TEXA also runs a virtual store that can be accessed directly from TEXA software, in which users can request the activation of a large number of apps for the world of vehicle diagnostics and repair.

Click the link below to find out more about TEXA’s services.

ENTER THE WORLD OF TEXA



TECHNICAL SPECIFICATIONS

POWER SUPPLY
8 - 32 VDC

INTERNAL BATTERY RECHARGE VOLTAGE
10 - 32 VDC, built-in 7.4 V, 1Ah lithium battery

BATTERY AUTONOMY
up to 5 hours

MAXIMUM CURRENT DRAW
1,2 A at 12 V

ENVIRONMENTAL
Operating temperature: 0 ÷ +45°C
Storage temperature: - 20 °C ÷ 60 °C
Operating relative humidity: 10 % ÷ 80 % non-condensing

DIMENSIONS
155x178x55 mm (excluding Bluetooth antenna)

WEIGHT
1,2 kg.

OSCILLOSCOPE

CHANNELS
4 independent input channels with analogue bandwidth of 10 MHz (-3 dB); sampling rate 20MSamples/sec at 10 bit with 1 or 2 channels active, 10 MSamples/sec at 10 bit with 3 or 4 channels active

MAX INPUT VOLTAGE
+/- 50 Vmax, AC or DC couplingbr

VERTICAL SCALE FOR EACH CHANNEL
from 20 mV/Div to 50 V/Div

HORIZONTAL SCALE
from 500 ns/Div to 5s/Div

TRIGGER
source CH1, CH2, CH3, CH4, selectable, trigger delay.

DISPLAY MODE
Normal, Auto, Single shot

MEASUREMENT OF FOLLOWING VALUES
frequency, period, RMS, Vmax, Vmin.

MULTIMETER

GALVANIC INSULATION
up to 1 kV for safe measurements

VOLTAGE MEASUREMENTS
Maximum measurable voltage: ± 400VDC, input impedance 4.7 MΩ, 3 digit resolution; three value ranges, with automatic or manual scale selection: 0-6 V, 6-60 V, 60-400 V AC/DC

RESISTANCE MEASUREMENTS
Three value ranges, with automatic or manual scale selection: 0-1000 Ω, 1-100 kΩ, 100 - 10 MΩ, resolution: 3 digits

CURRENT MEASUREMENTS
Current measurements performed by connecting TEXA “BICOR” series probes to the jacks on the front of the tool

TNET FUNCTION
Troubleshooting on CAN ISO11898, ISO11519 networks

BPP FUNCTION
Troubleshooting on starting systems Voltage measurements: DC up to 50VDC

ELECTROMAGNETIC COMPATIBILITY
ETSI EN 301 489-17 V 1.2.1 EN 6/326/1
